System Wiring Diagram
System Wiring Diagram

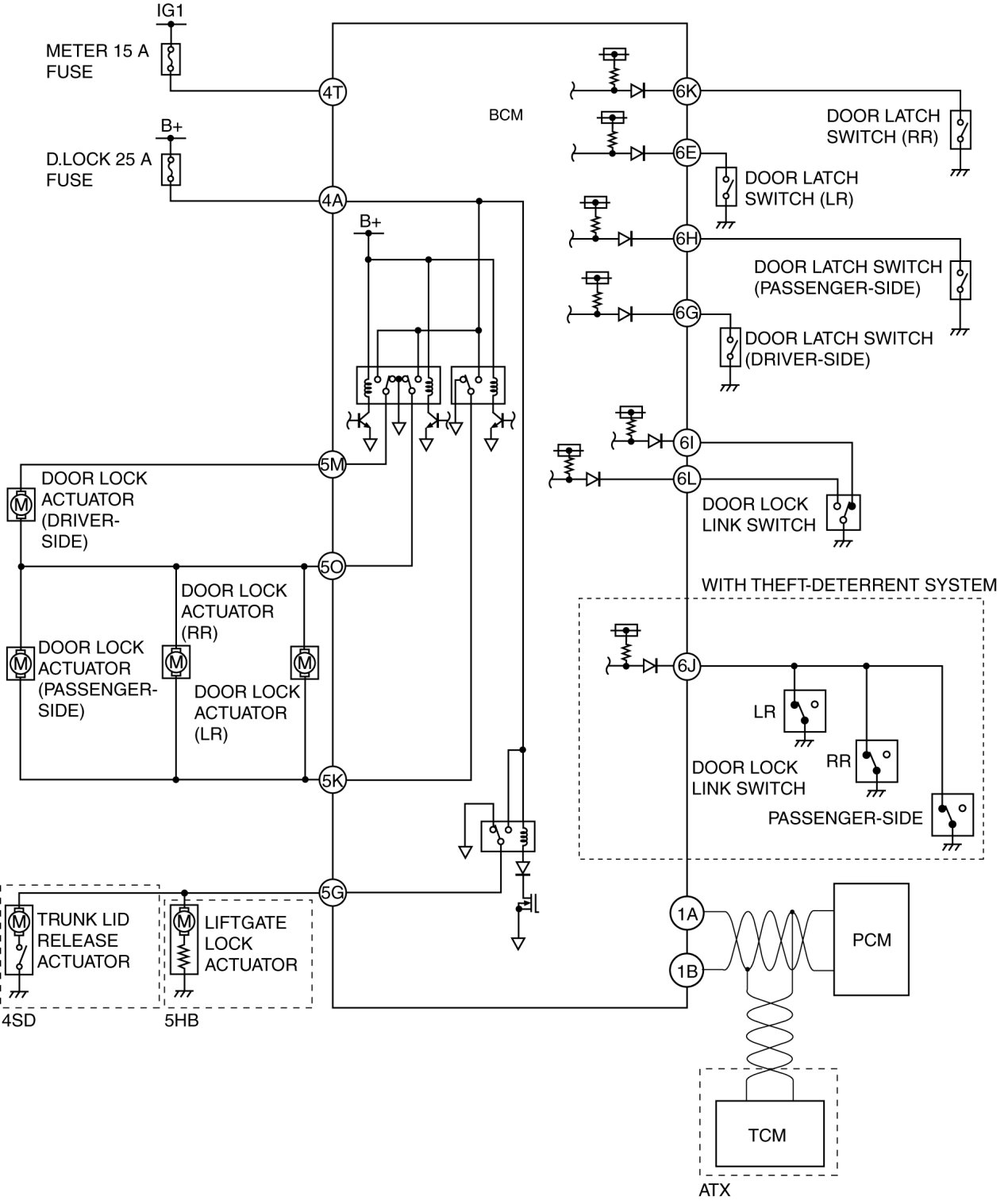

AUTO DOOR LOCK SYSTEM WIRING DIAGRAM [AUTO DOOR LOCK SYSTEM]
