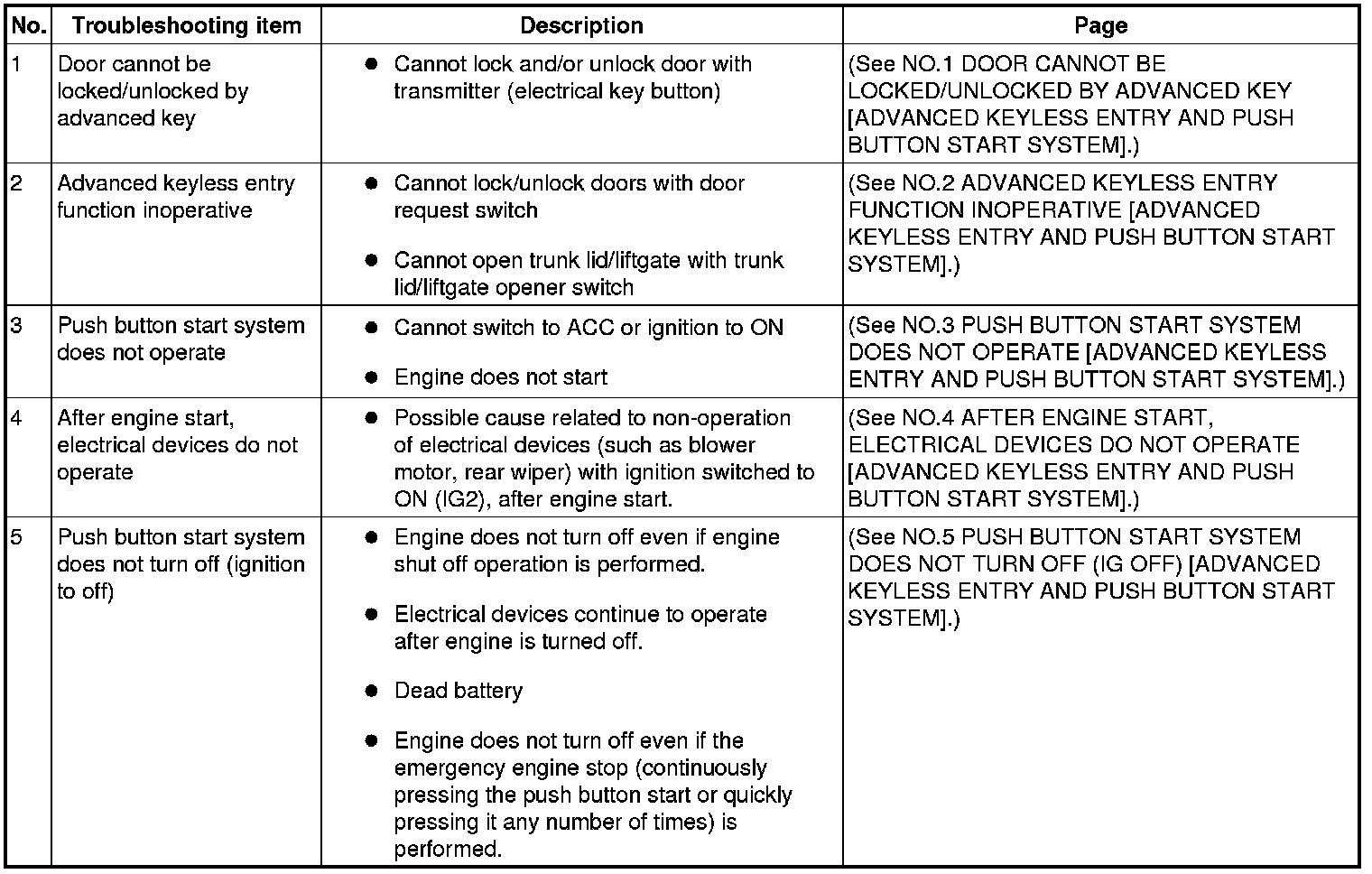

Symptom Troubleshooting Chart [Advanced Keyless Entry And Push Button Start System]

SYMPTOM TROUBLESHOOTING CHART [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

NOTE:
- The KEY indicator light (green) flashes for approximately 30 seconds to indicate that the remaining battery power of the advanced key is low. Replace with a new battery before the advanced key becomes unusable.
- Under the following conditions, the KEY warning light (red) flashes to inform the driver that the push button start will not switch to ACC even if it is pressed from off.

- The advanced key battery is dead.
- The advanced key is not within operational range.
- The advanced key is placed in areas where it is difficult for the system to detect the signal.
- A key from another manufacturer similar to the advanced key is in the operational range.
