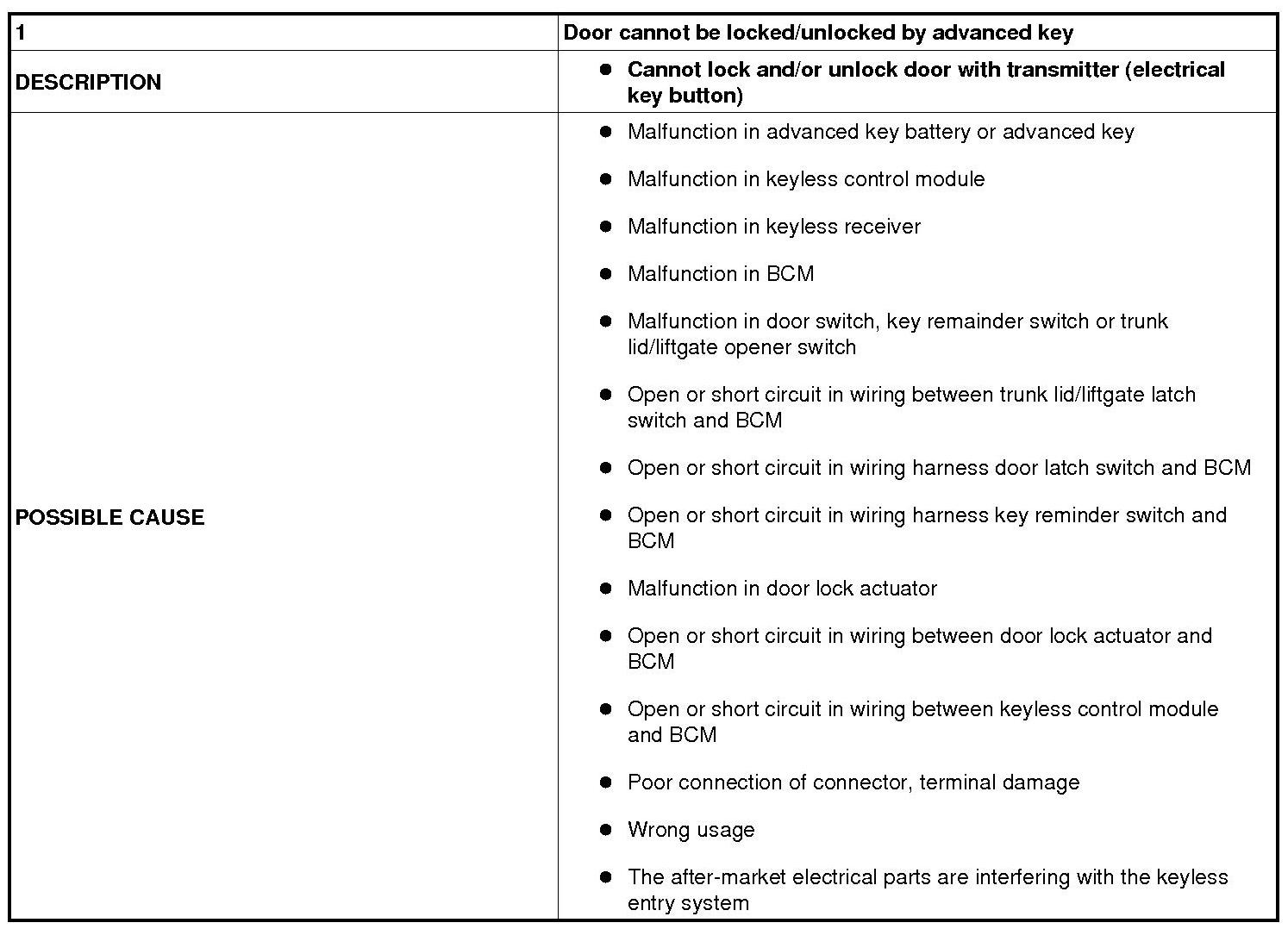

No. 1 Door Cannot Be Locked/Unlocked By Advanced Key





NO.1 DOOR CANNOT BE LOCKED/UNLOCKED BY ADVANCED KEY [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

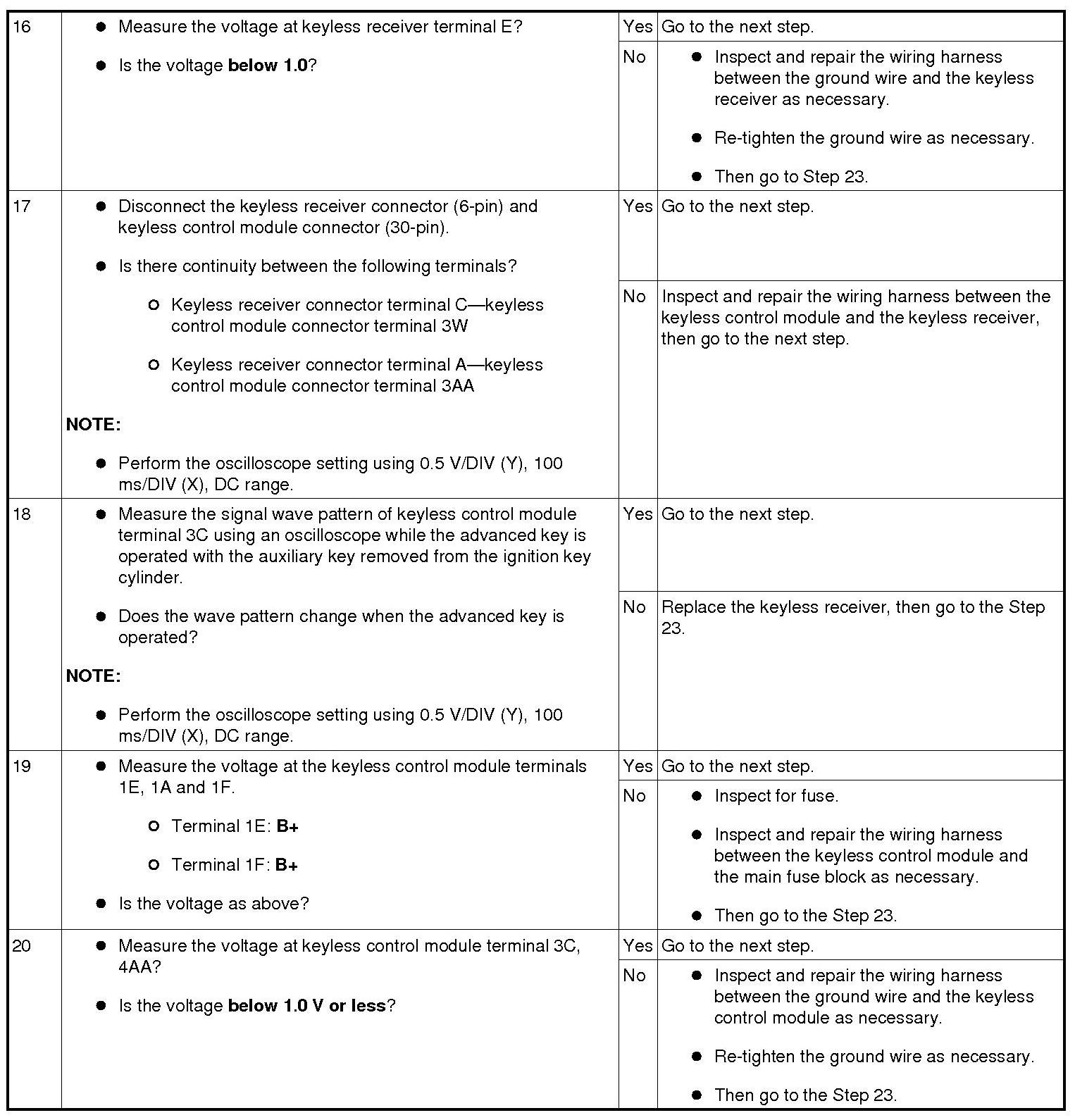

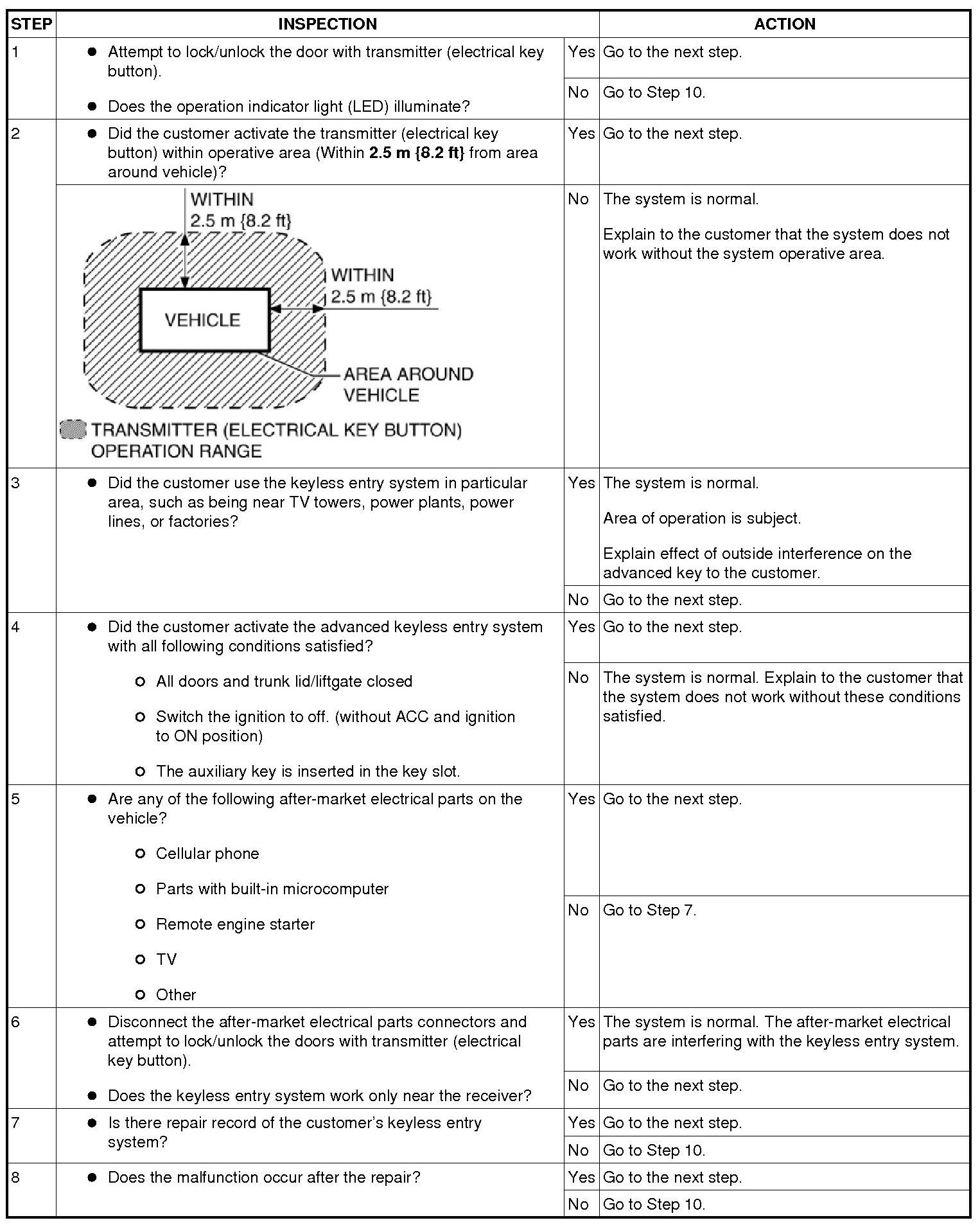

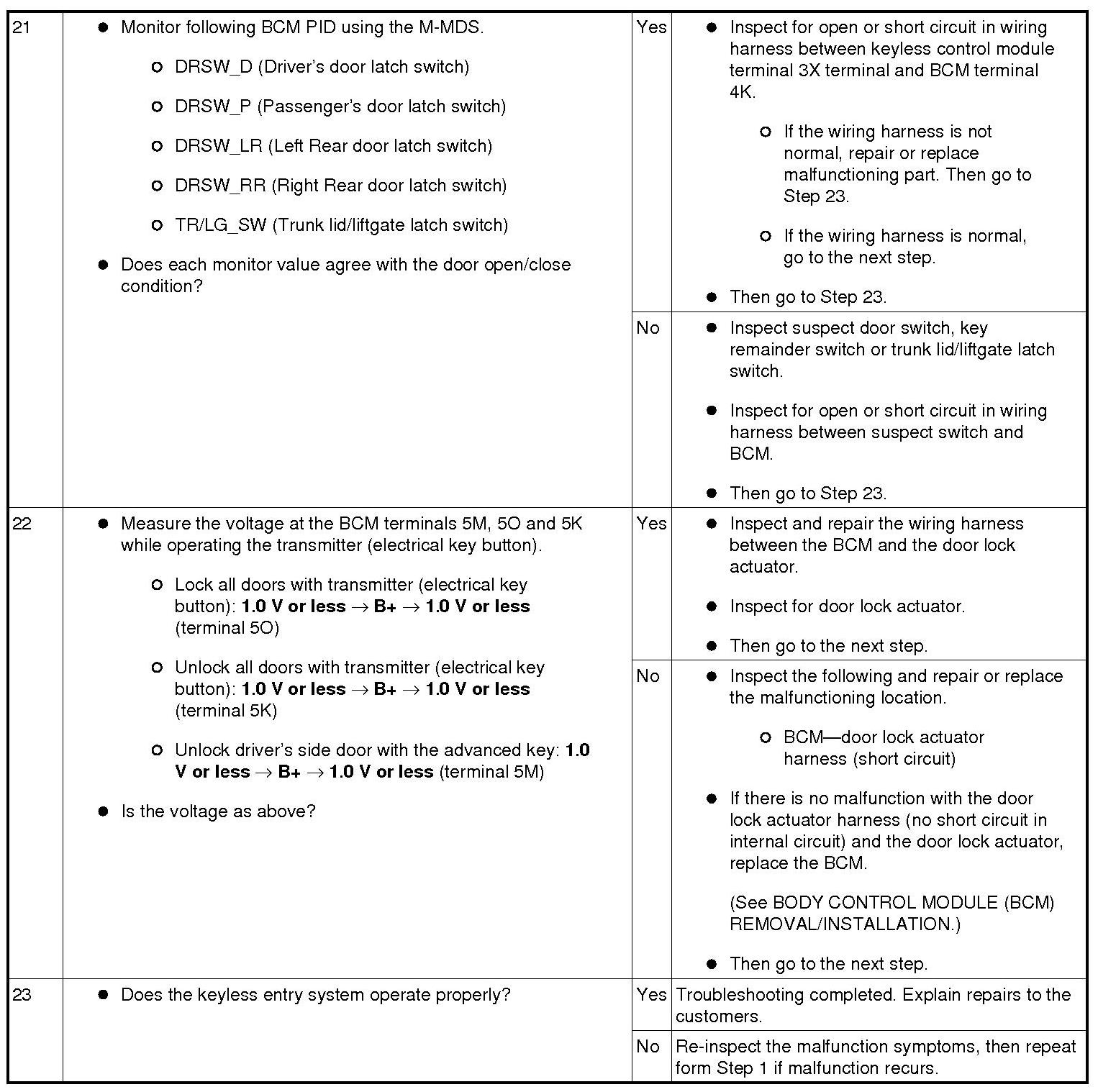

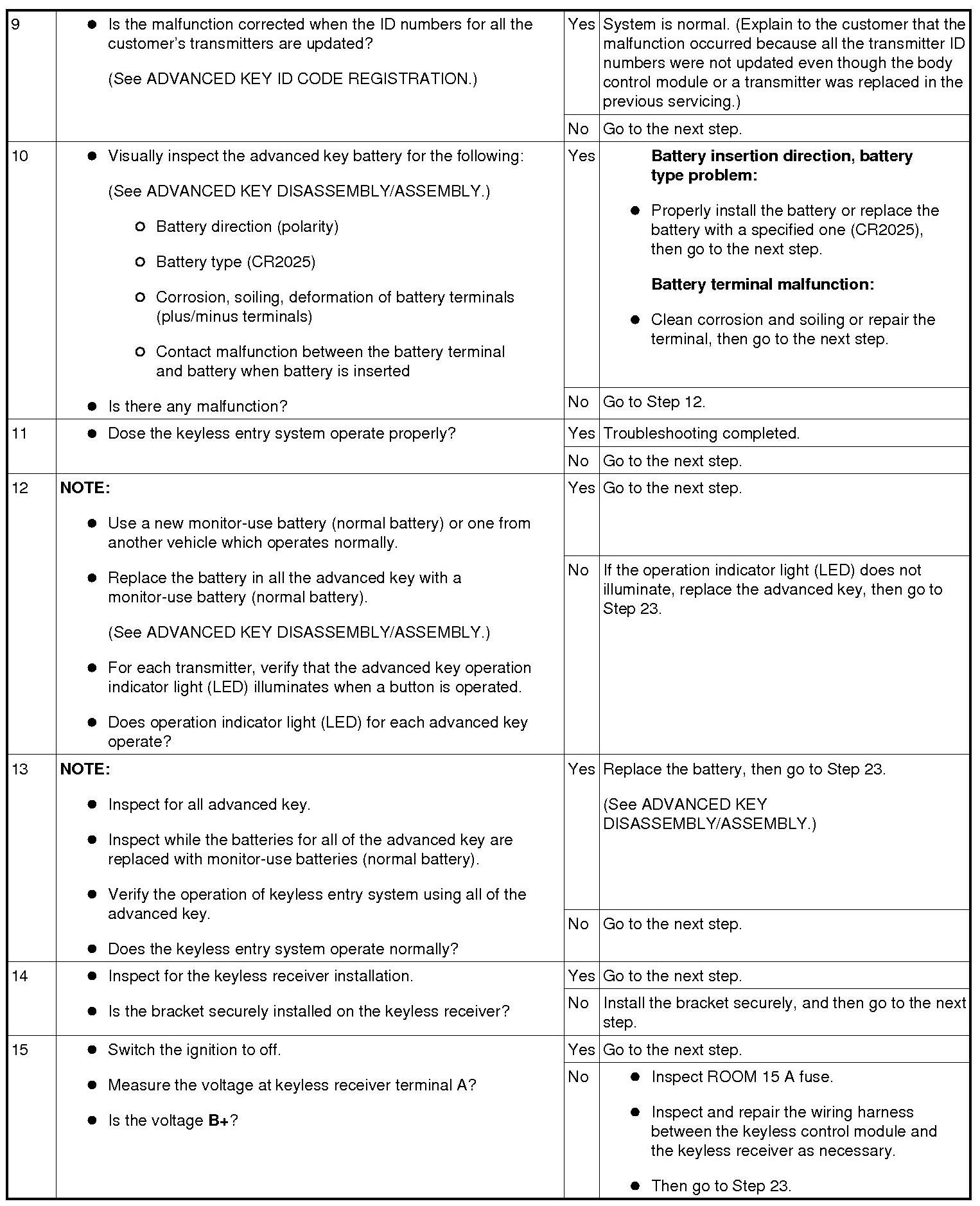

Diagnostic procedure
