Trunk / Liftgate Release Lever: Service and Repair

TRUNK LID OPENER LEVER REMOVAL/INSTALLATION

1. Remove the front scuff plate (LH). Front Scuff Plate Removal/Installation

2. Remove the front side trim (LH). Front Side Trim Removal/Installation

3. Remove the fuel-filler lid opener bezel. Fuel-Filler Lid Opener Bezel Removal/Installation

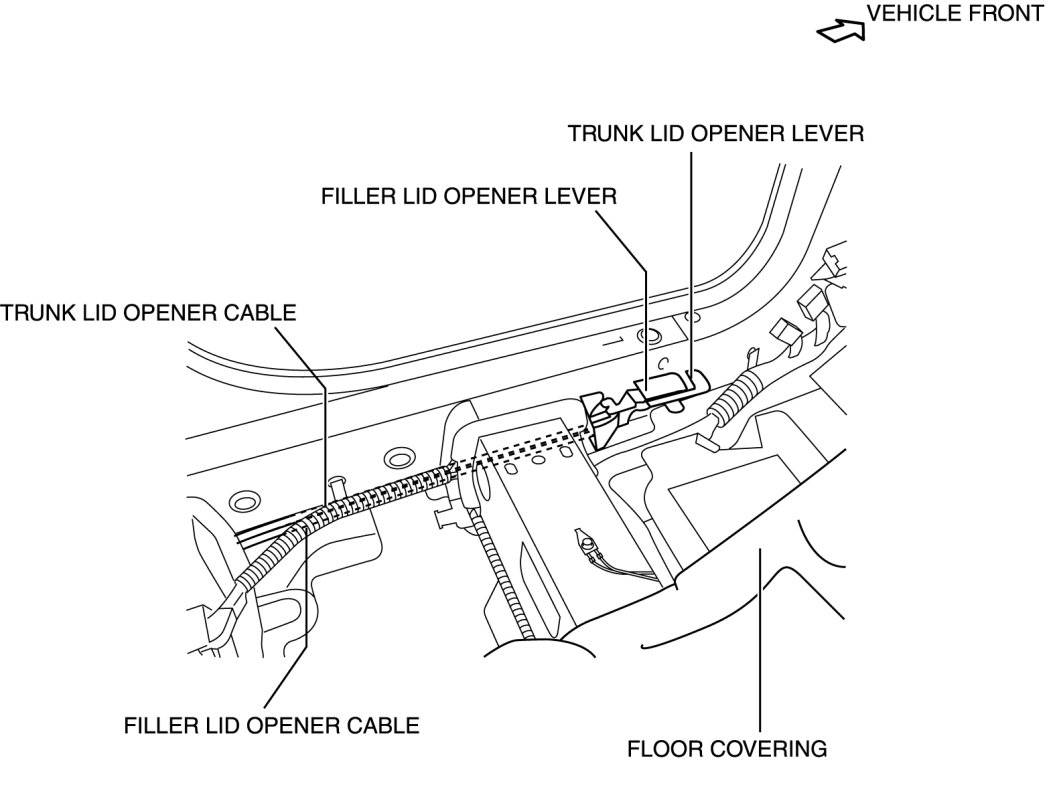

4. Partially peel back the floor covering.

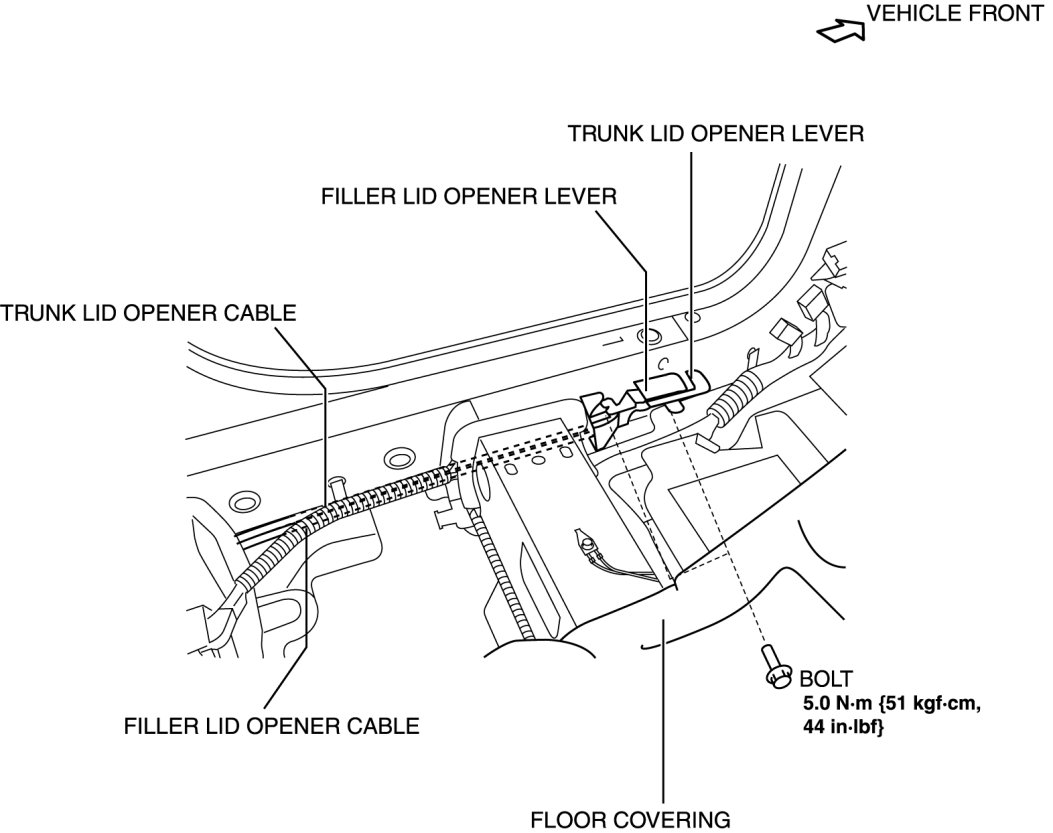

5. Remove the bolts.






6. Disconnect the cable and trunk lid opener lever.

7. Install in the reverse order of removal.
