Liftgate Latch And Lock Actuator Removal/Installation

LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Liftgate upper trim

b. Liftgate side trim

c. Liftgate lower trim

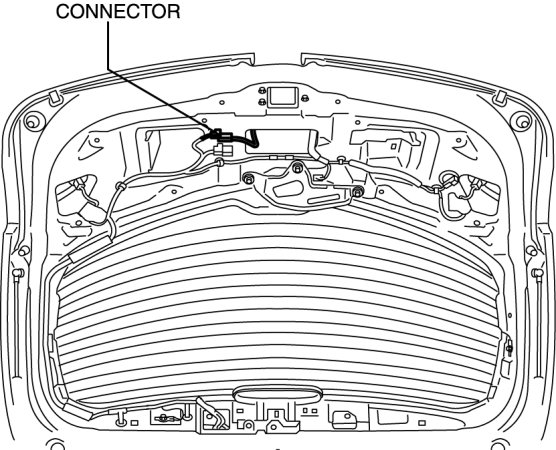

3. Disconnect the connector.






4. Remove the bolts.






5. Remove the liftgate latch and lock actuator.

6. Install in the reverse order of removal.
