Trunk / Liftgate Latch Release Cable: Service and Repair

TRUNK LID OPENER CABLE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Front seat (LH) Removal and Replacement

b. Front scuff plate (LH) Front Scuff Plate Removal/Installation

c. Rear scuff plate Rear Scuff Plate Removal/Installation

d. B-pillar lower trim B-Pillar Lower Trim Removal/Installation

e. Rear seat cushion Rear Seat Cushion Removal/Installation

f. Rear seat back Rear Seat Back Removal/Installation

g. Tire house trim (LH) Tire House Trim Removal/Installation

h. Trunk end trim Trunk End Trim Removal/Installation

i. Trunk side trim (LH)

j. Trunk lid opener lever Service and Repair

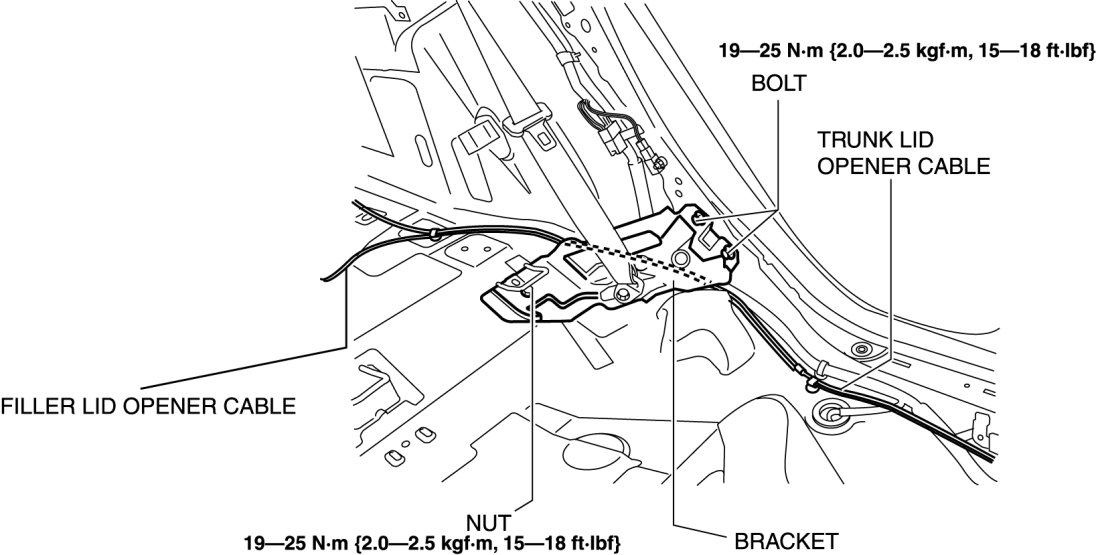

3. Remove the blots and nut.






4. Remove the bracket.

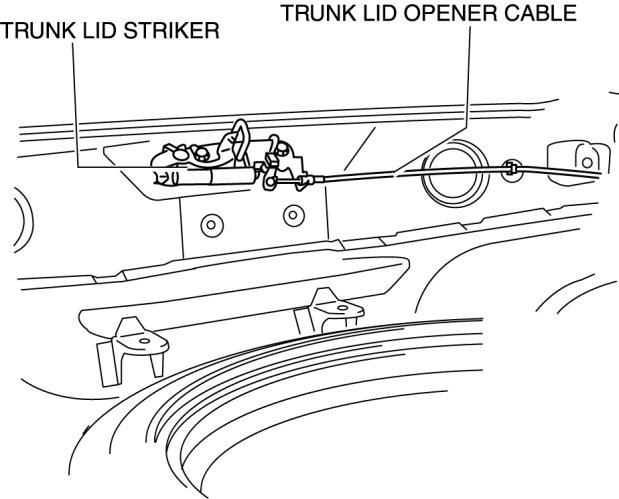

5. Disconnect the trunk lid striker from the trunk lid opener cable.

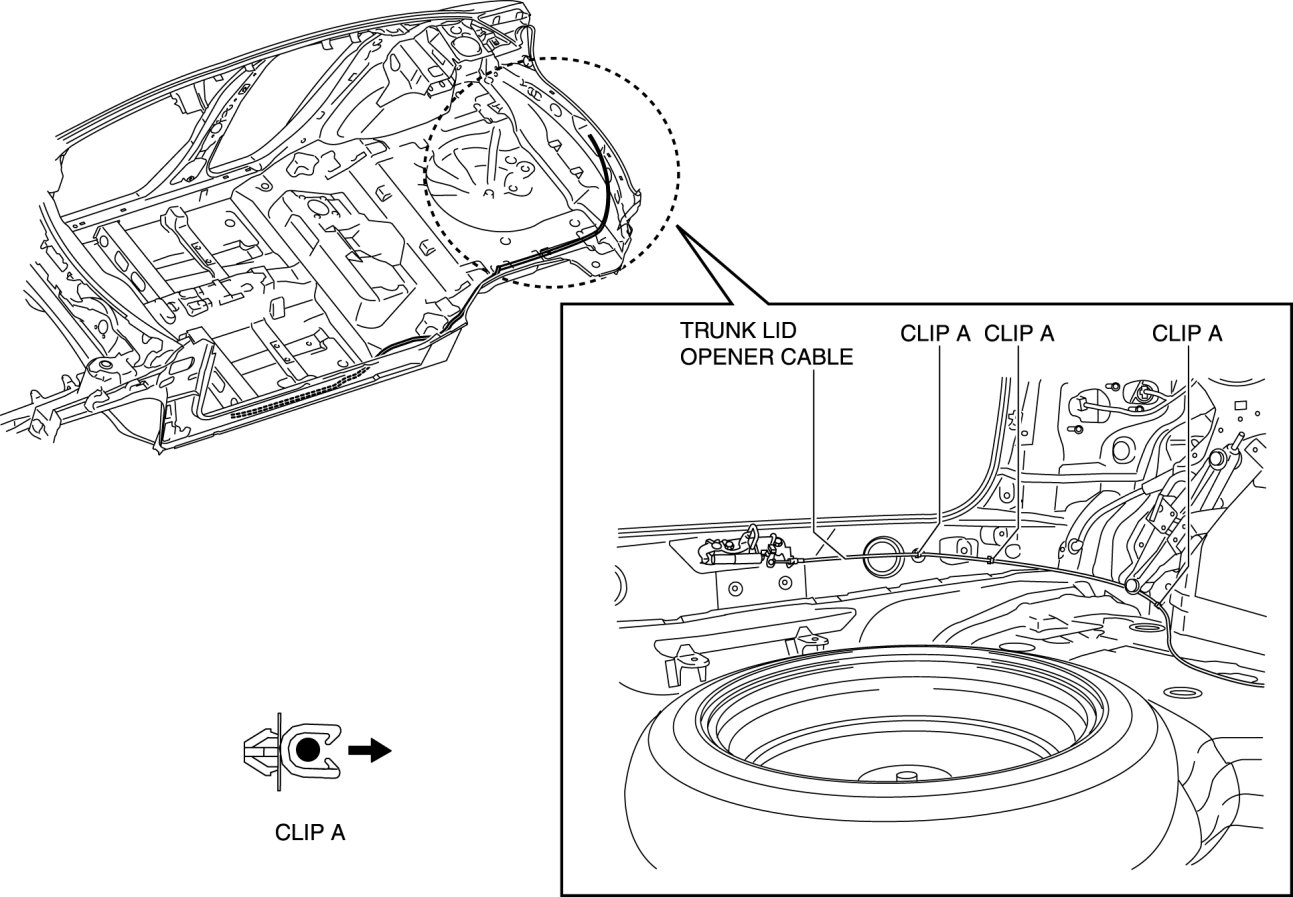

6. Remove the trunk lid opener cable from clips A.

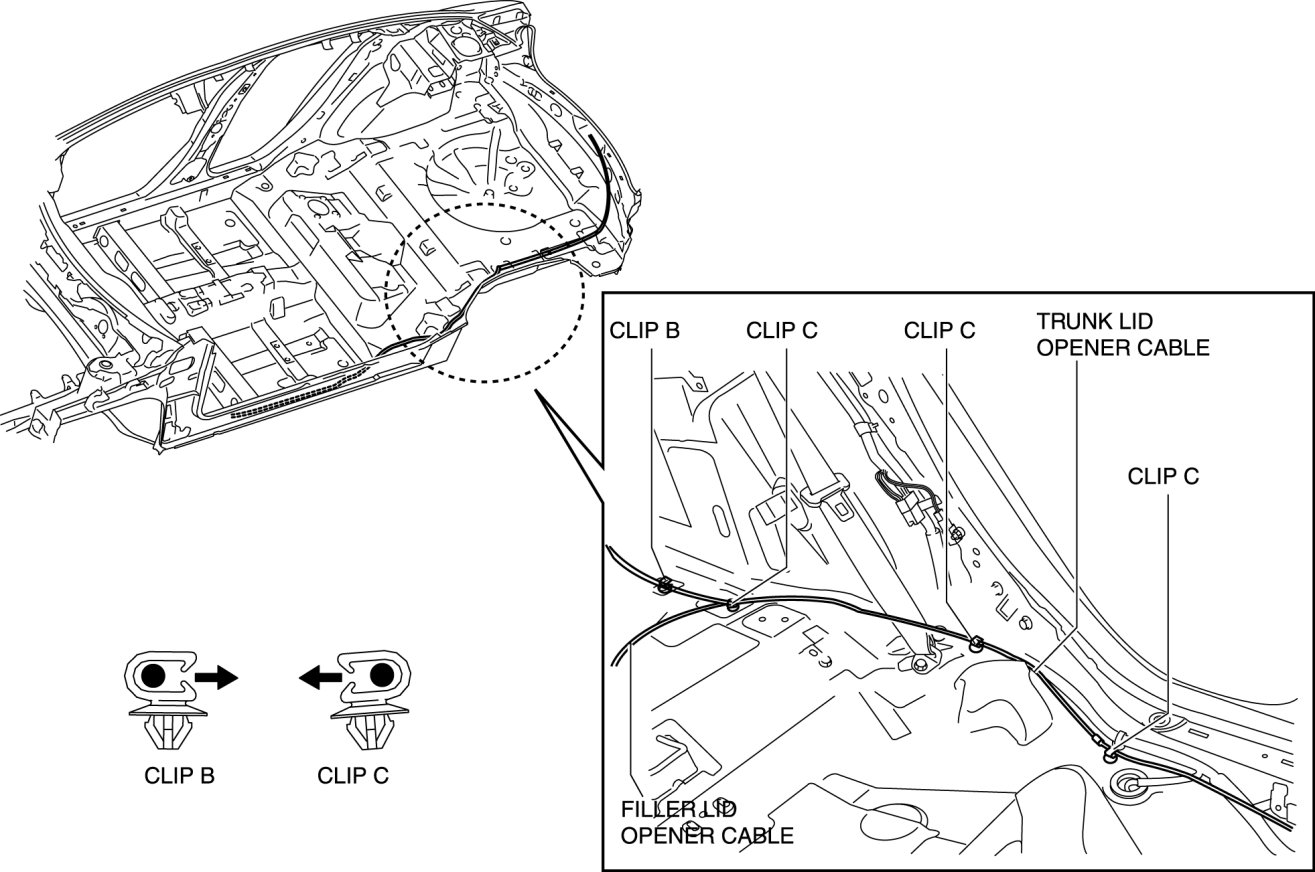

7. Remove the trunk lid opener cable from clips B and C.

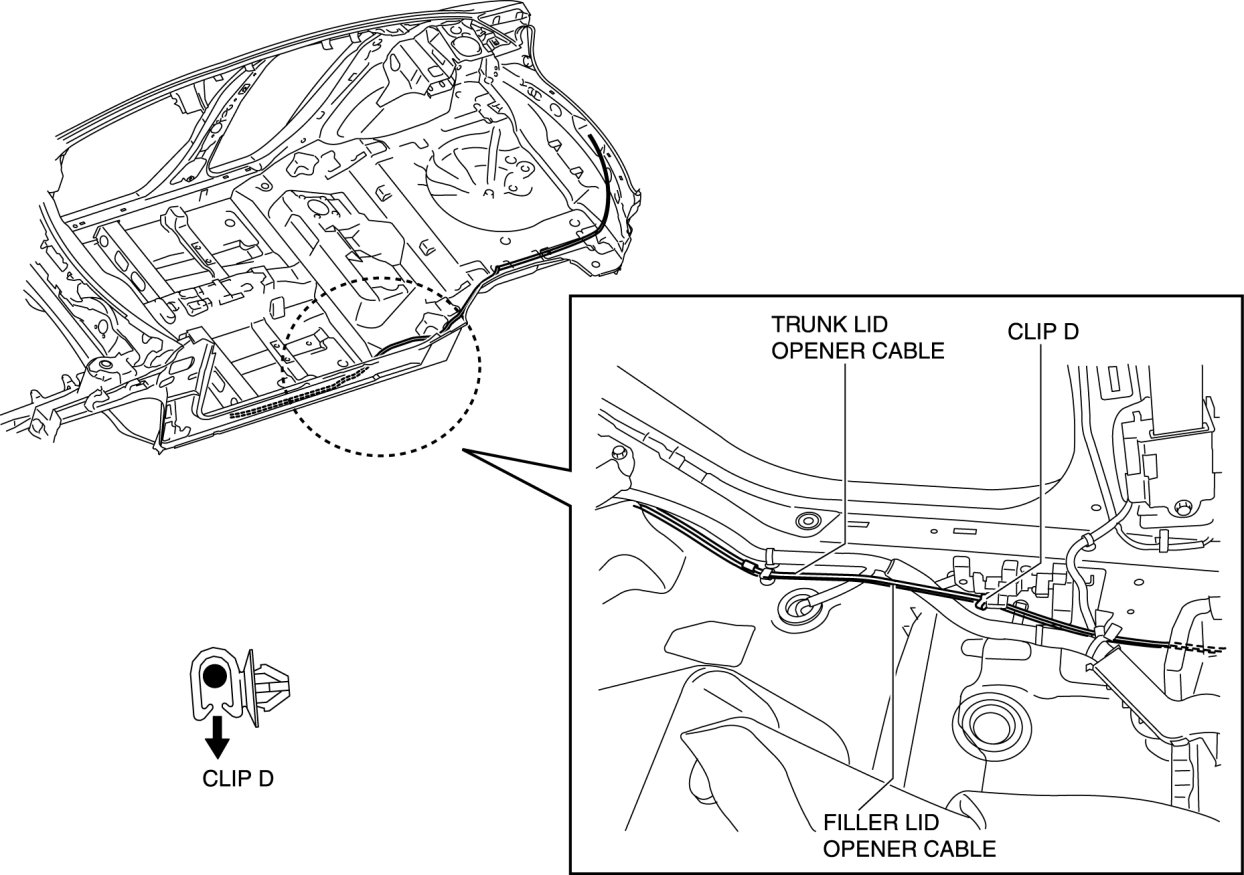

8. Remove the trunk lid opener cable from clips D.






9. Install in the reverse order of removal.
