Front Door Latch: Service and Repair

FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

1. To access the glass installation bolt, position the front door glass so that the distance from the top of the front door glass to the upper part of the front beltline molding is approx. 80 mm {3.1 in}.






2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

3. Remove the following parts:
a. Inner garnish Inner Garnish Removal/Installation

b. Front door trim Front Door Trim Removal/Installation

c. Front inner handle Service and Repair

d. Front door speaker Front Door Speaker Removal/Installation

e. Front door glass Service and Repair

f. Front door module panel Front Door Module Panel Removal/Installation

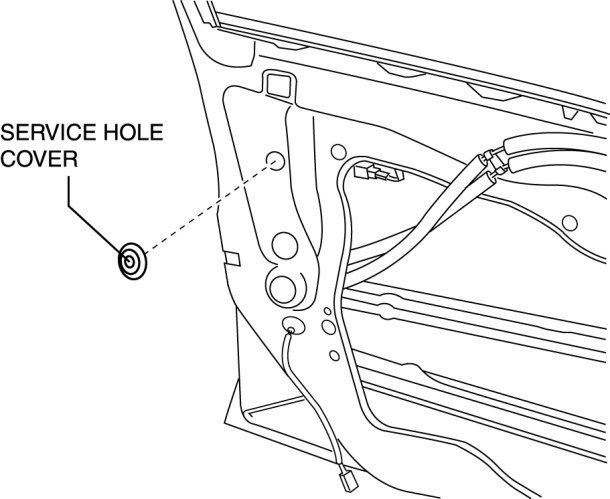

4. Remove the service hole cover (with front door key cylinder).






5. Remove the tab, then remove the door lock-link bracket (with front door key cylinder).






6. Disconnect the key rod from the front outer handle bracket.

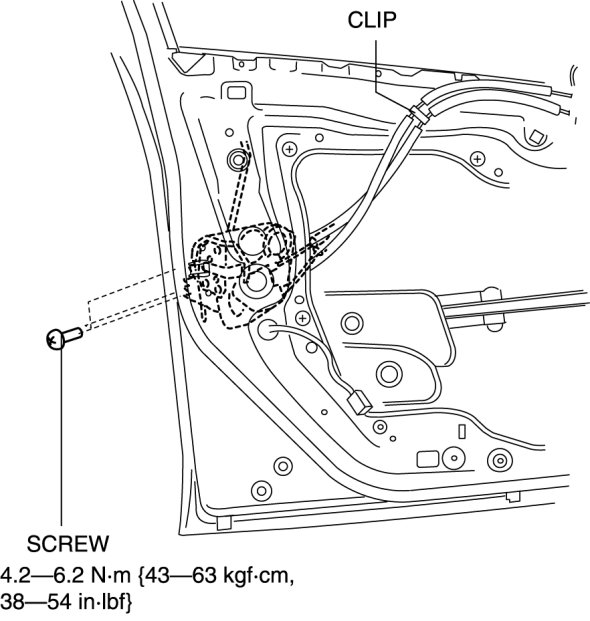

7. Remove the screw.






8. Detach the clips.

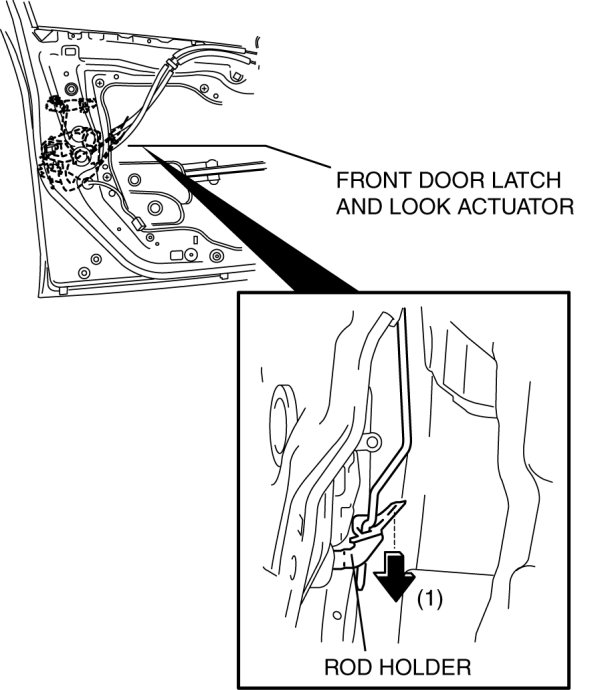

9. Press down the rod holder of the front door latch and lock actuator in the direction of the arrow.

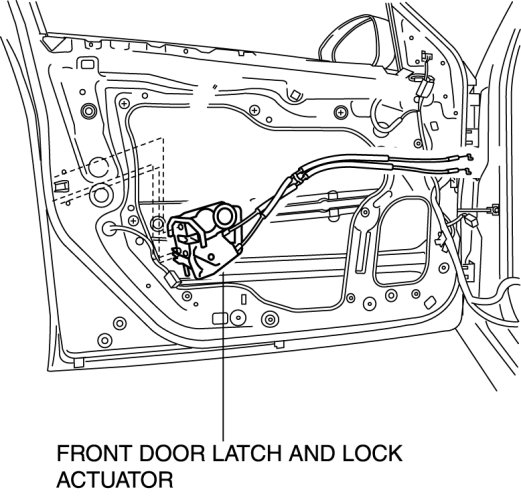

10. Maintaining the condition in Step 9, remove the front door latch and lock actuator.






11. Install in the reverse order of removal.
