Front Door Hinge: Service and Repair

FRONT DOOR HINGE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Front bumper Front Bumper Removal/Installation

b. Front combination light Front Combination Light Removal/Installation

c. Front fender molding Cowl Grille Removal/Installation

d. Side step molding

e. Front fender panel Service and Repair

f. Front door Service and Repair

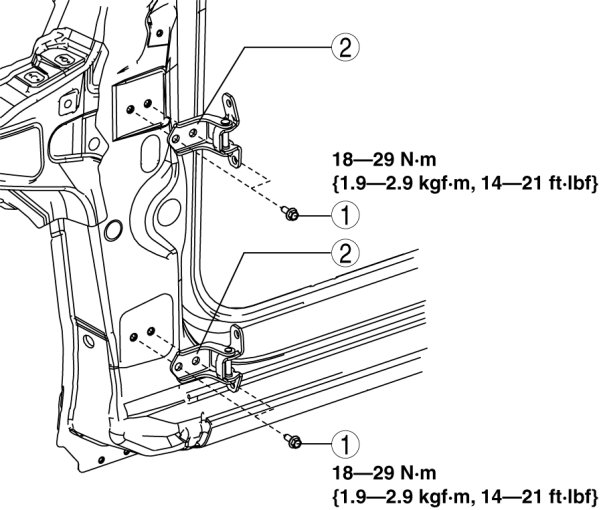

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
