Voice Activation Microphone: Service and Repair

MICROPHONE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the map light. Map Light Removal/Installation

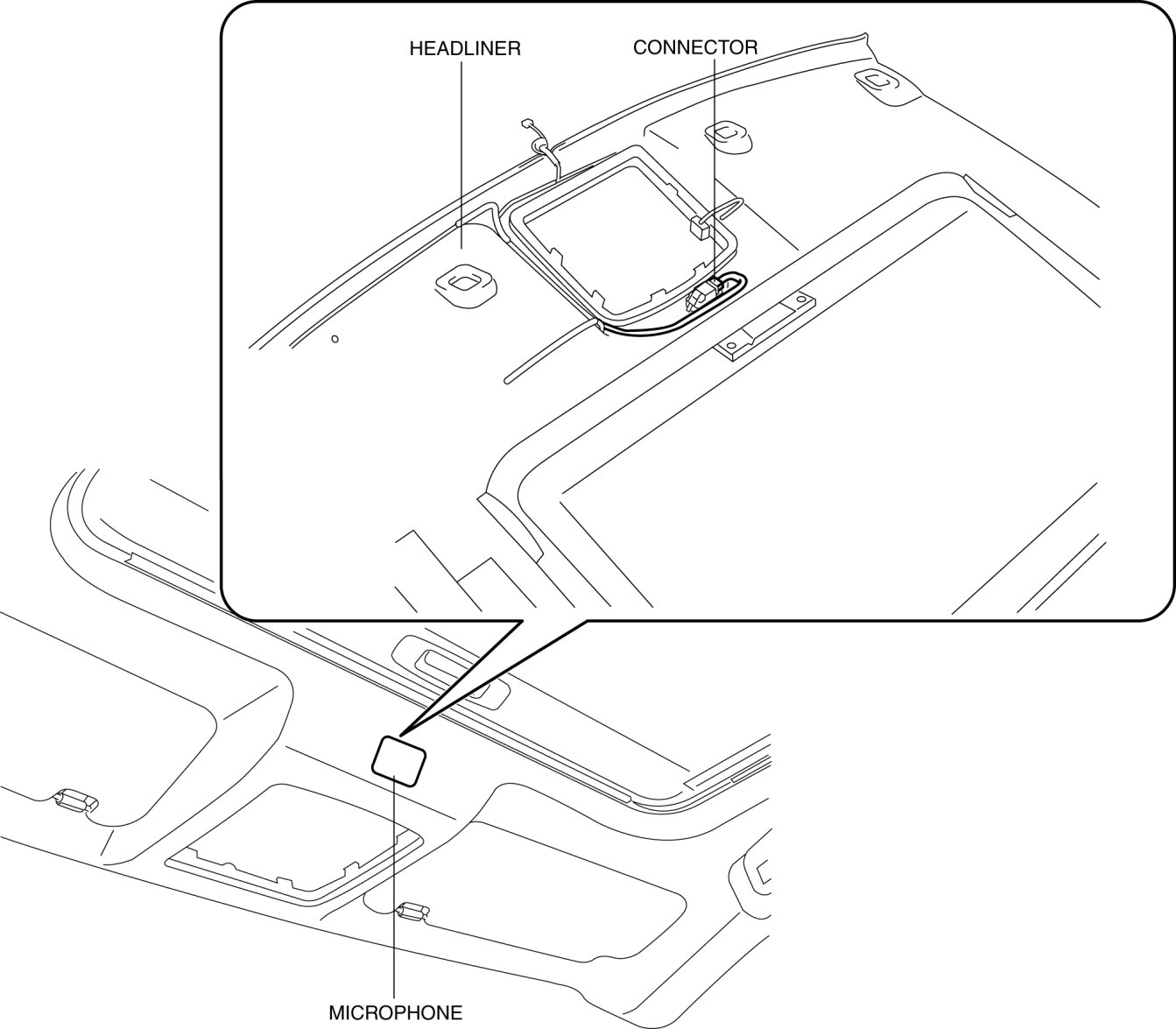

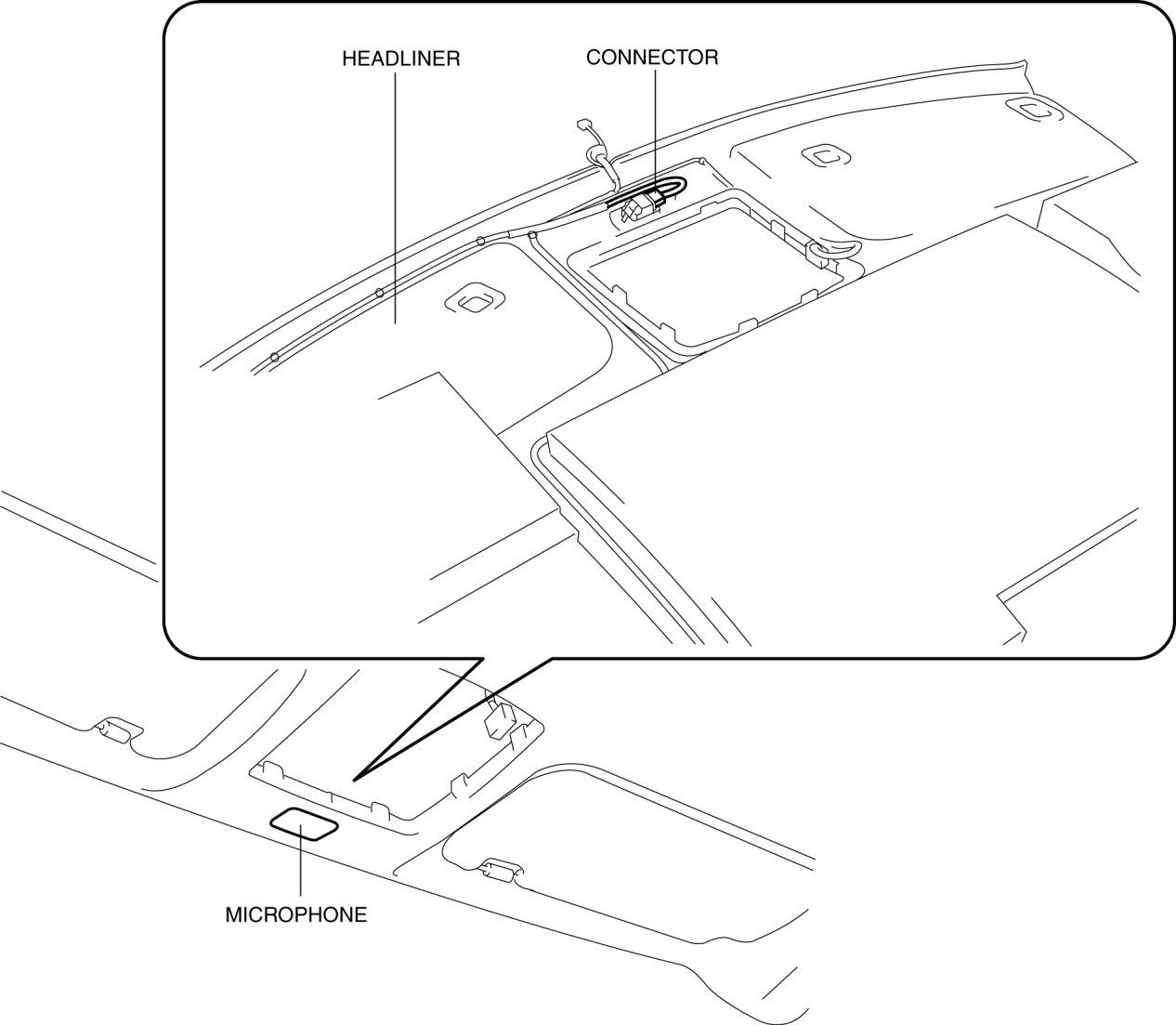

3. Disconnect the connector.
Without sunroof





With sunroof

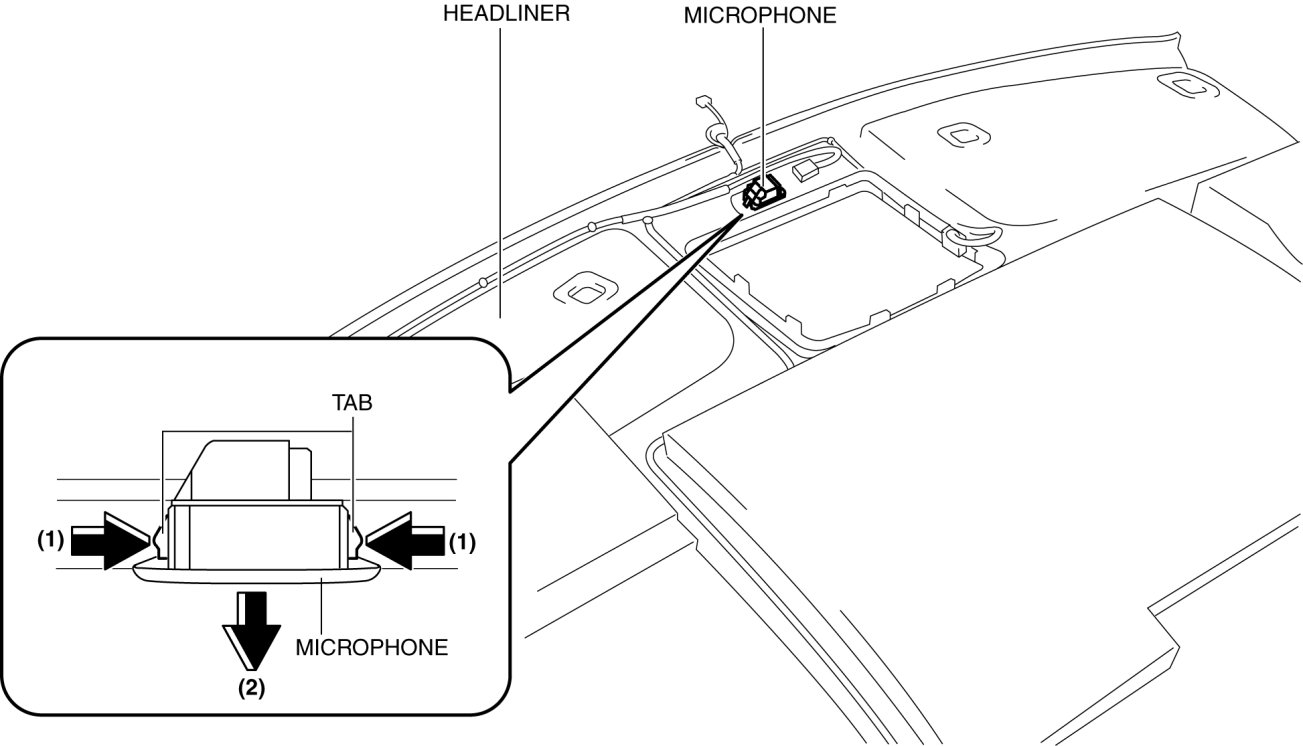

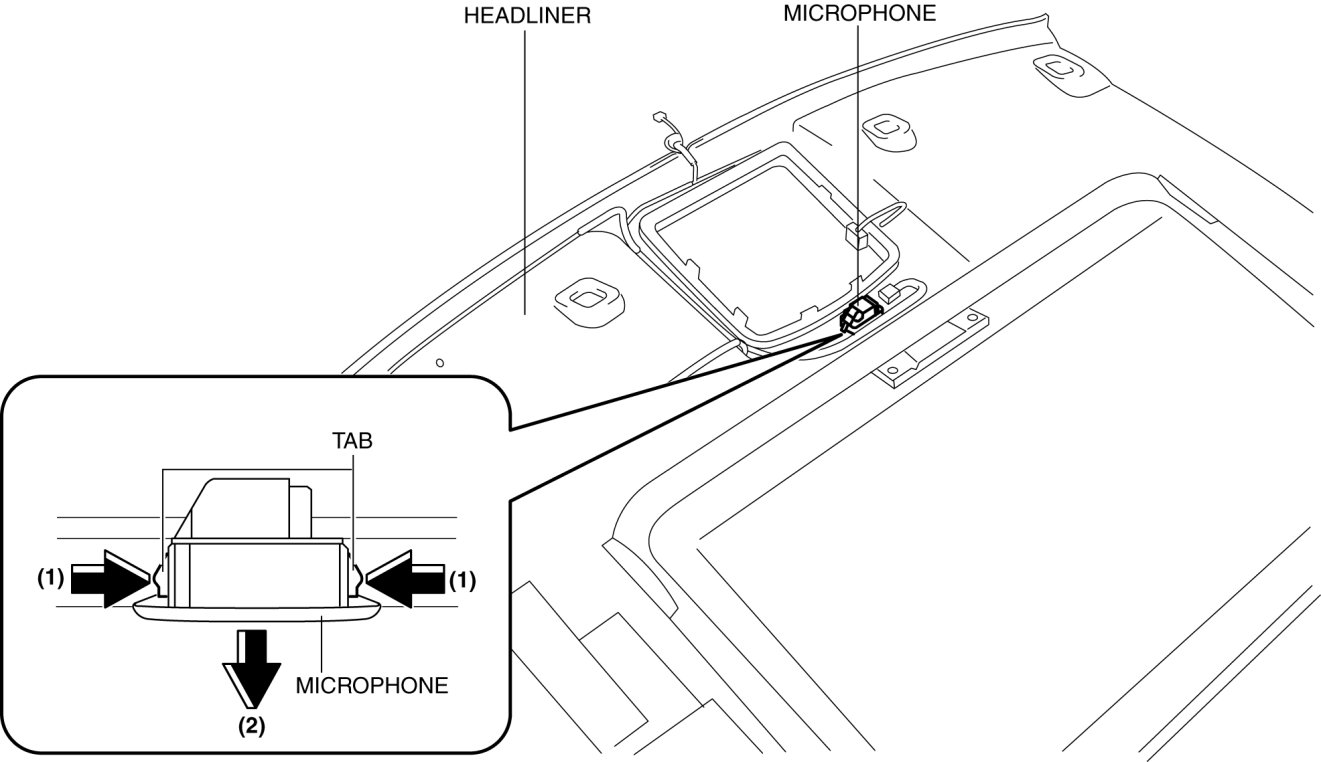

4. Remove the microphone in the direction of the arrow (2) shown in the figure while pressing the microphone tabs in the direction of the arrow (1).
Without sunroof





With sunroof






5. Install in the reverse order of removal.
