No. 8 Audiopilot(R)2 Function Is Inoperative
No. 8 Audiopilot(R)2 Function Is Inoperative
(R)

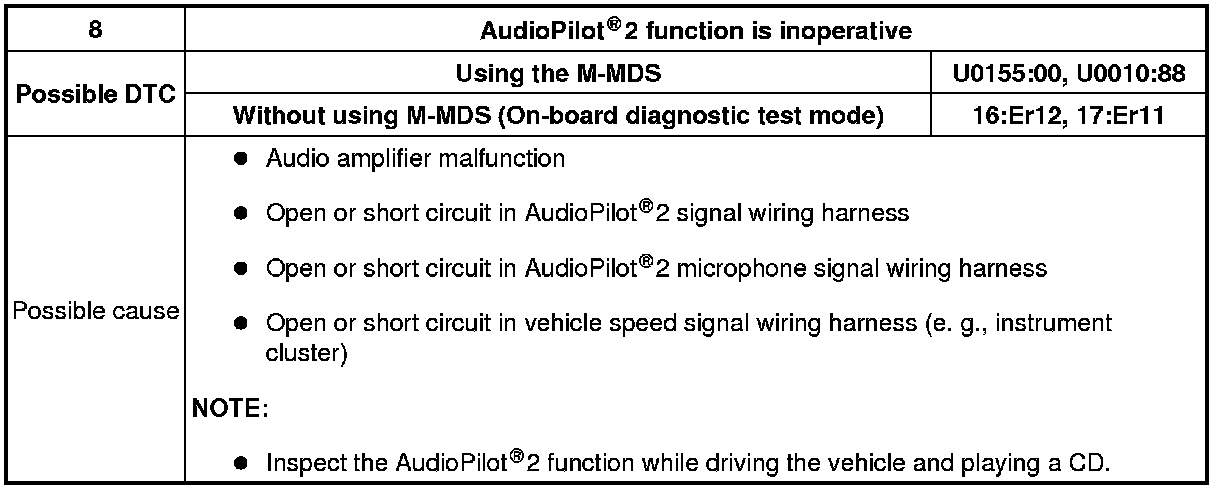

NO.8 AudioPilot(R)2 FUNCTION IS INOPERATIVE [ENTIRE AUDIO SYSTEM]

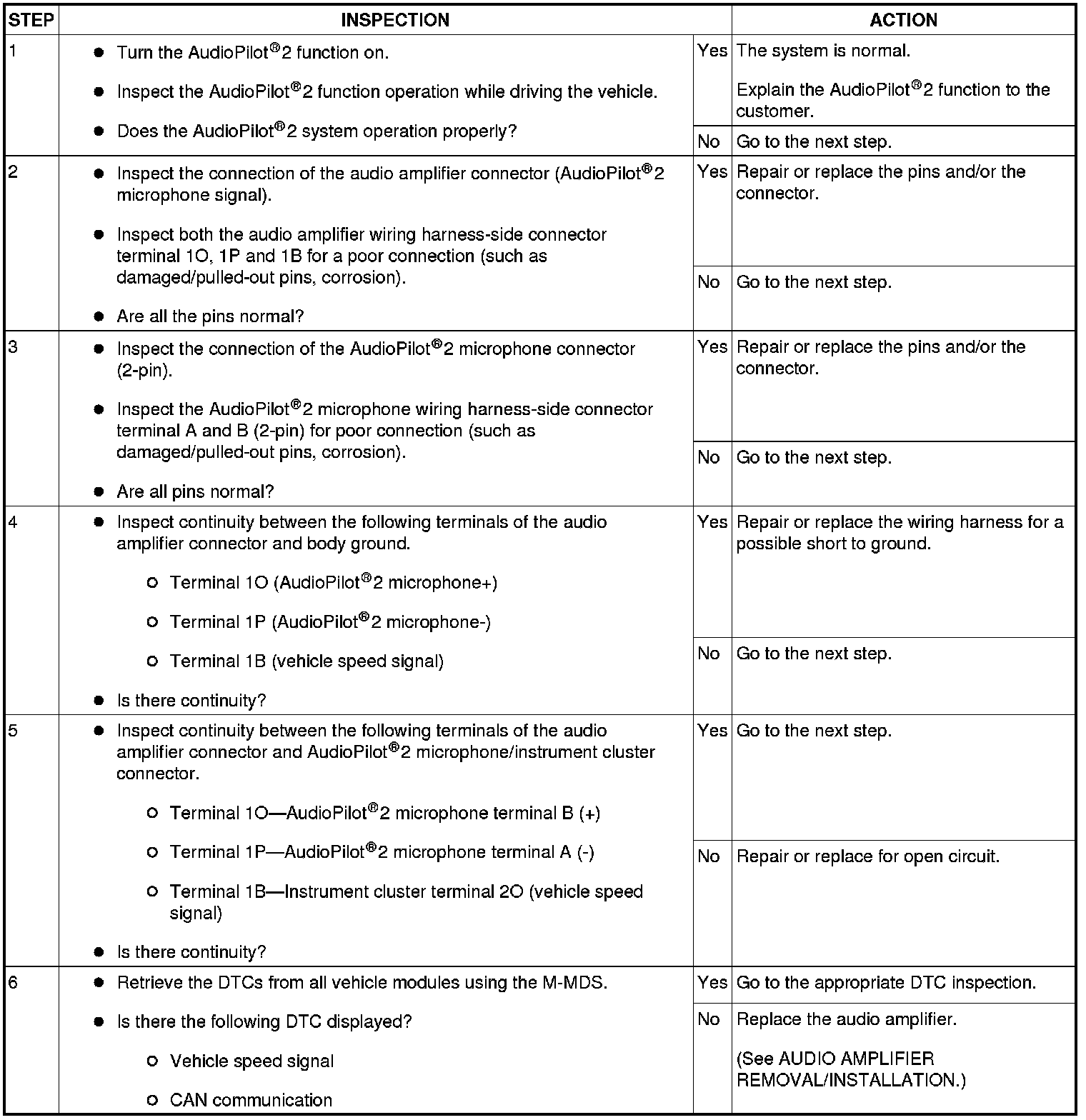

Diagnostic procedure
