No. 7 ALC Function Is Inoperative
No. 7 ALC Function Is Inoperative

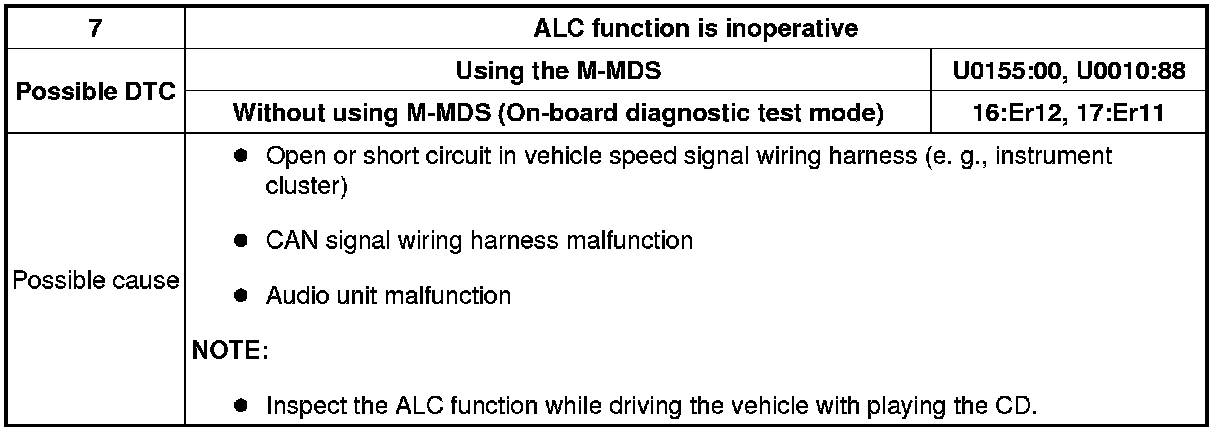

NO.7 ALC FUNCTION IS INOPERATIVE [ENTIRE AUDIO SYSTEM]

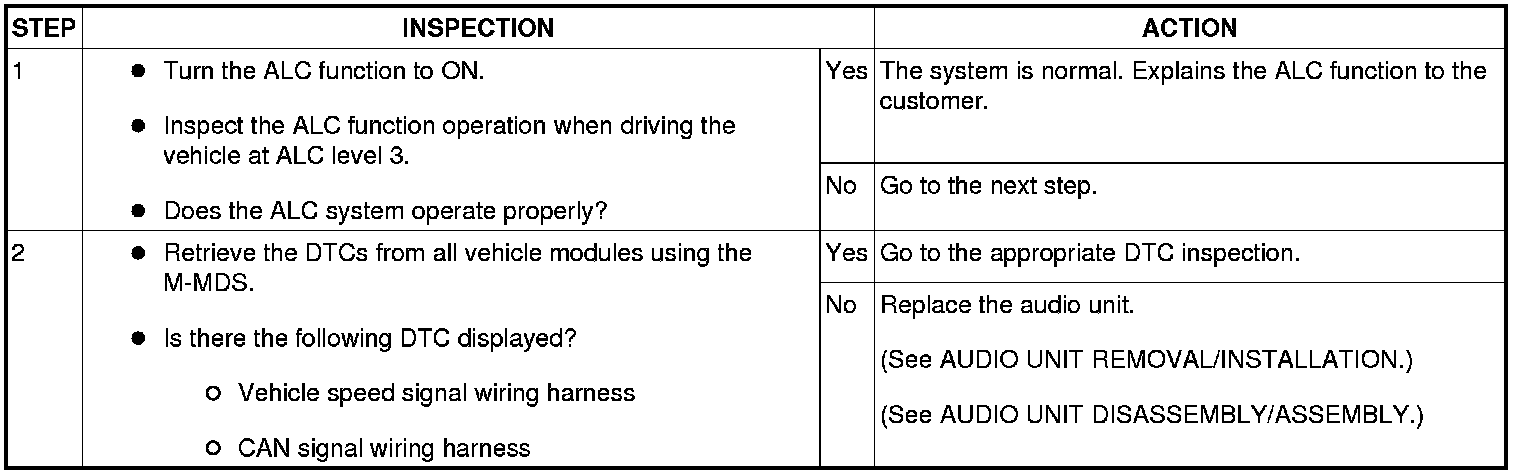

Diagnostic procedure
