No. 4 No Sound From Some Speakers

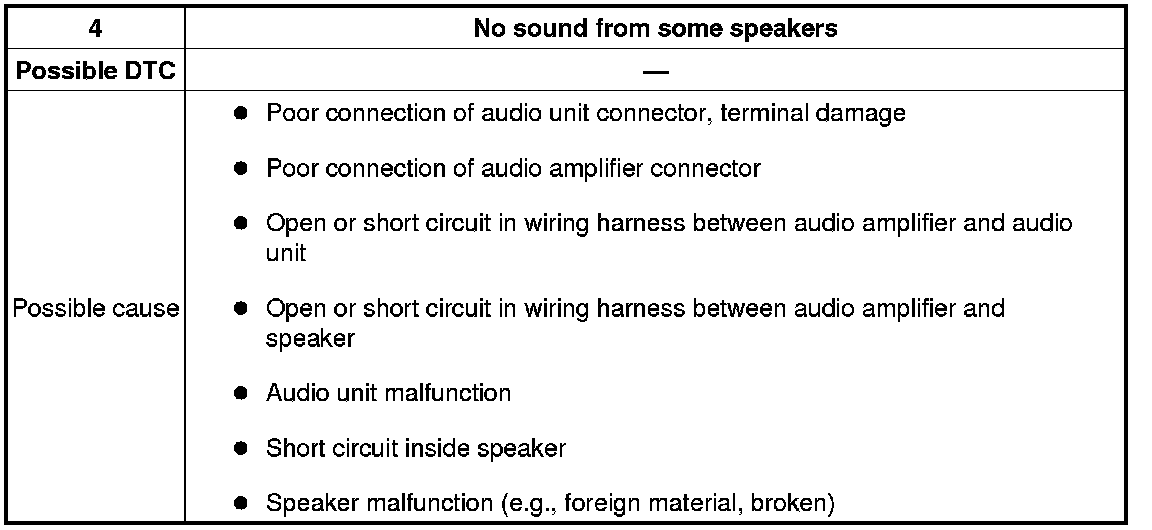

NO.4 NO SOUND FROM SOME SPEAKERS [ENTIRE AUDIO SYSTEM]

Without Bose(R)

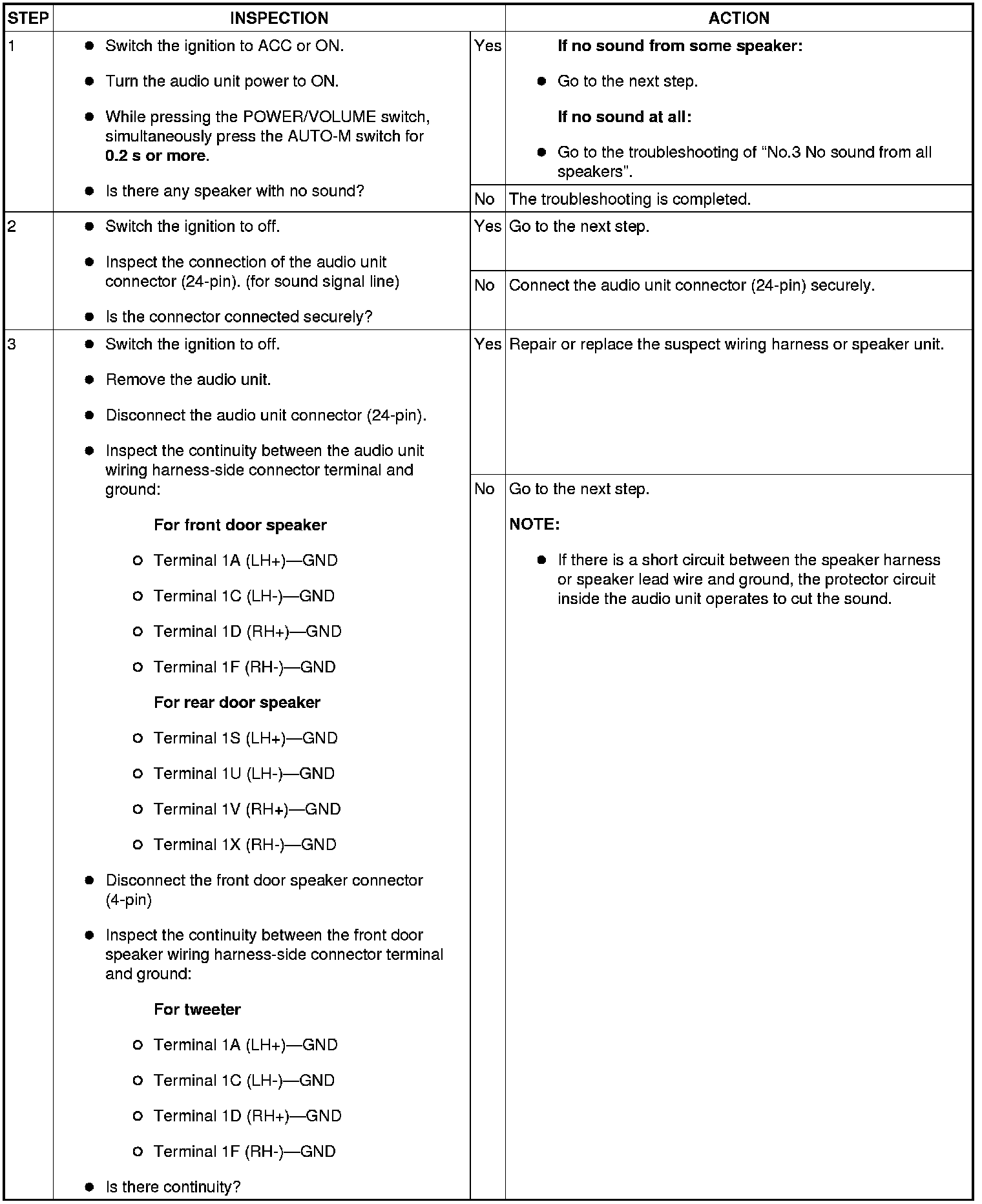

Diagnostic procedure









With Bose(R)

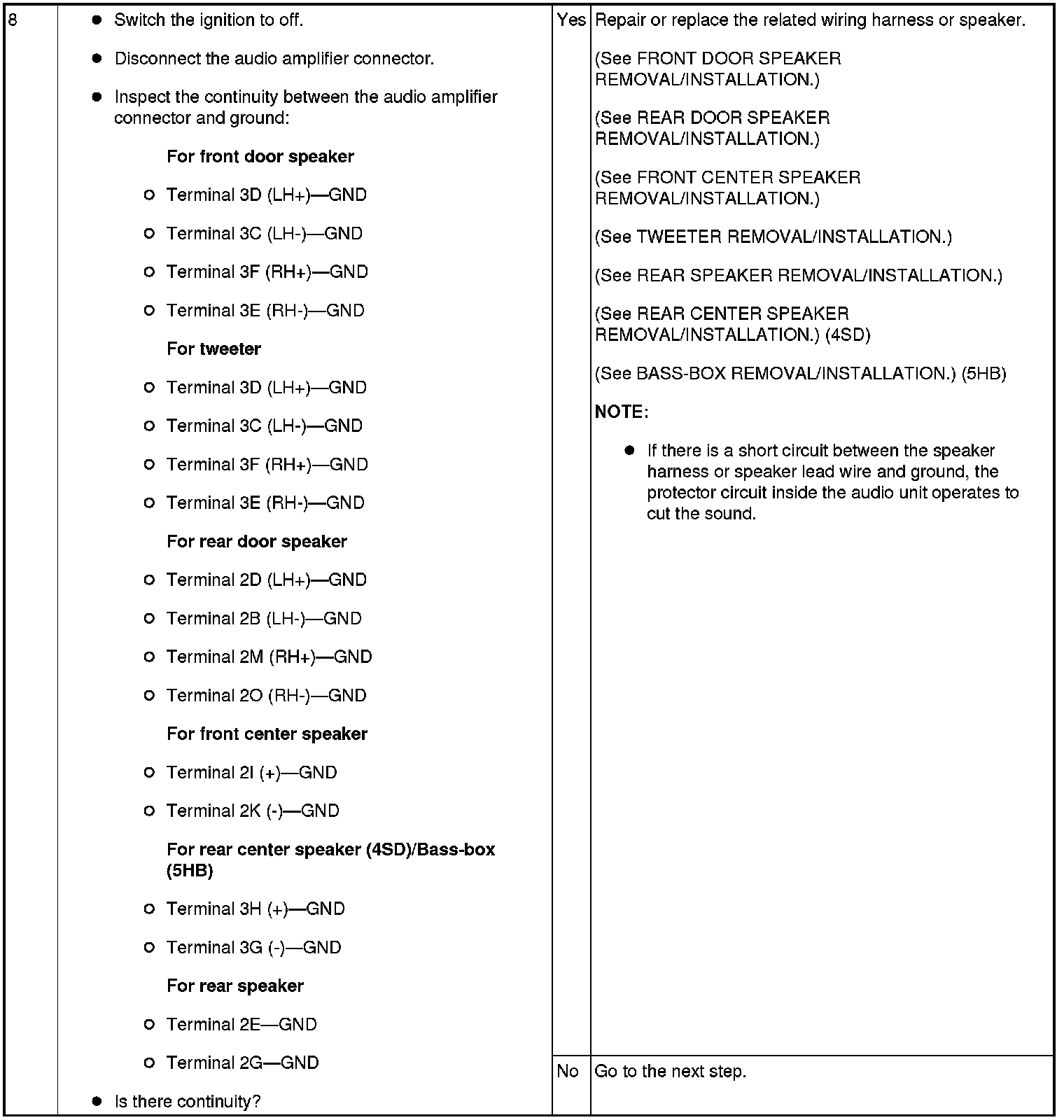

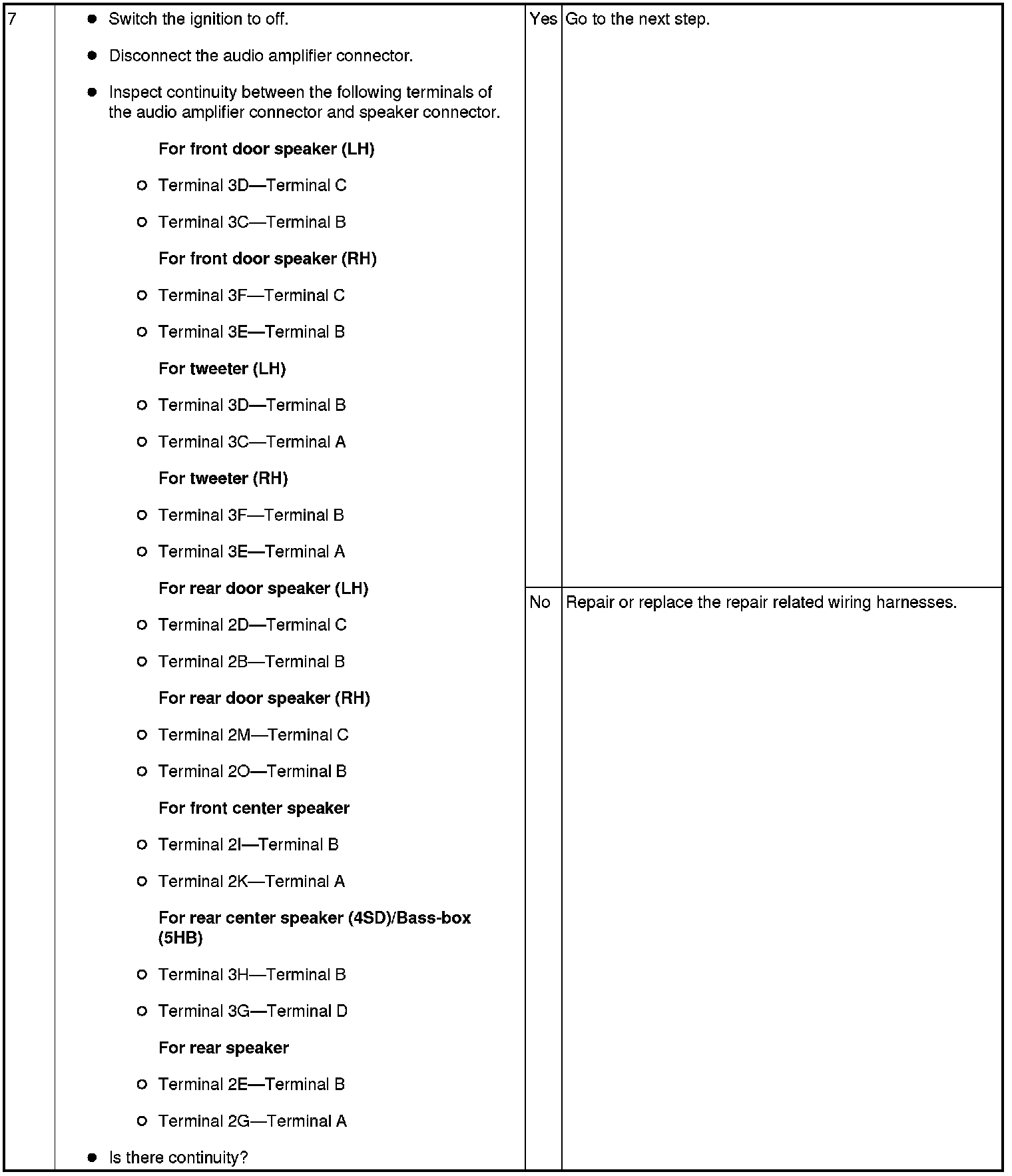

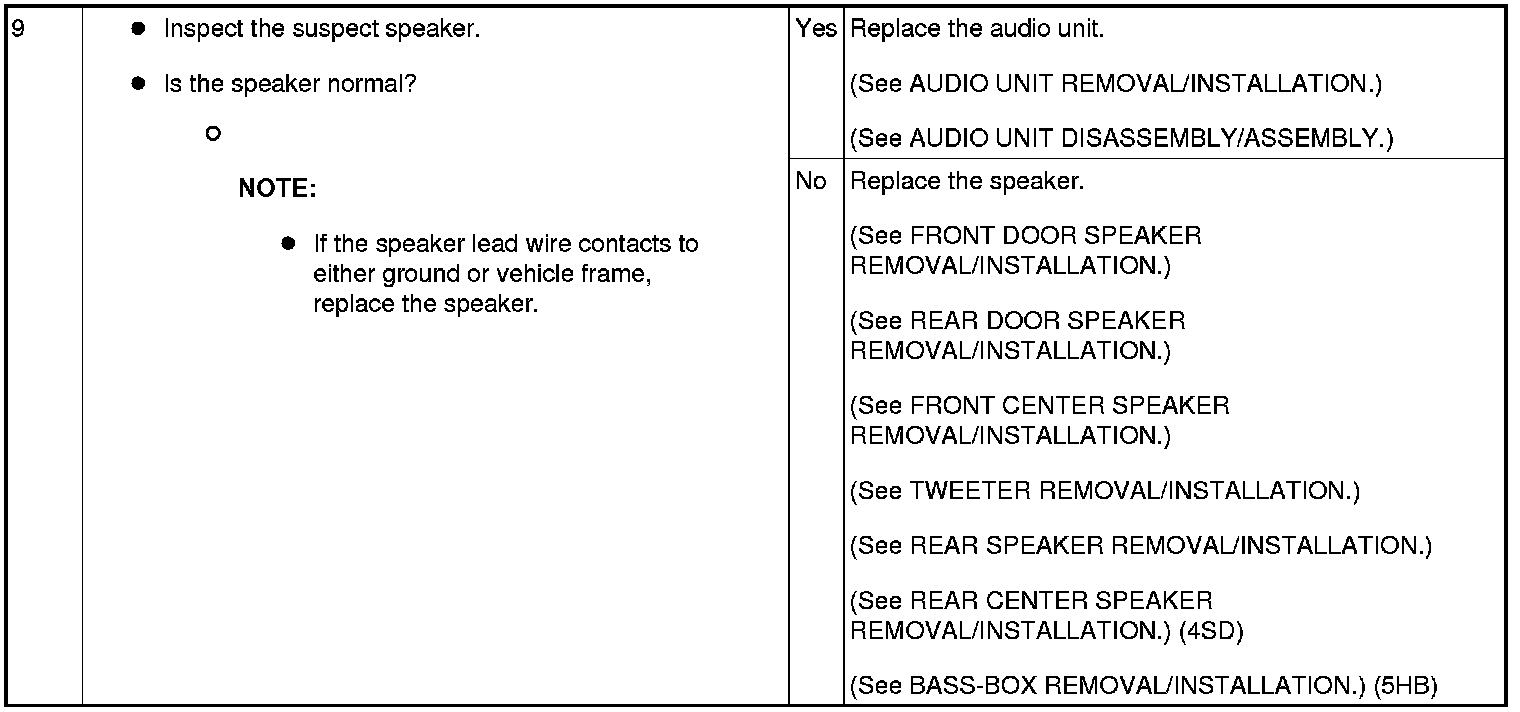

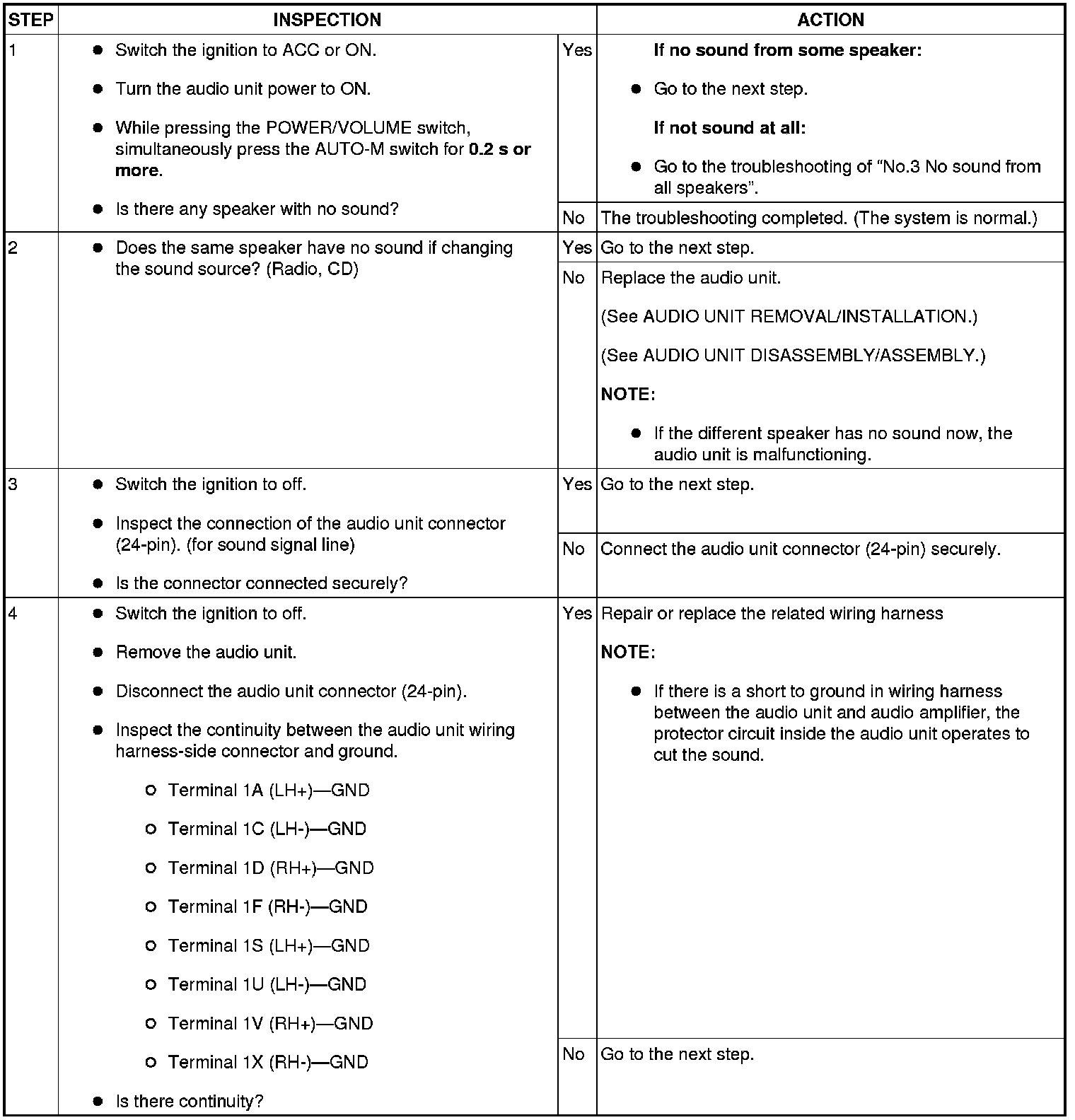

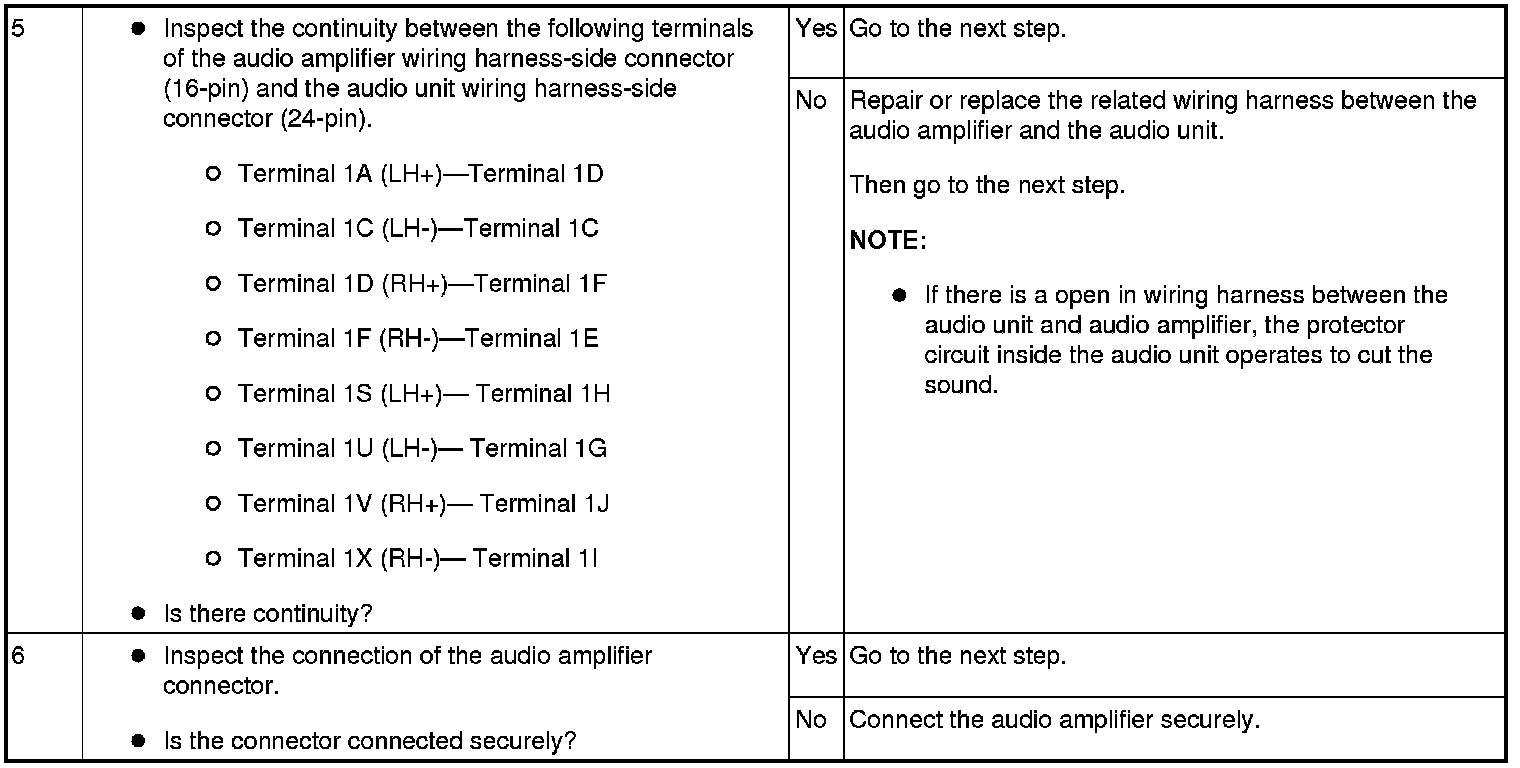

Diagnostic procedure
