No. 3 No Sound From All Speakers





NO.3 NO SOUND FROM ALL SPEAKERS [ENTIRE AUDIO SYSTEM]

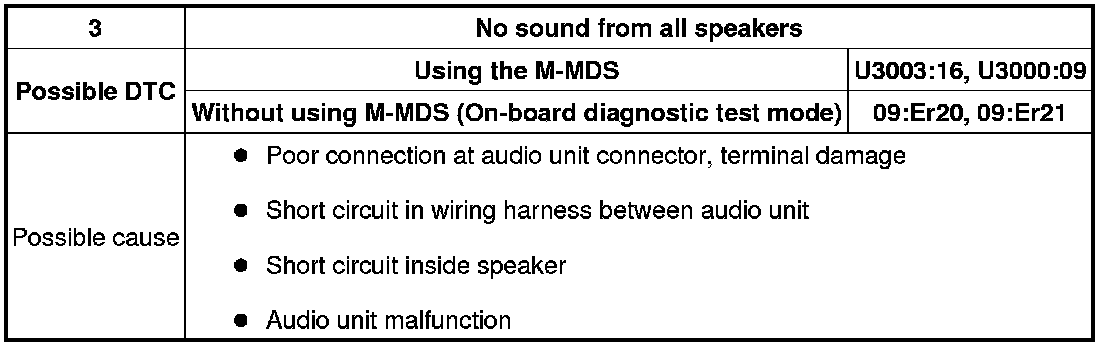

Without Bose(R)

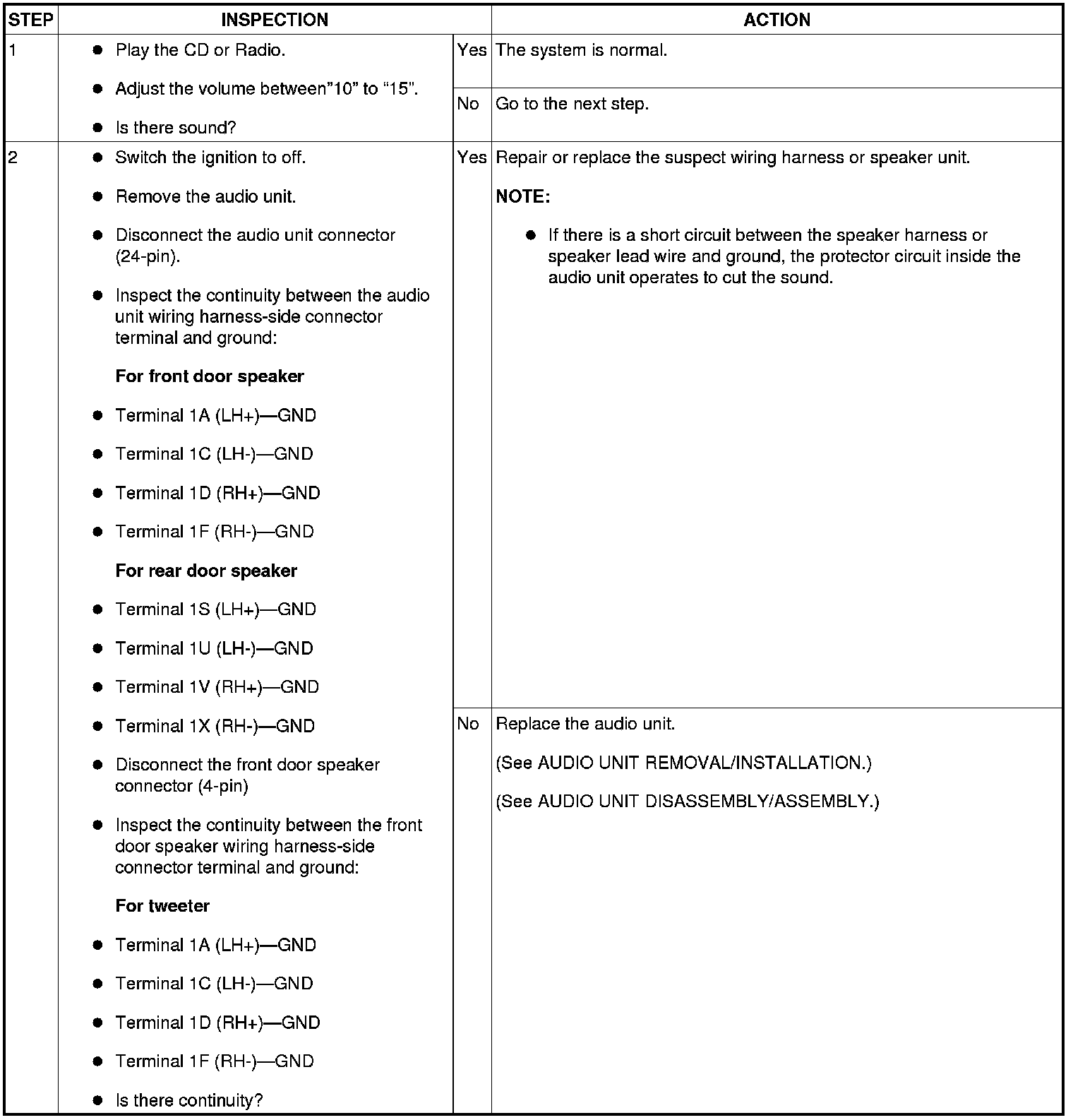

Diagnostic procedure

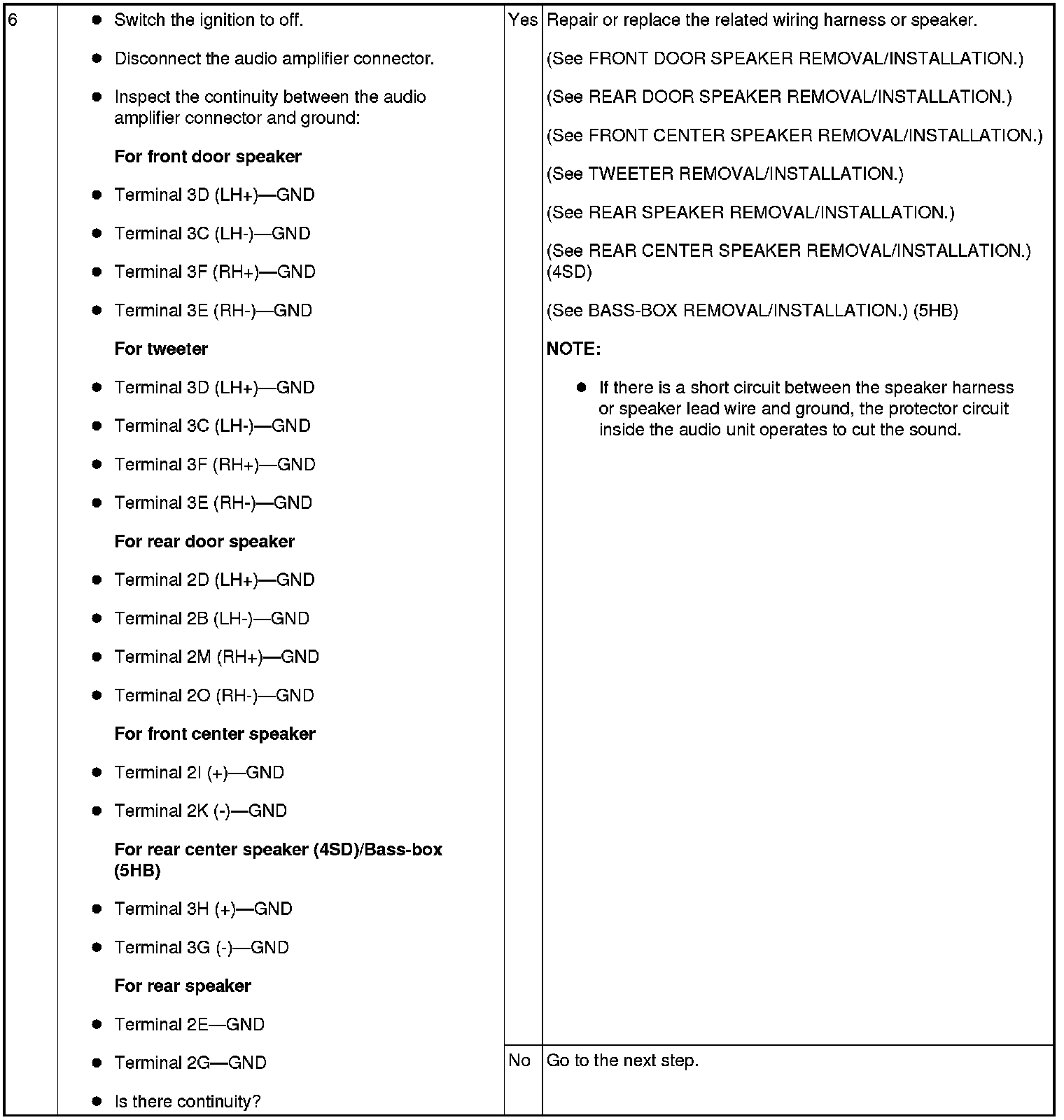

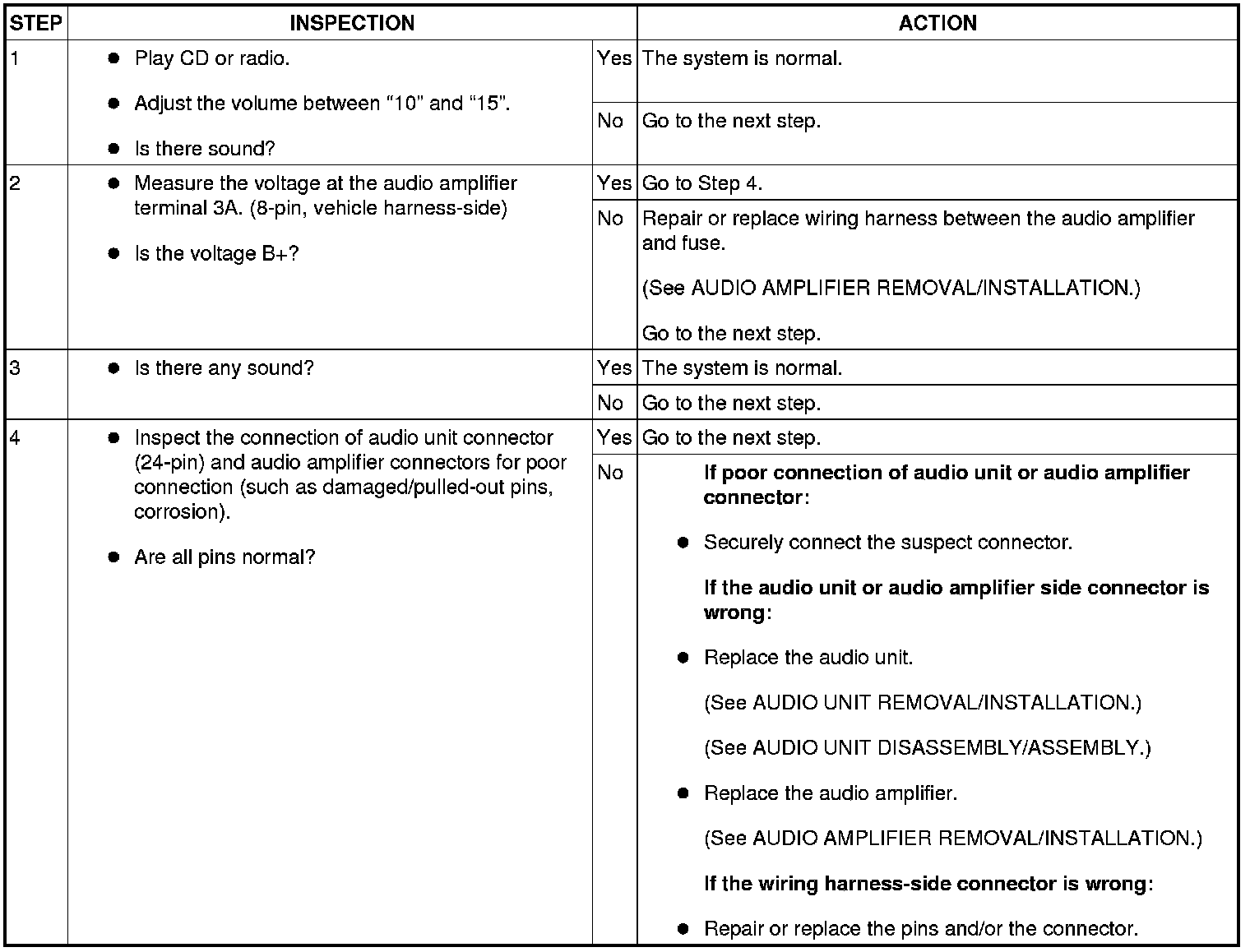

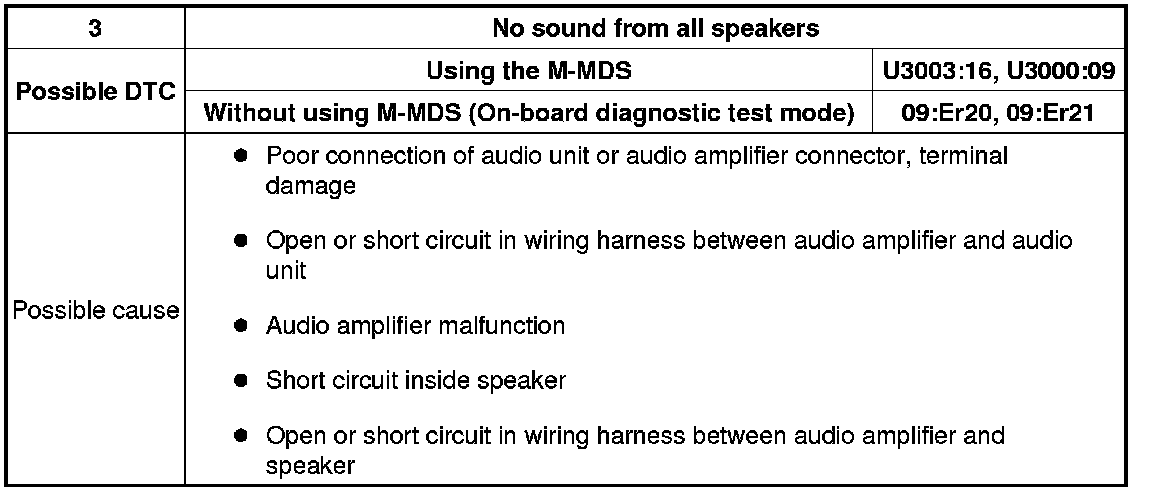

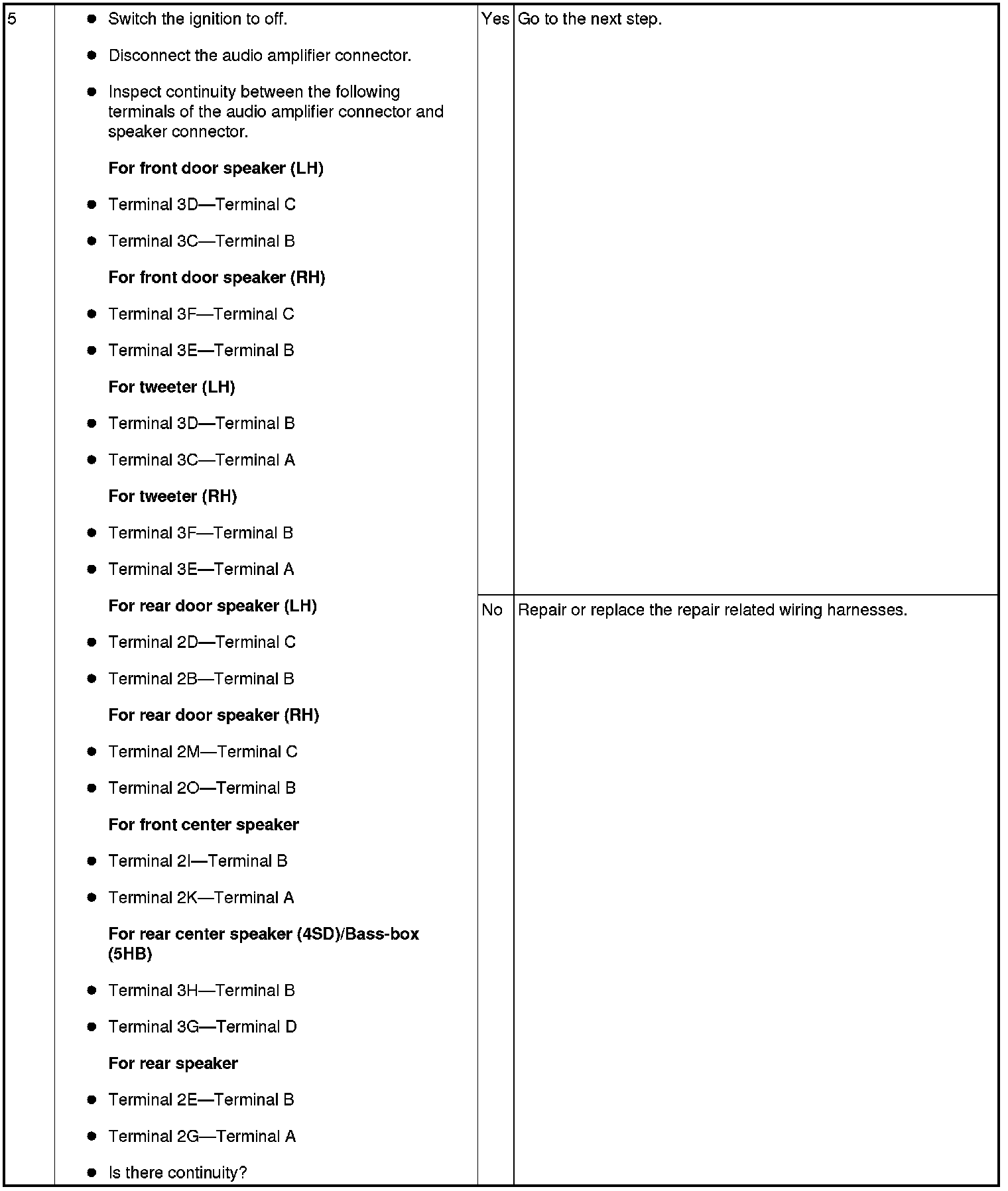

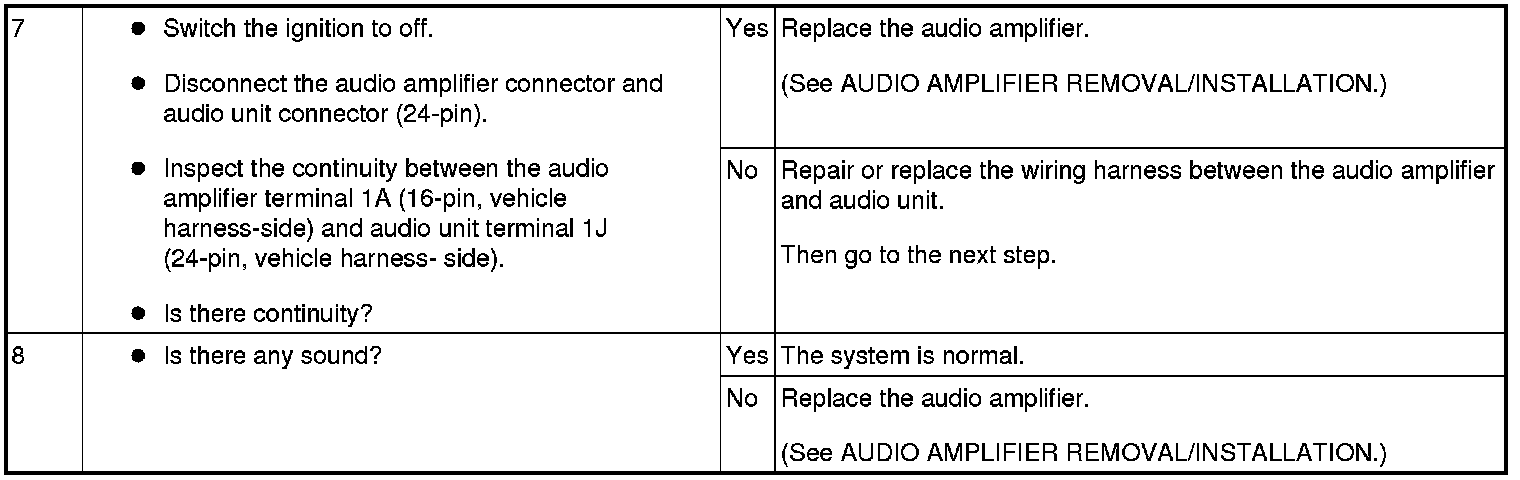

With Bose(R)





Diagnostic procedure
