Home
>>
Mazda
>>
2012
>>
3 L4-2.0L (MZR)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Entire Audio System
>>
No. 2 No Power To The Entire Audio System
No. 2 No Power To The Entire Audio System

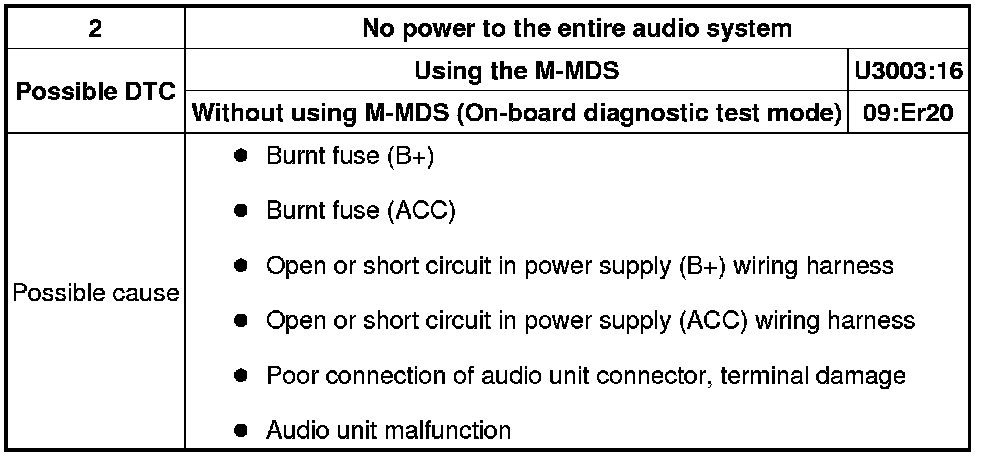

NO.2 NO POWER TO THE ENTIRE AUDIO SYSTEM [ENTIRE AUDIO SYSTEM]

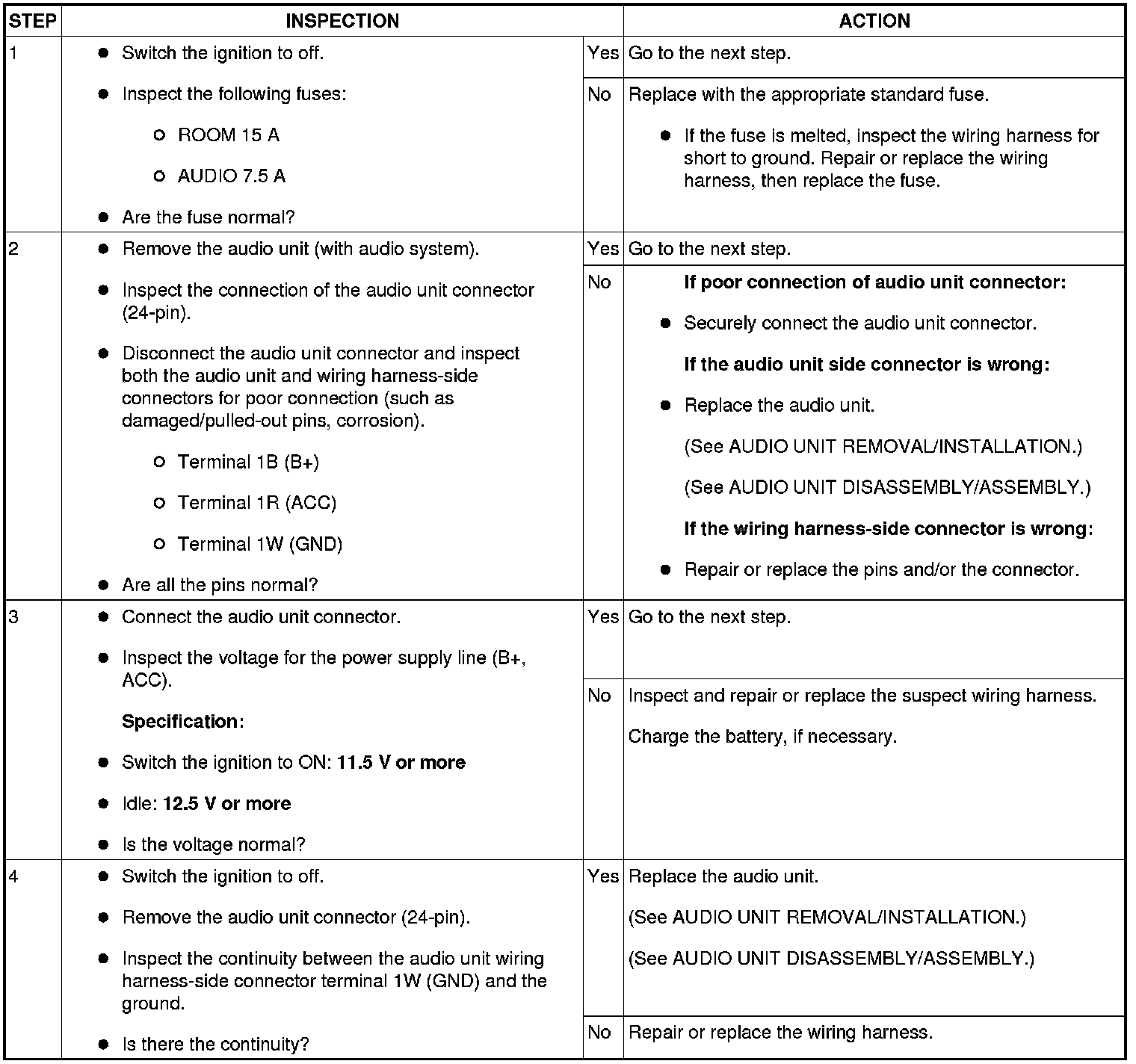

Diagnostic procedure
