No. 10 LCD Does Not Display At All
No. 10 LCD Does Not Display At All

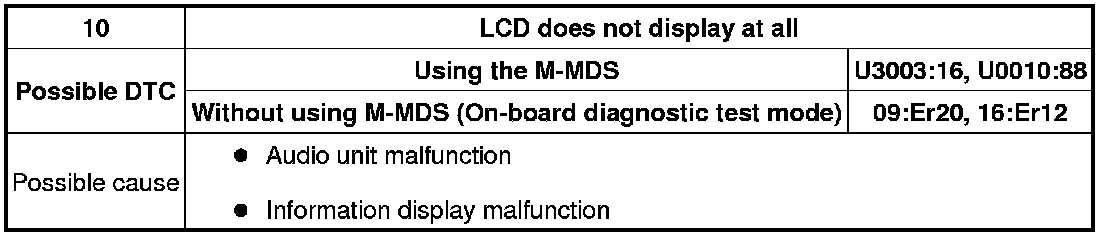

NO.10 LCD DOES NOT DISPLAY AT ALL [ENTIRE AUDIO SYSTEM]

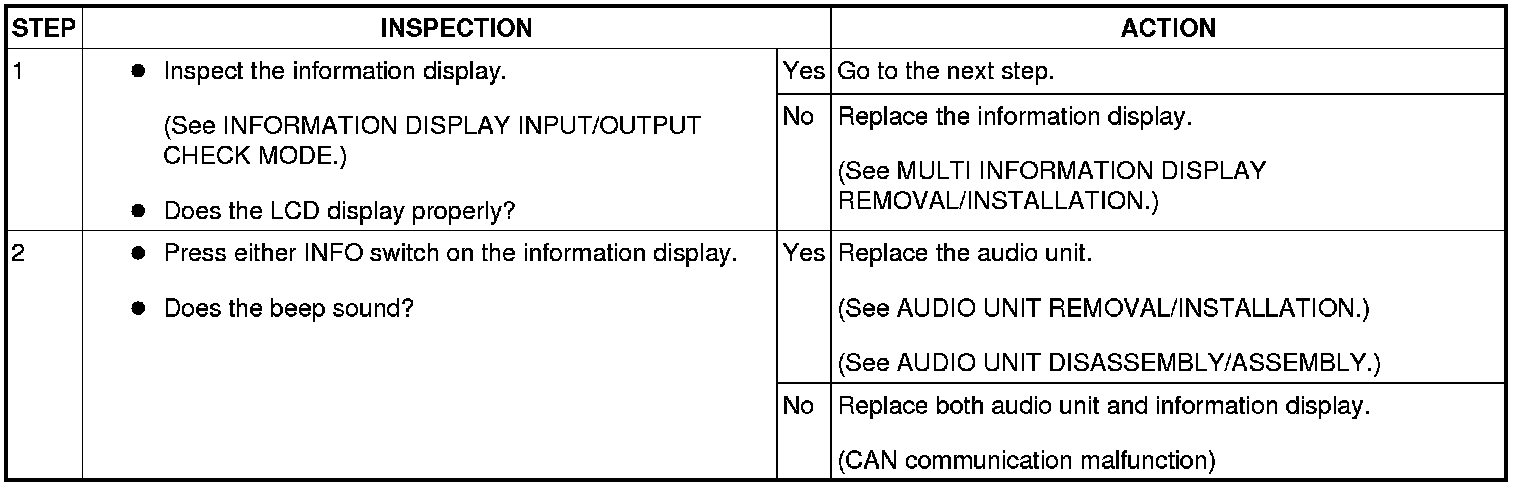

Diagnostic procedure
