No. 7 MP3/WMA-Formatted File Folder Selection Is Inoperative/Track Search Is Inoperative





NO.7 MP3/WMA-FORMATTED FILE FOLDER SELECTION IS INOPERATIVE/TRACK SEARCH IS INOPERATIVE [CD PLAYER]





NOTE:
- ID3 is a tagging format for MP3-formatted file. ID3 allows metadata (e.g., title, artist, track number, etc.) to be added to the MP3-formatted file.
- There are two versions in the ID tag.

- ID3v1: This is the most widespread standard tag formats and most software is compatible with this version. There is a limitation on the maximum number of characters for the text data.
- ID3v2: There are a variety of version in V2, but there is no interchangeability among the versions.

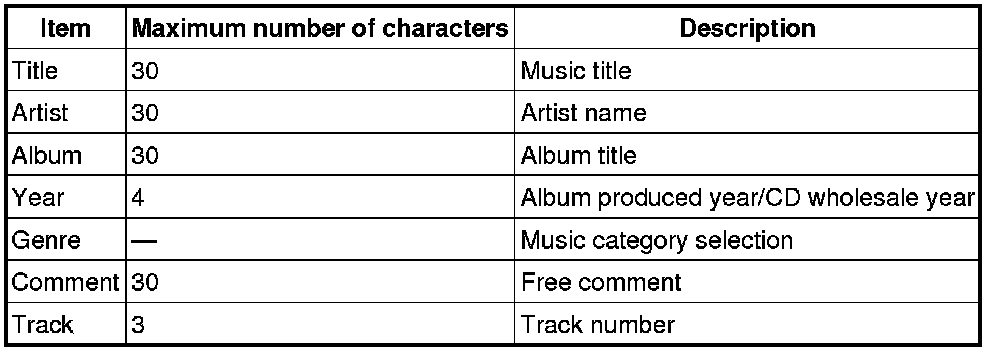

Limitation on the maximum number of characters for the text data (ID3v1)





- In a WMA file, the track name, artist name and album name are recorded with data called "WMA-Tag", and the information can be displayed.
- WMA files which do not comply with the specific standard may not be played correctly or its file and folder name may not be displayed correctly.
- The file extension may not be provided depending on the computer operating system, version, software, or setting. In this case, add the file extension ".wma" to the end of the file name, and then write the disc.

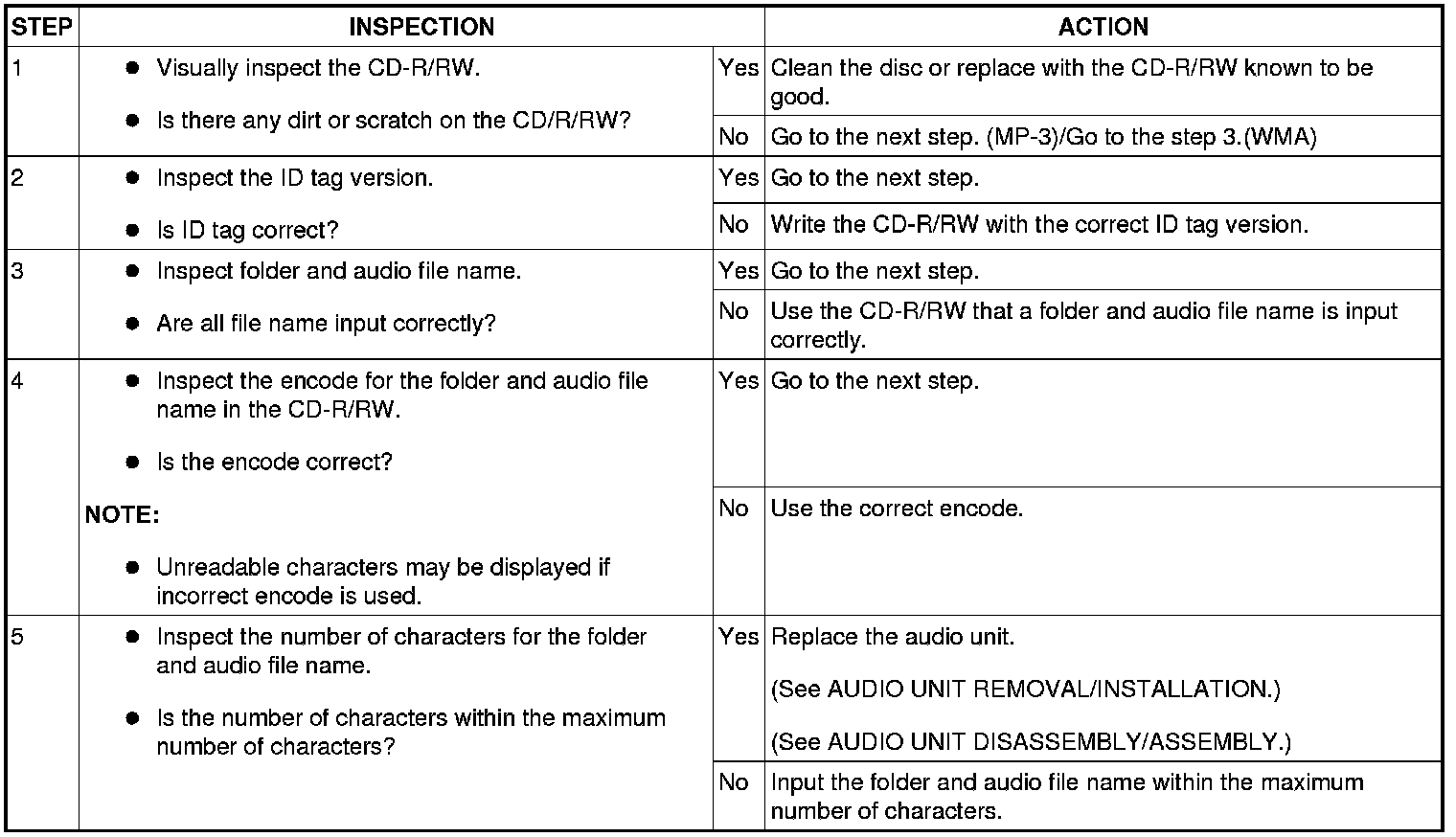

Diagnostic procedure
