FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
3 L4-2.0L (MZR)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
CD Player
>>
No. 4 Sound Jumps
No. 4 Sound Jumps

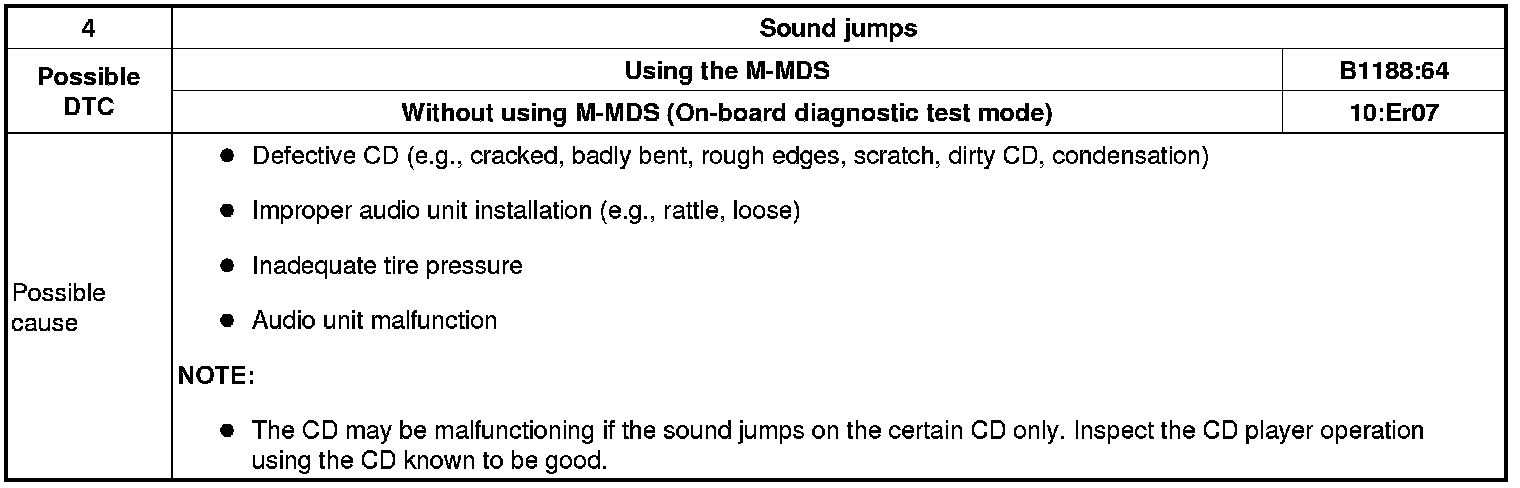

NO.4 SOUND JUMPS [CD PLAYER]

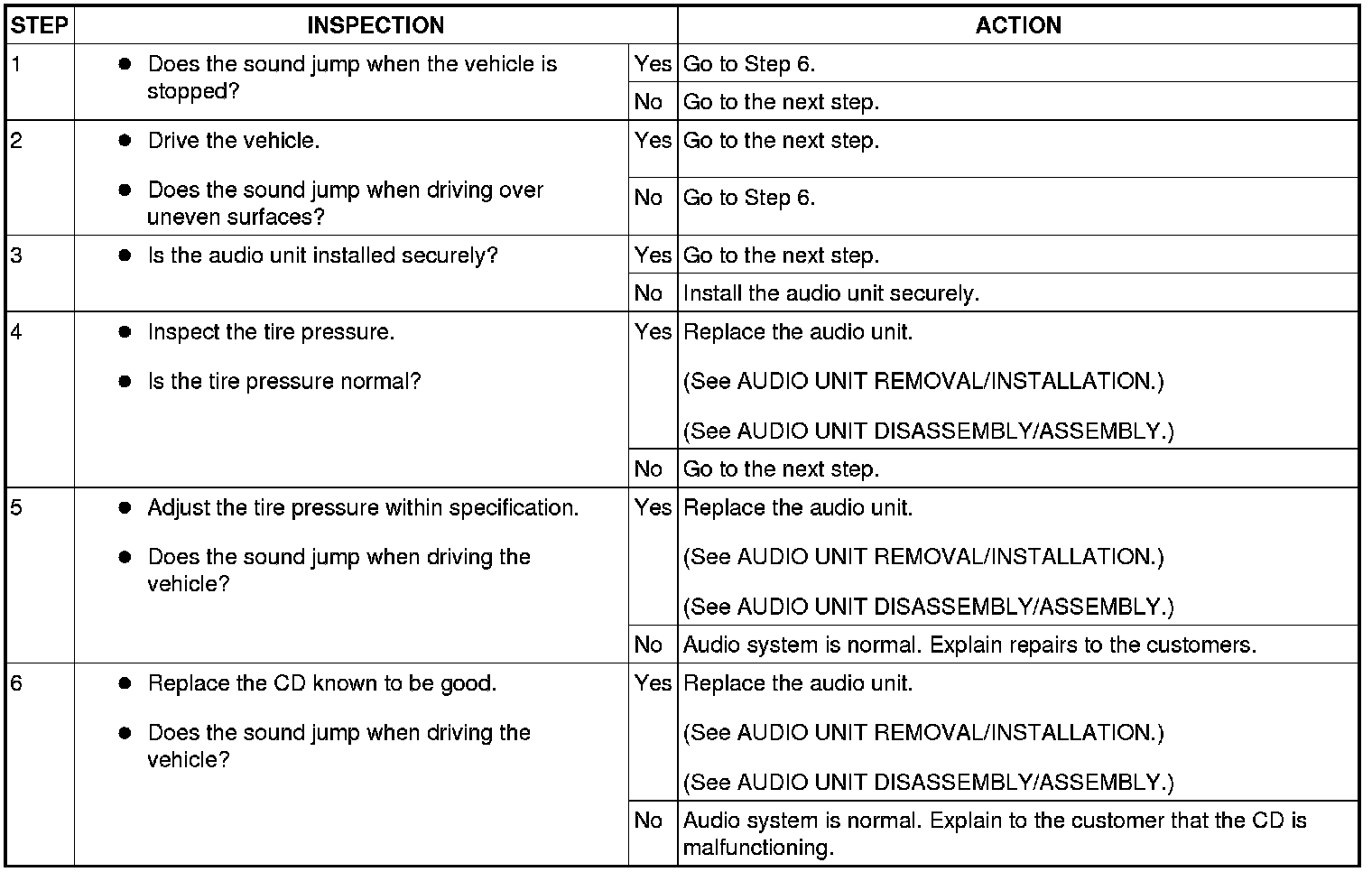

Diagnostic procedure
