Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Confirmation Steps >> Radio >> Confirmation Step 2: Antenna System Symptom (Example)

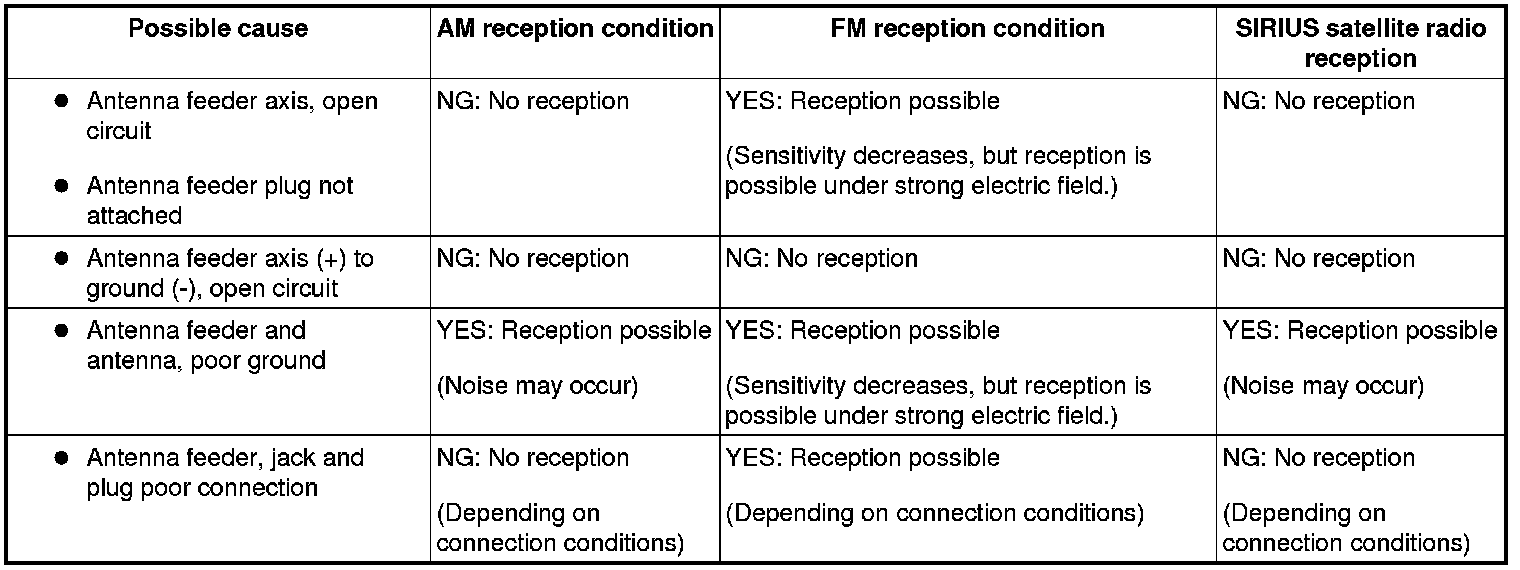

Confirmation Step 2: Antenna System Symptom (Example)





CONFIRMATION STEP 2: ANTENNA SYSTEM SYMPTOM (EXAMPLE) [RADIO]
