Confirmation Step 1: Audio Panel Switch Confirmation

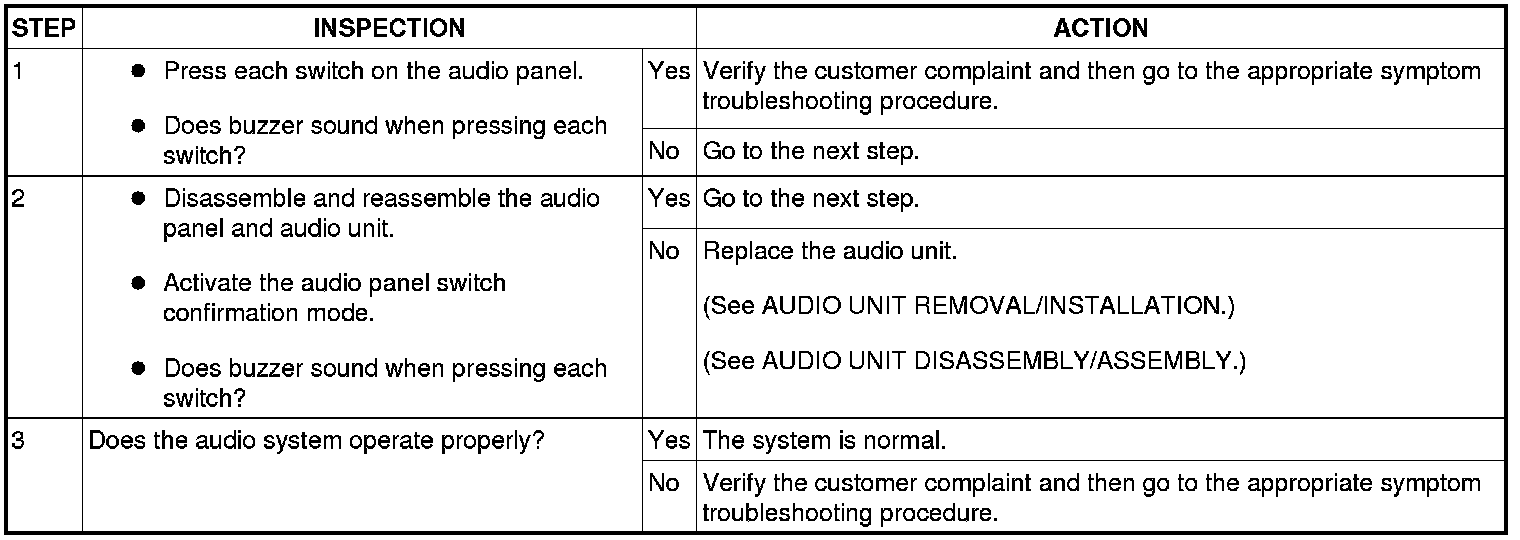

CONFIRMATION STEP 1: AUDIO PANEL SWITCH CONFIRMATION [ENTIRE AUDIO SYSTEM]

- Verify the customer complaint and identify either the audio panel malfunction or audio unit malfunction.

How to activate audio panel switch inspection mode

1. Switch the ignition to ACC or ON.

2. Turn the audio unit power to ON.

3. While pressing the POWER/VOLUME switch, simultaneously press the RDM/PRESET switch 3 for 0.2 s or more.

4. The audio panel switch inspection mode is now activated.
