Tweeter Inspection

TWEETER INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the inner garnish. Inner Garnish Removal/Installation

3. Remove the tweeter. Tweeter Removal/Installation

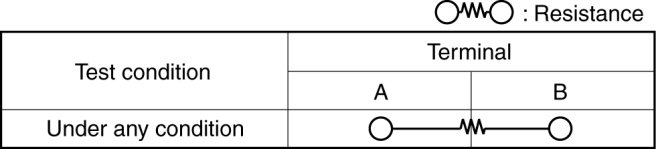

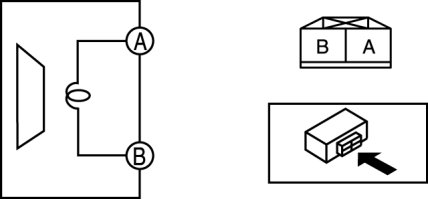

4. Verify the resistance between tweeter terminals.






- If not within the specification, replace the tweeter.





Resistance
- Without Bose(R): 3.4-4.6 ohms
- With Bose(R): 3.06-3.74 ohms
