Rear Speaker Inspection

REAR SPEAKER INSPECTION

4SD

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Rear seat cushion Rear Seat Cushion Removal/Installation

b. Rear scuff plate Rear Scuff Plate Removal/Installation

c. Tire house trim Tire House Trim Removal/Installation

d. C-pillar trim C-Pillar Trim Removal/Installation

e. Rear package trim Service and Repair

f. Rear speaker Rear Speaker Removal/Installation

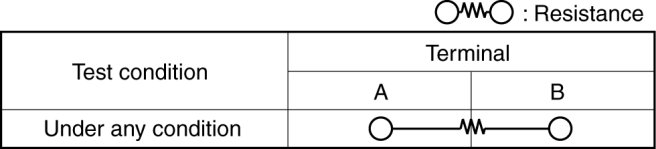

3. Verify the resistance between the rear speaker terminals.






- If not within the specification, replace the rear speaker.






Resistance
- 3.24-3.96 ohms

5HB

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Rear scuff plate Rear Scuff Plate Removal/Installation

b. Tire house trim Tire House Trim Removal/Installation

c. Trunk side upper trim

d. Trunk side trim

e. C-pillar trim C-Pillar Trim Removal/Installation

f. Rear speaker Rear Speaker Removal/Installation

3. Verify the resistance between the rear speaker terminals.






- If not within the specification, replace the rear speaker.






Resistance
- 3.24-3.96 ohms
