Rear Door Speaker Inspection

REAR DOOR SPEAKER INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the rear door trim. Rear Door Trim Removal/Installation

3. Remove the rear door speaker. Rear Door Speaker Removal/Installation

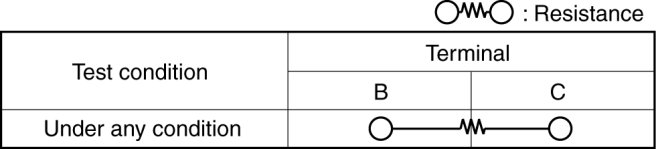

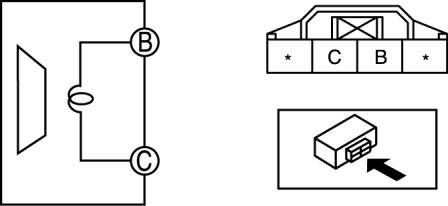

4. Verify the resistance between the rear door speaker terminals.






- If not within the specification, replace the rear door speaker.






Resistance
- Without Bose(R): 3.4-4.6 ohms
- With Bose(R): 2.89-3.91 ohms
