Bass-Box Inspection

BASS-BOX INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

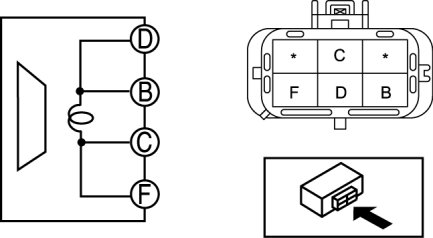

2. Disconnect the connector. Bass-Box Removal/Installation

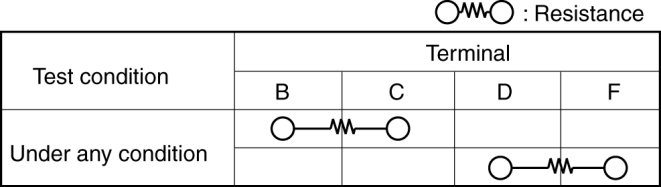

3. Verify the resistance between bass-box terminals.






- If not within the specification, replace the bass-box.






Resistance
- 0.9-1.1 ohms
