Tweeter Removal/Installation





TWEETER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the inner garnish. Inner Garnish Removal/Installation

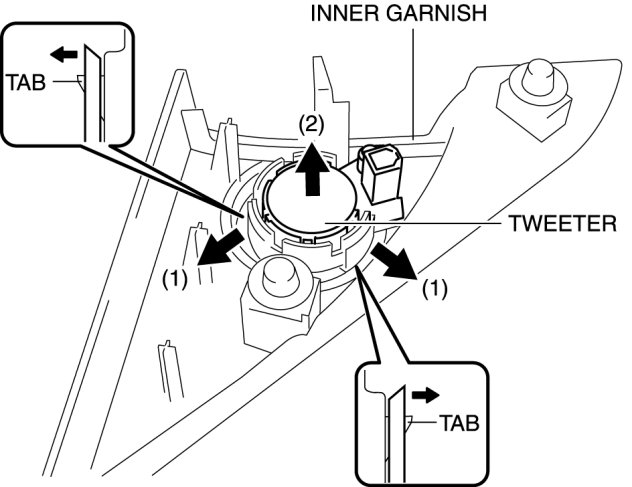

3. Remove the tweeter in the direction of the arrow shown in the figure.






4. Install in the reverse order of removal.
