Rear Speaker Removal/Installation

REAR SPEAKER REMOVAL/INSTALLATION

4SD

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Rear seat cushion Rear Seat Cushion Removal/Installation

b. Rear scuff plate Rear Scuff Plate Removal/Installation

c. Tire house trim Tire House Trim Removal/Installation

d. C-pillar trim C-Pillar Trim Removal/Installation

e. Rear package trim Service and Repair

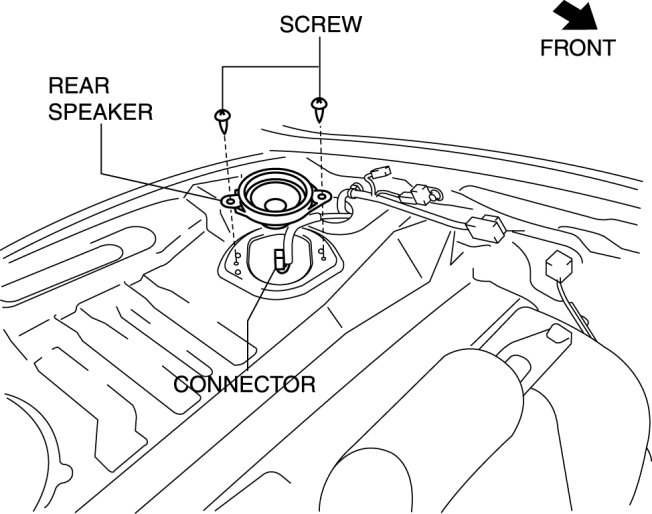

3. Remove the screw.






4. Disconnect the connector.

5. Remove the rear speaker.

6. Install in the reverse order of removal.

5HB

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Rear scuff plate Rear Scuff Plate Removal/Installation

b. Tire house trim Tire House Trim Removal/Installation

c. Trunk side upper trim

d. Trunk side trim

e. C-pillar trim C-Pillar Trim Removal/Installation

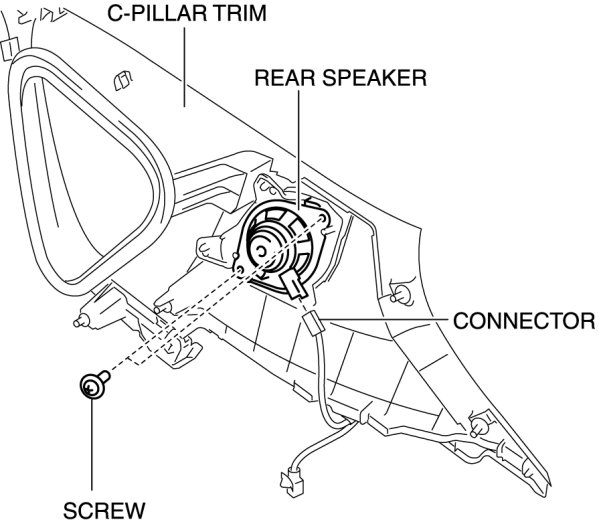

3. Remove the screw.






4. Disconnect the connector.

5. Remove the rear speaker.

6. Install in the reverse order of removal.
