Rear Center Speaker Removal/Installation

REAR CENTER SPEAKER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Rear seat cushion Rear Seat Cushion Removal/Installation

b. Rear scuff plate Rear Scuff Plate Removal/Installation

c. Tire house trim Tire House Trim Removal/Installation

d. C-pillar trim C-Pillar Trim Removal/Installation

e. Rear package trim Service and Repair

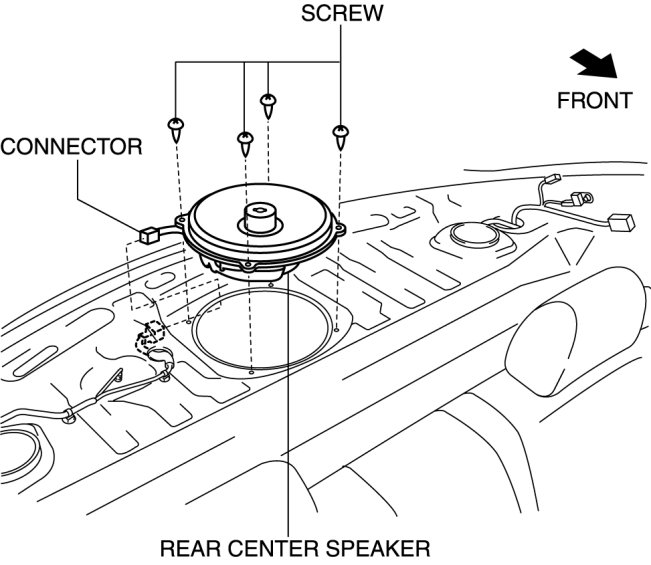

3. Remove the screw.






4. Disconnect the connector.

5. Remove the rear center speaker.

6. Install in the reverse order of removal.
