Front Center Speaker Removal/Installation

FRONT CENTER SPEAKER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Upper column cover Service and Repair

b. Instrument cluster Removal and Replacement

c. Center panel Center Panel Removal/Installation

d. Center cover Center Cover Removal/Installation

e. Dashboard upper panel Dashboard Upper Panel Removal/Installation

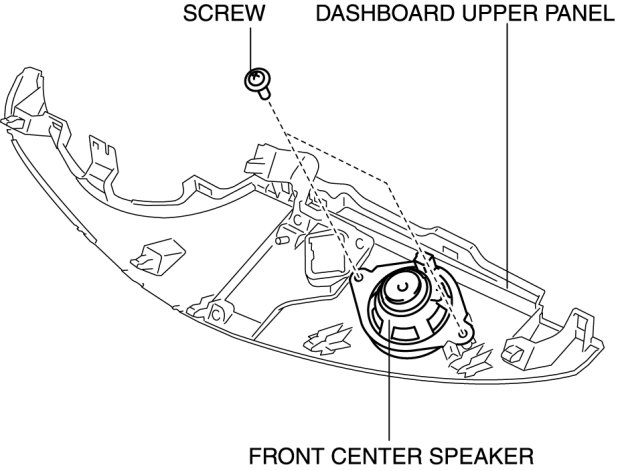

3. Remove the screw.






4. Remove the front center speaker.

5. Install in the reverse order of removal.
