Audio Unit Removal/Installation

AUDIO UNIT REMOVAL/INSTALLATION

CAUTION:
- When installing the audio unit, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.

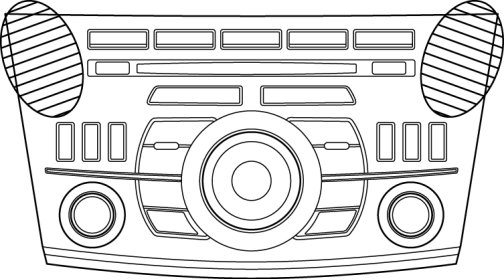

- Pressing the switch area of the audio unit when installing it could result in a malfunction. Therefore only press the hatched area shown in the figure.






1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the center panel. Center Panel Removal/Installation

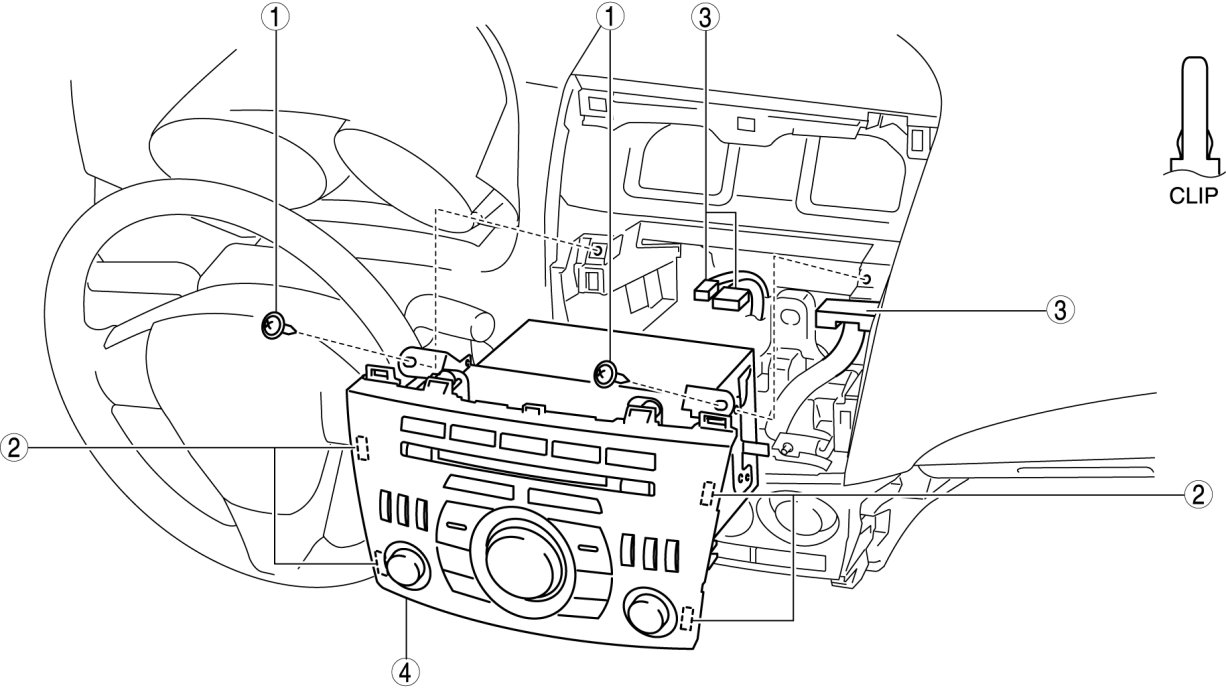

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
