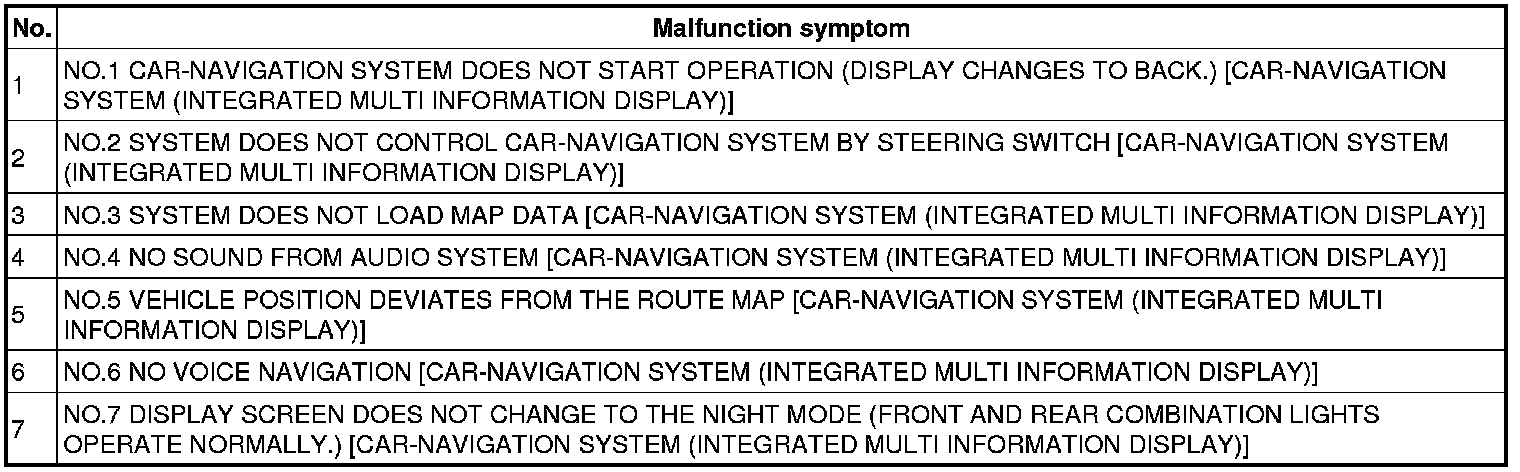

TROUBLESHOOTING INDEX [CAR-
NAVIGATION SYSTEM
(INTEGRATED MULTI INFORMATION DISPLAY)]

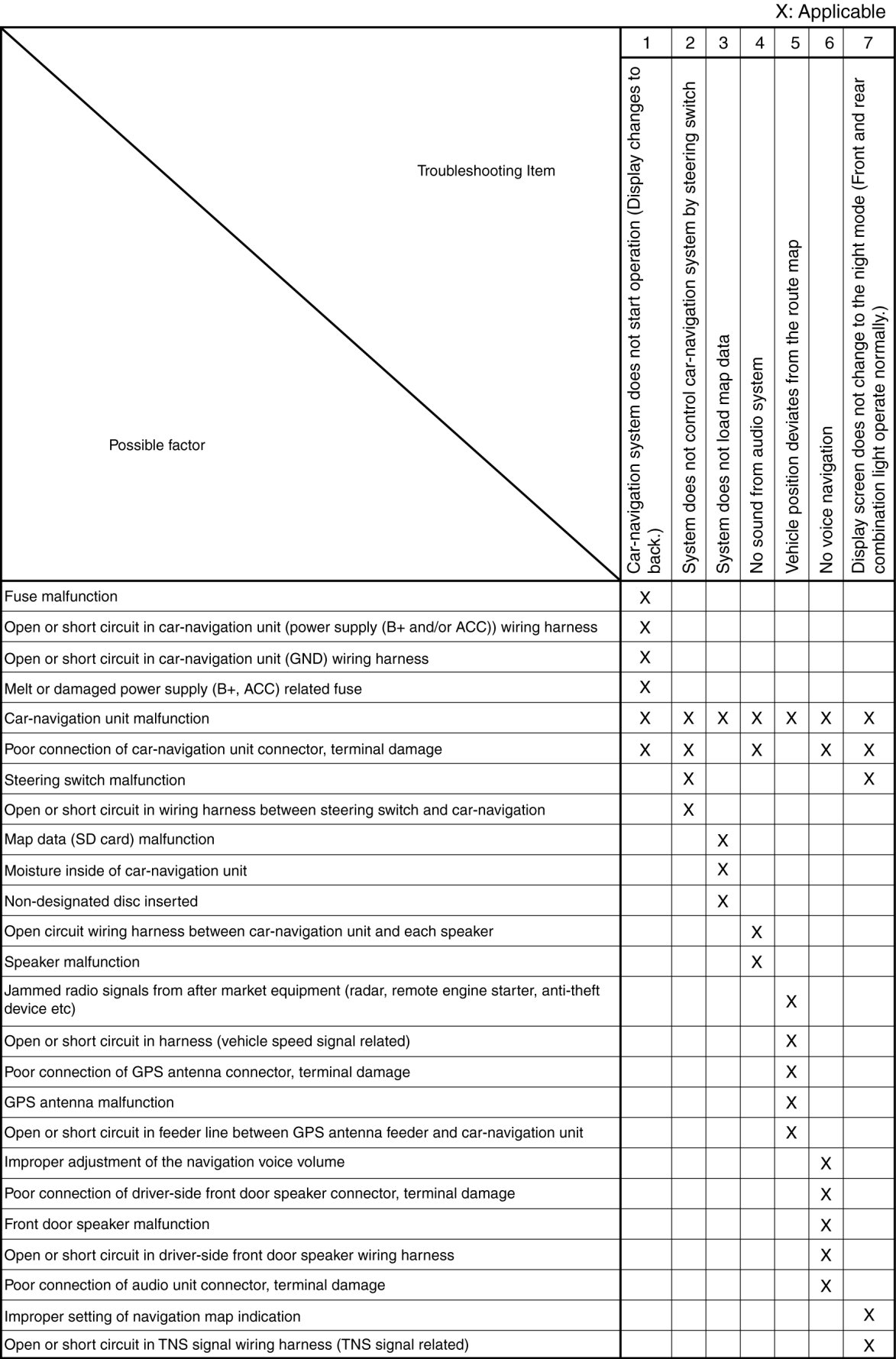

Quick diagnostic chart
