No. 6 No Voice Navigation
No. 6 No Voice Navigation

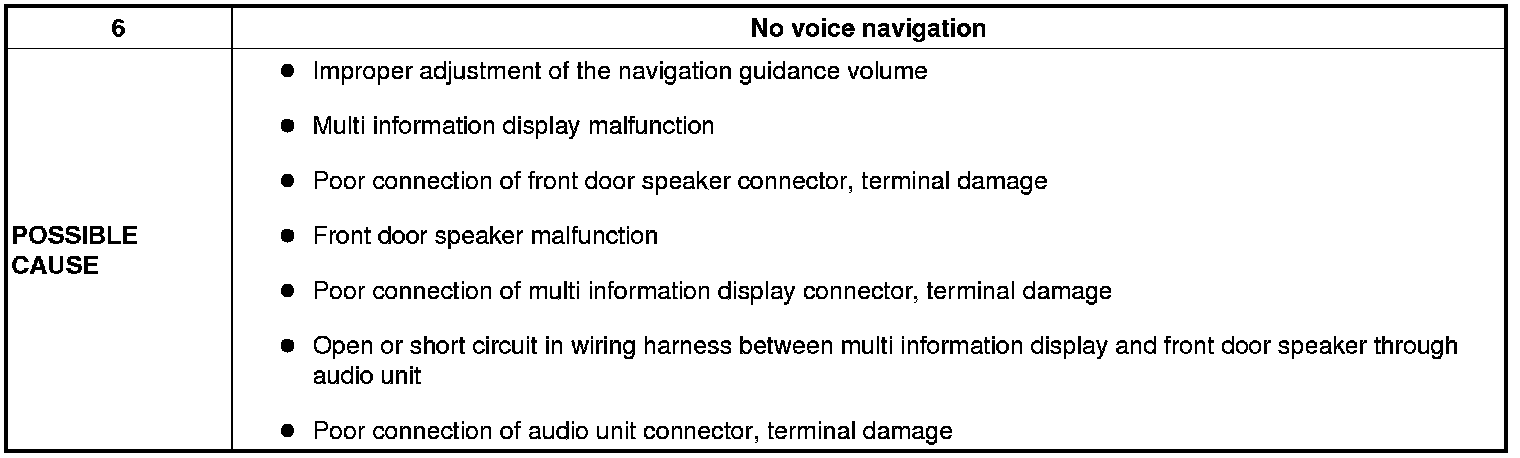

NO.6 NO VOICE NAVIGATION [CAR-
NAVIGATION SYSTEM
(INTEGRATED MULTI INFORMATION DISPLAY)]

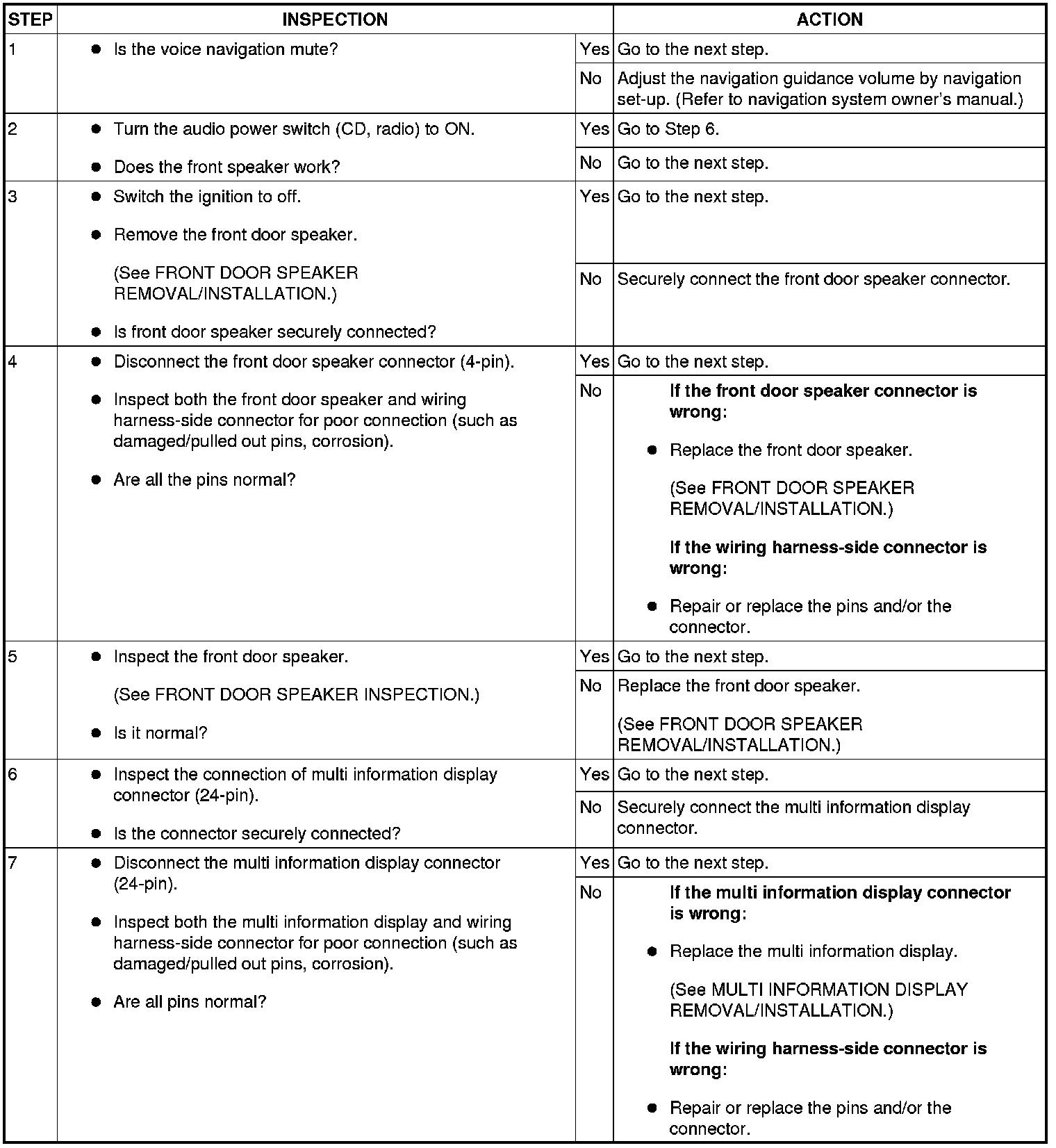

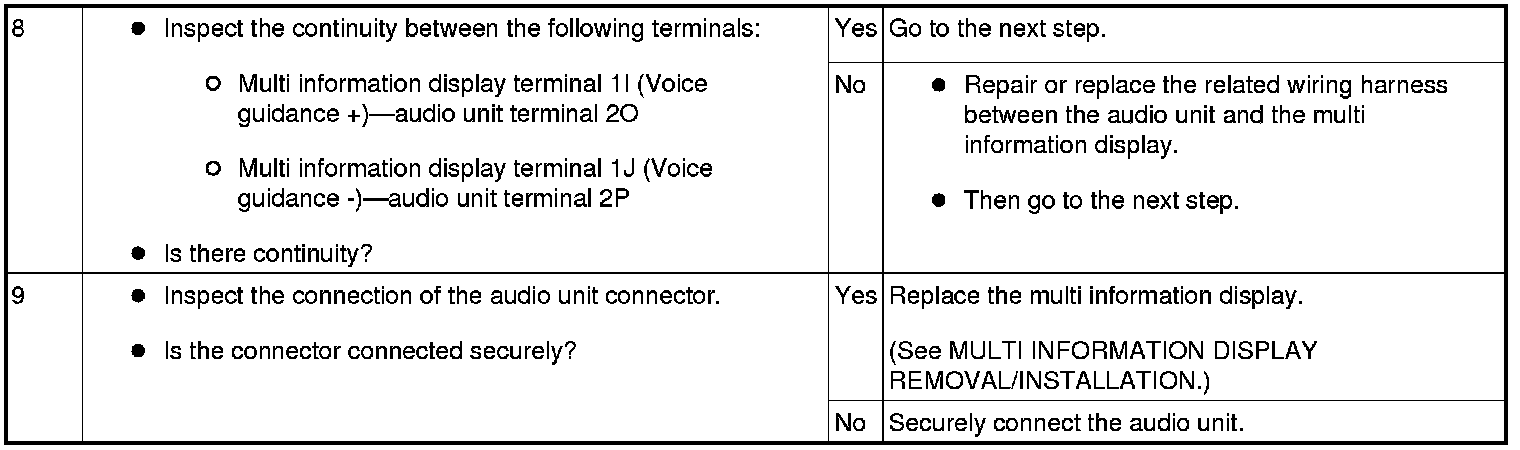

Diagnostic procedure
