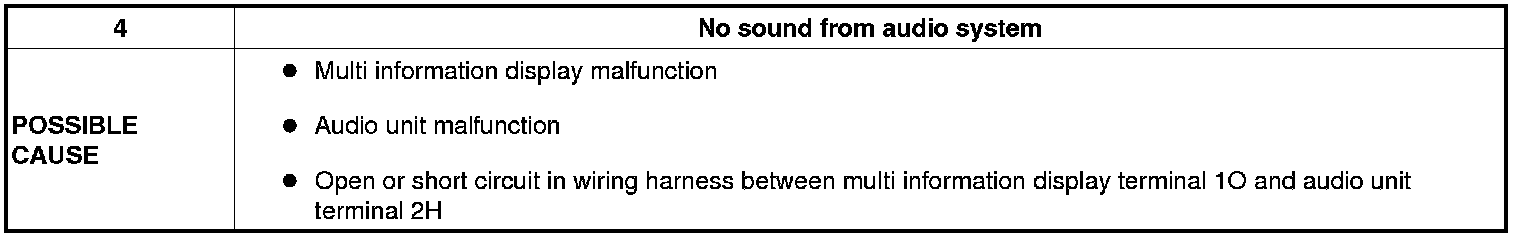

No. 4 No Sound From Audio System

NO.4 NO SOUND FROM AUDIO SYSTEM [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

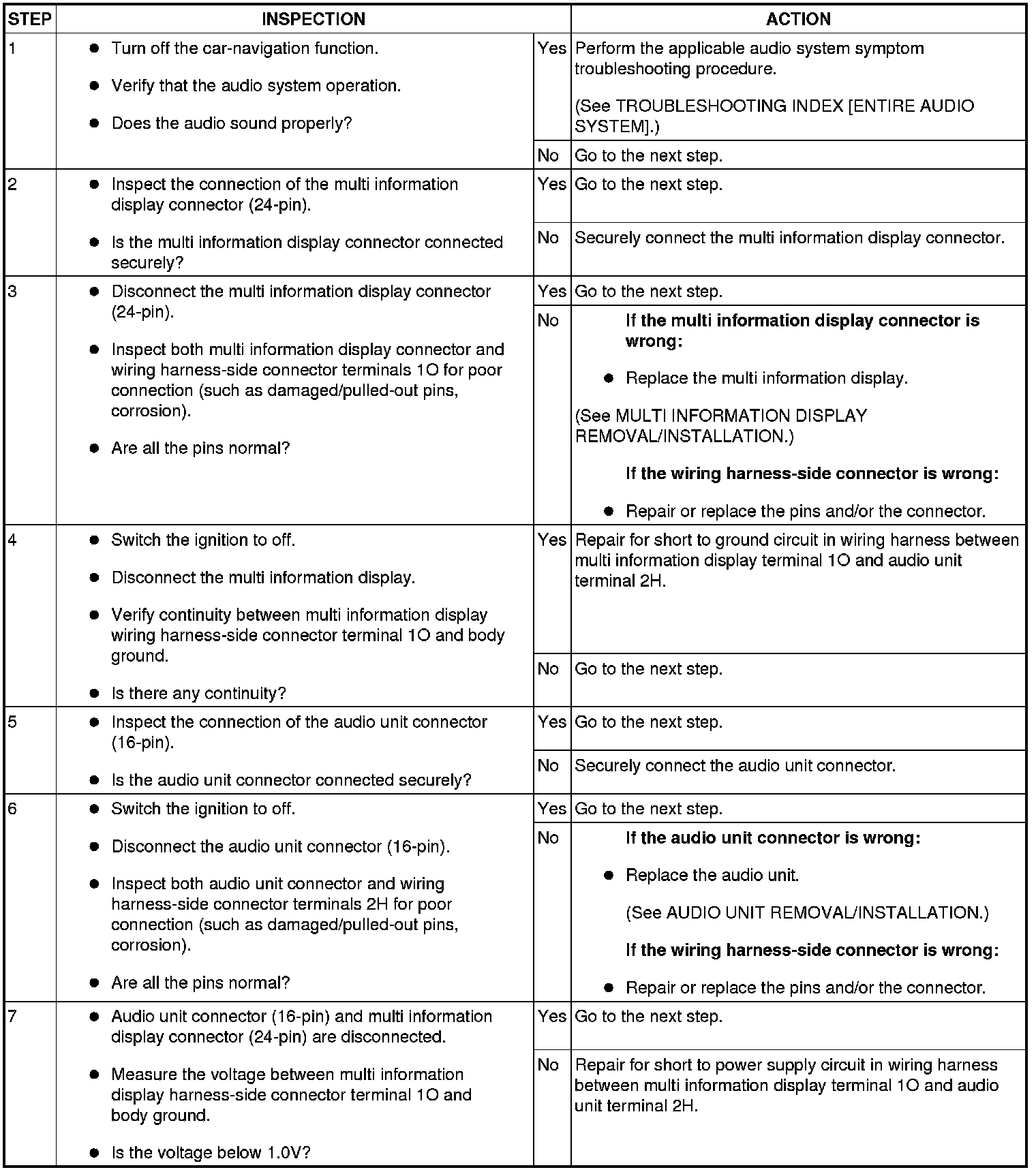

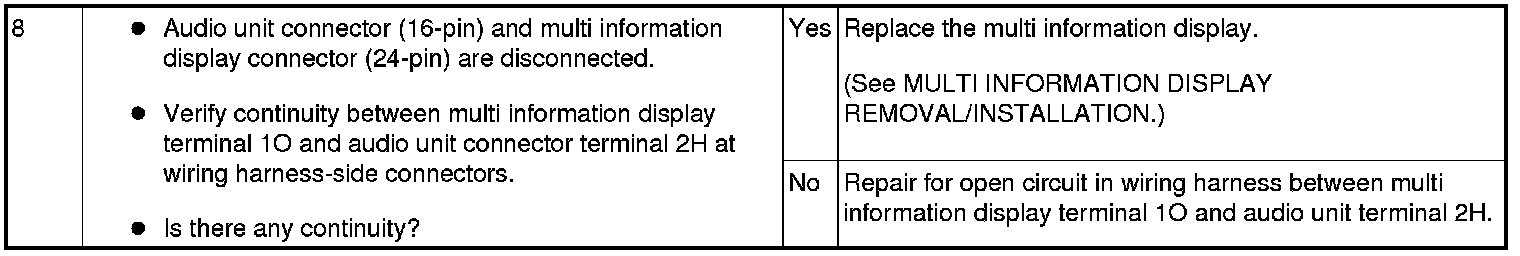

Diagnostic procedure
