No. 2 System Does Not Control Navigation System By Steering Switch

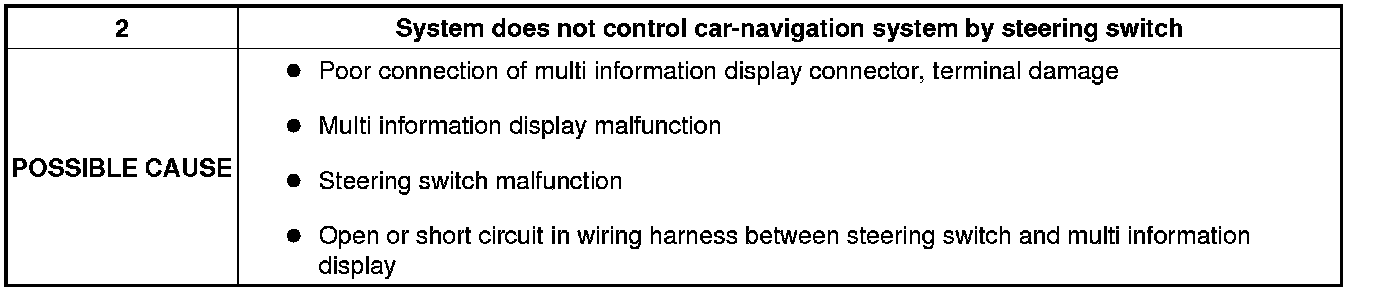

NO.2 SYSTEM DOES NOT CONTROL CAR-NAVIGATION SYSTEM BY STEERING SWITCH [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

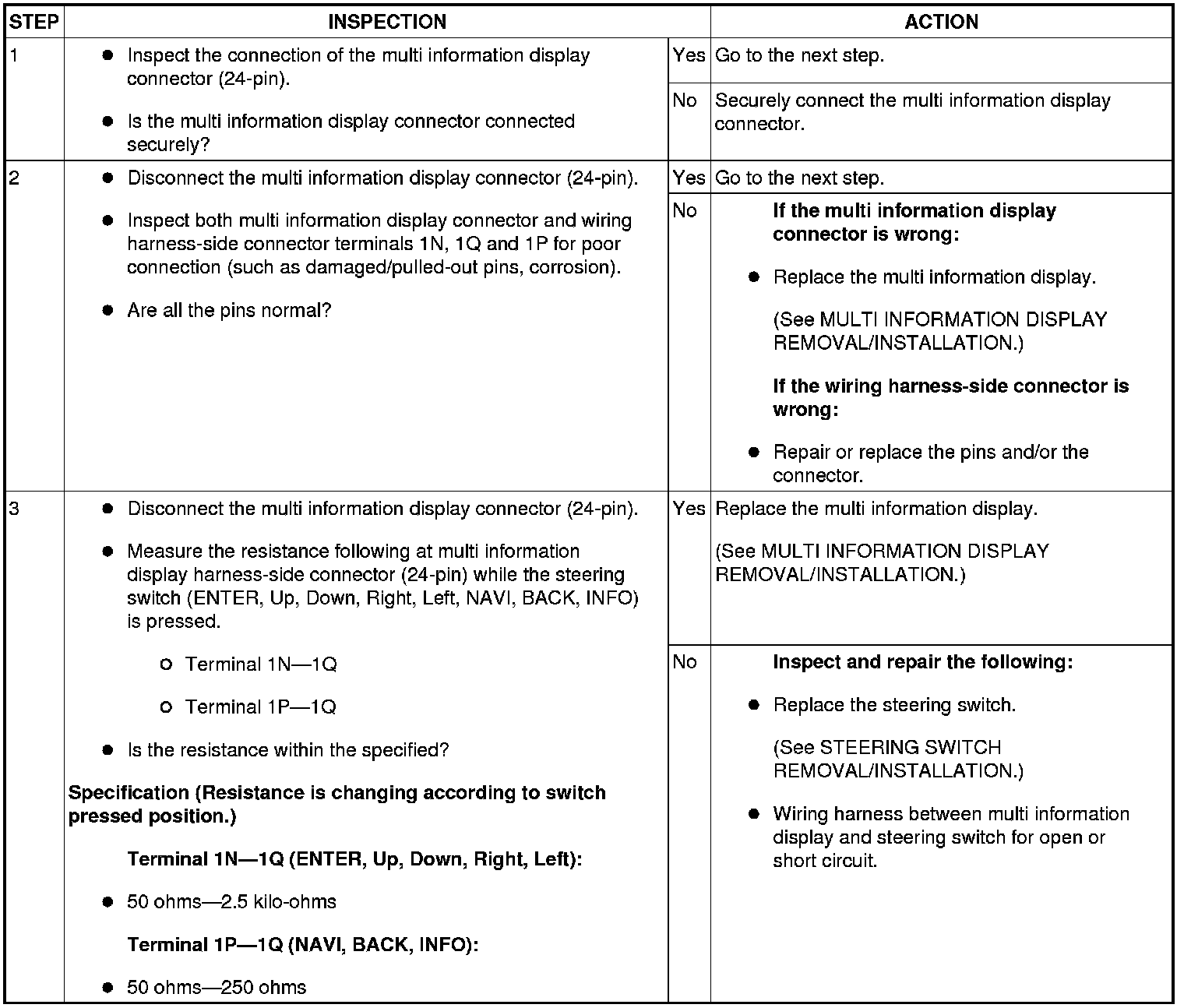

Diagnostic procedure
