No. 1 Car-Navigation System Does Not Start Operation (Display Changes To Back.)





NO.1 CAR-NAVIGATION SYSTEM DOES NOT START OPERATION (DISPLAY CHANGES TO BACK.) [CAR-NAVIGATION SYSTEM (INTEGRATED MULTI INFORMATION DISPLAY)]

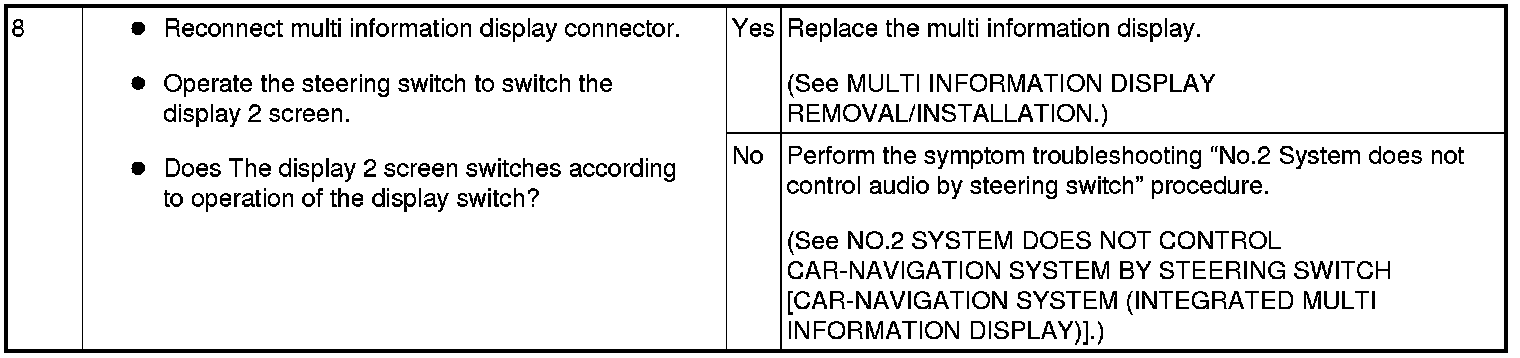

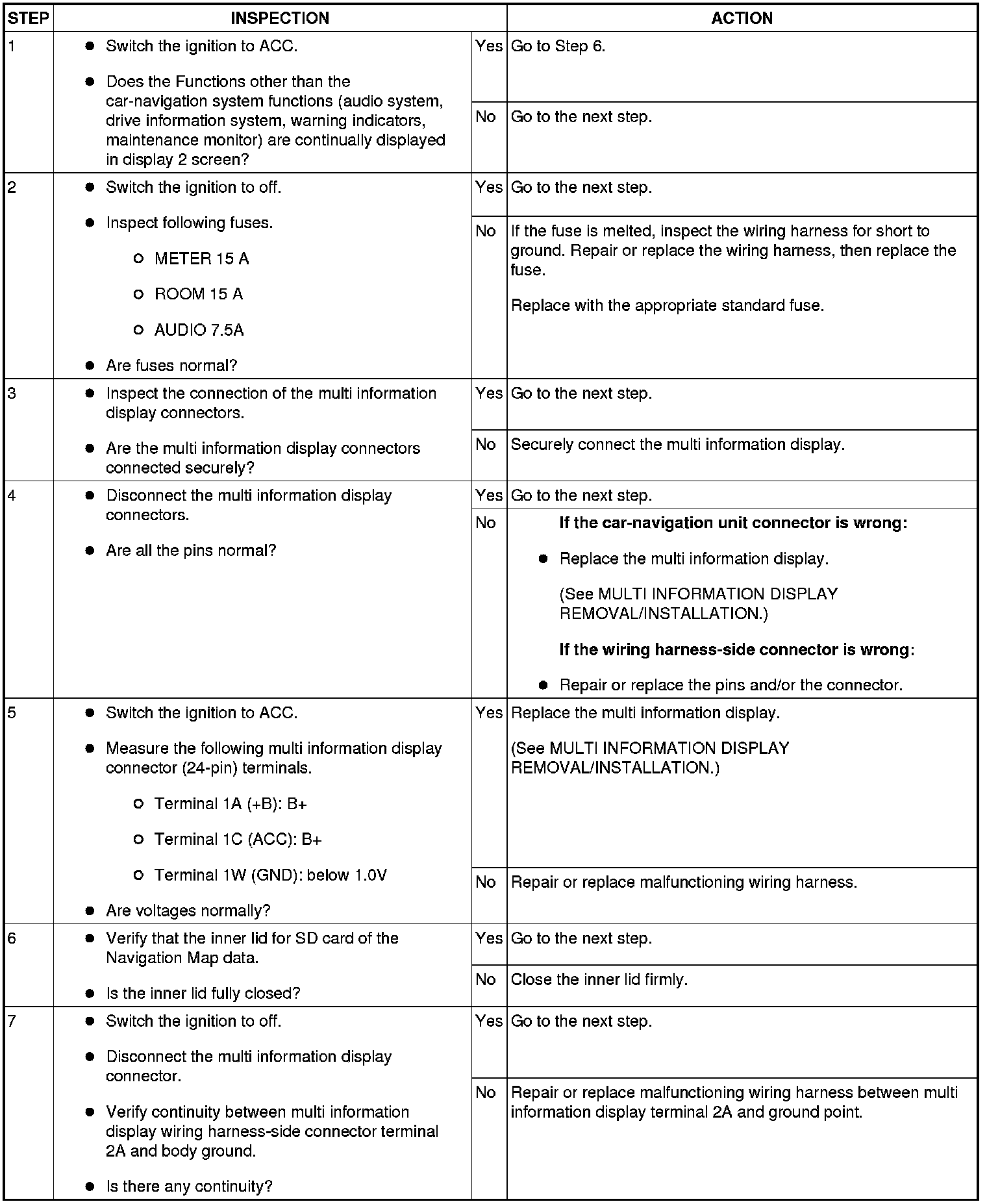

Diagnostic procedure
