Auxiliary Input / Output Jack: Testing and Inspection

AUXILIARY JACK INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Shift lever knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G35M-R] Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

c. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

d. Shift panel Shift Panel Removal/Installation

e. Side wall Side Wall Removal/Installation

f. Console Console Removal/Installation

g. Auxiliary jack Service and Repair

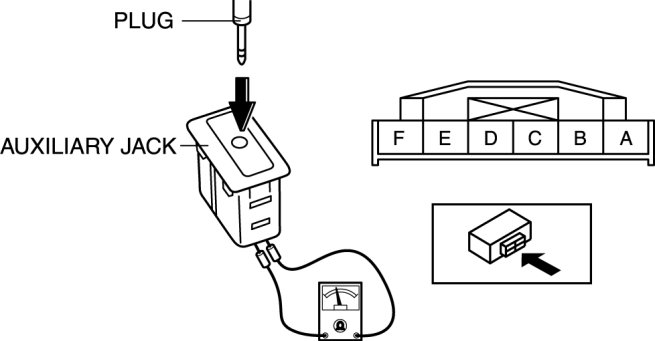

3. Connect a commercially-available nonresistant plug to the auxiliary jack.

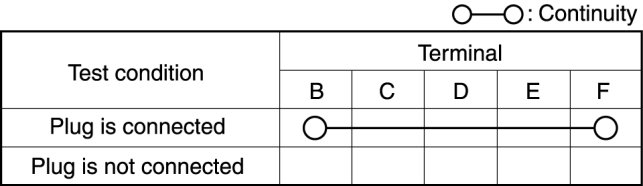

4. Verify that the continuity between the auxiliary jack terminals is as indicated in the table.






- If not as indicated in the table, replace the auxiliary jack.
