No. 9 BSM Warning Alarm Does Not Sound While BSM Indicator Light Flashes

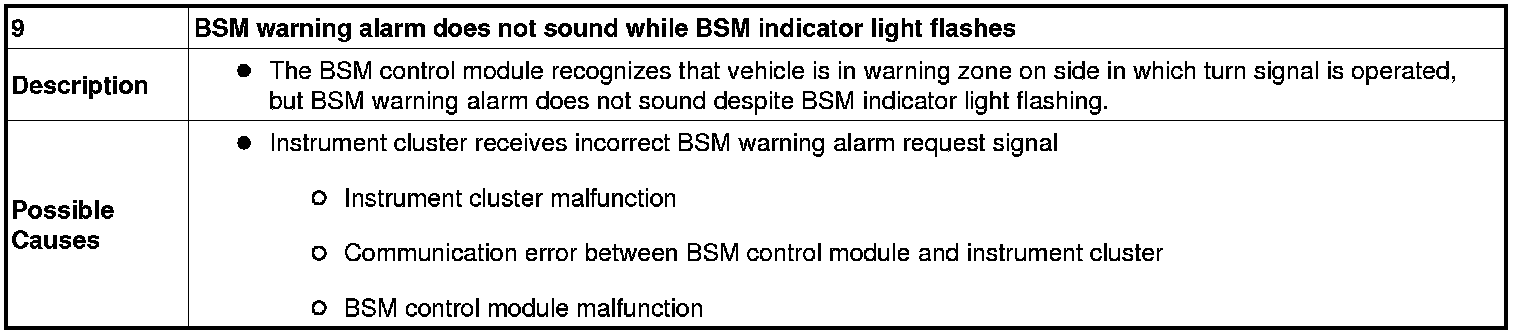

NO.9 BSM WARNING ALARM DOES NOT SOUND WHILE BSM INDICATOR LIGHT FLASHES [BLIND SPOT MONITORING (BSM)]

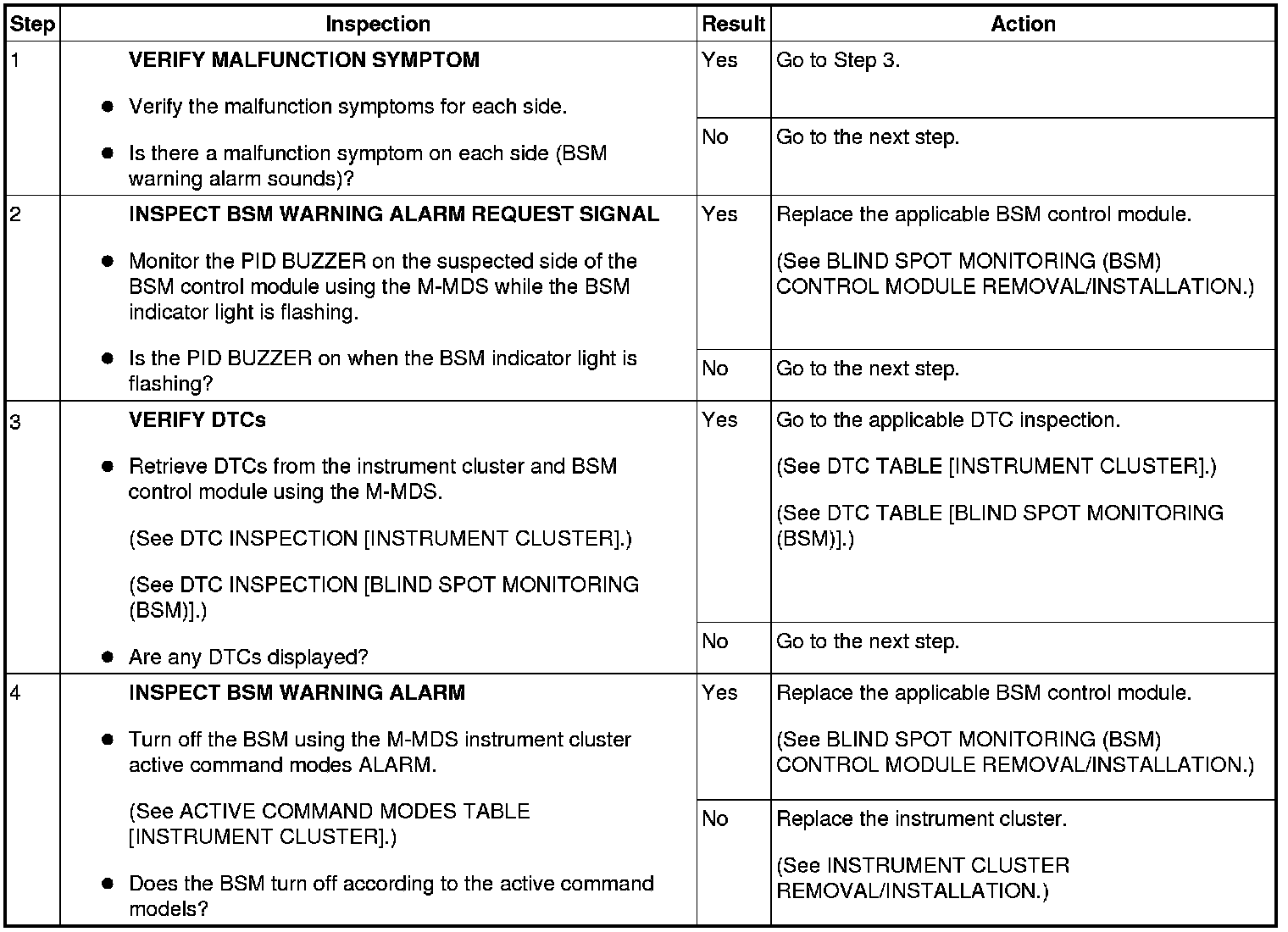

Diagnostic Procedure
