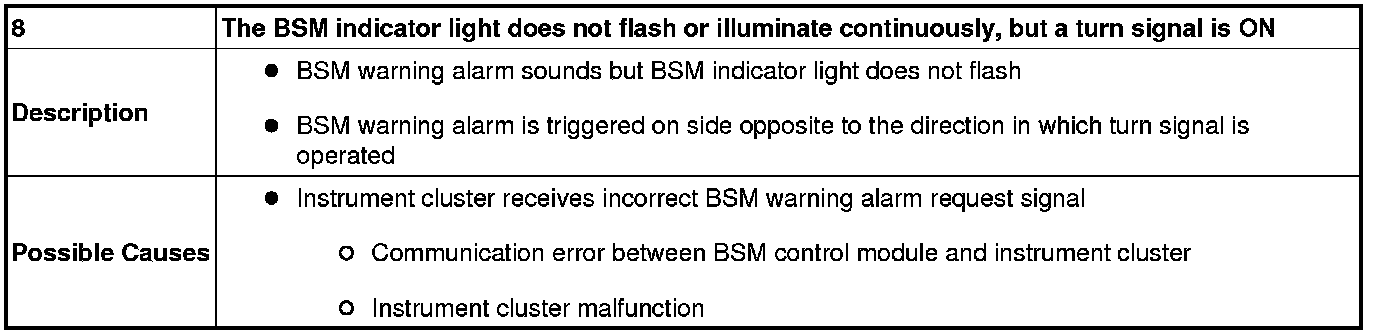

No. 8 BSM Indicator Light Does Not Flash Or Illuminate Continuously, But A Turn Signal Is ON





NO.8 THE BSM INDICATOR LIGHT DOES NOT FLASH OR ILLUMINATE CONTINUOUSLY, BUT A TURN SIGNAL IS ON [BLIND SPOT MONITORING (BSM)]

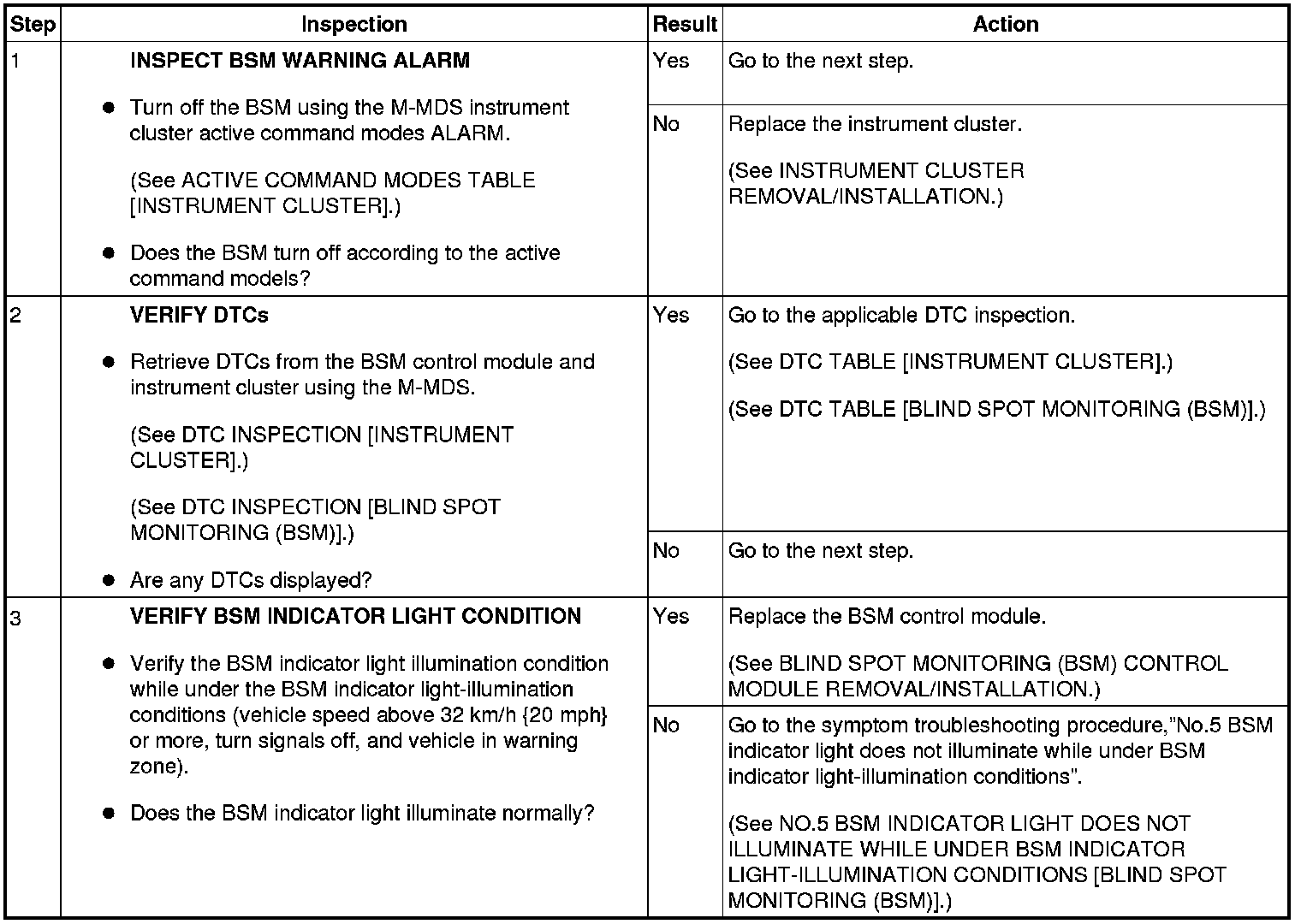

Diagnostic Procedure
