Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 6 BSM Indicator Light Flashes While Not Under BSM Indicator Light-Flashing Conditions

No. 6 BSM Indicator Light Flashes While Not Under BSM Indicator Light-Flashing Conditions

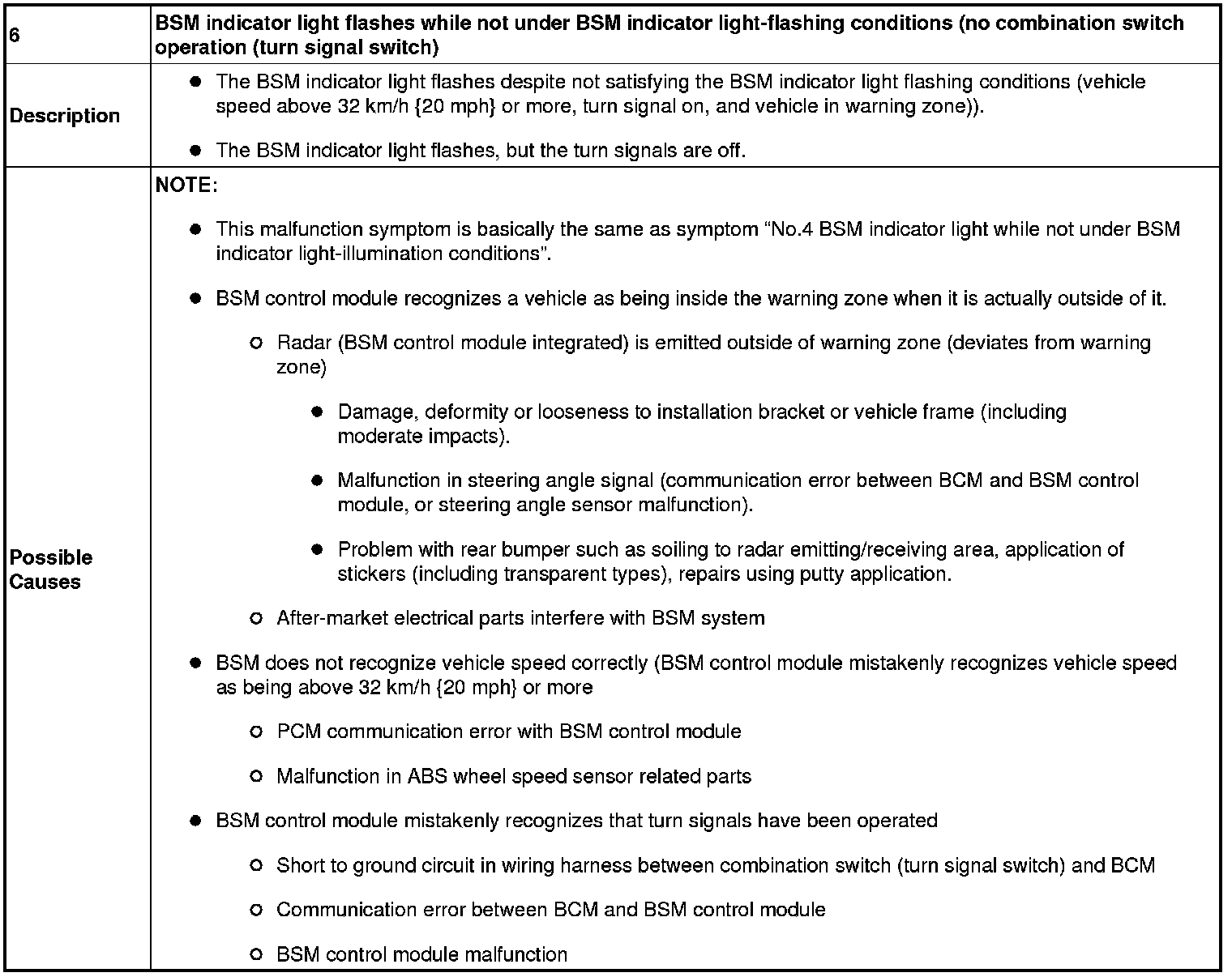

NO.6 BSM INDICATOR LIGHT FLASHES WHILE NOT UNDER BSM INDICATOR LIGHT-FLASHING CONDITIONS (NO COMBINATION SWITCH OPERATION (TURN SIGNAL SWITCH)) [BLIND SPOT MONITORING (BSM)]

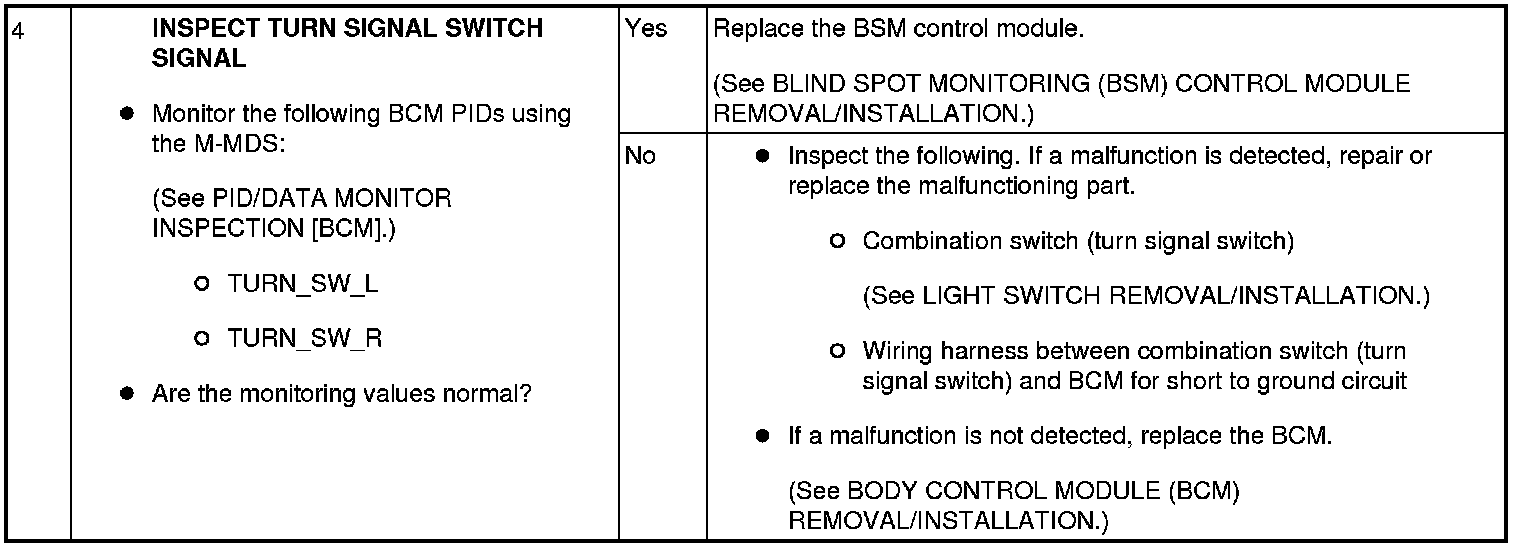

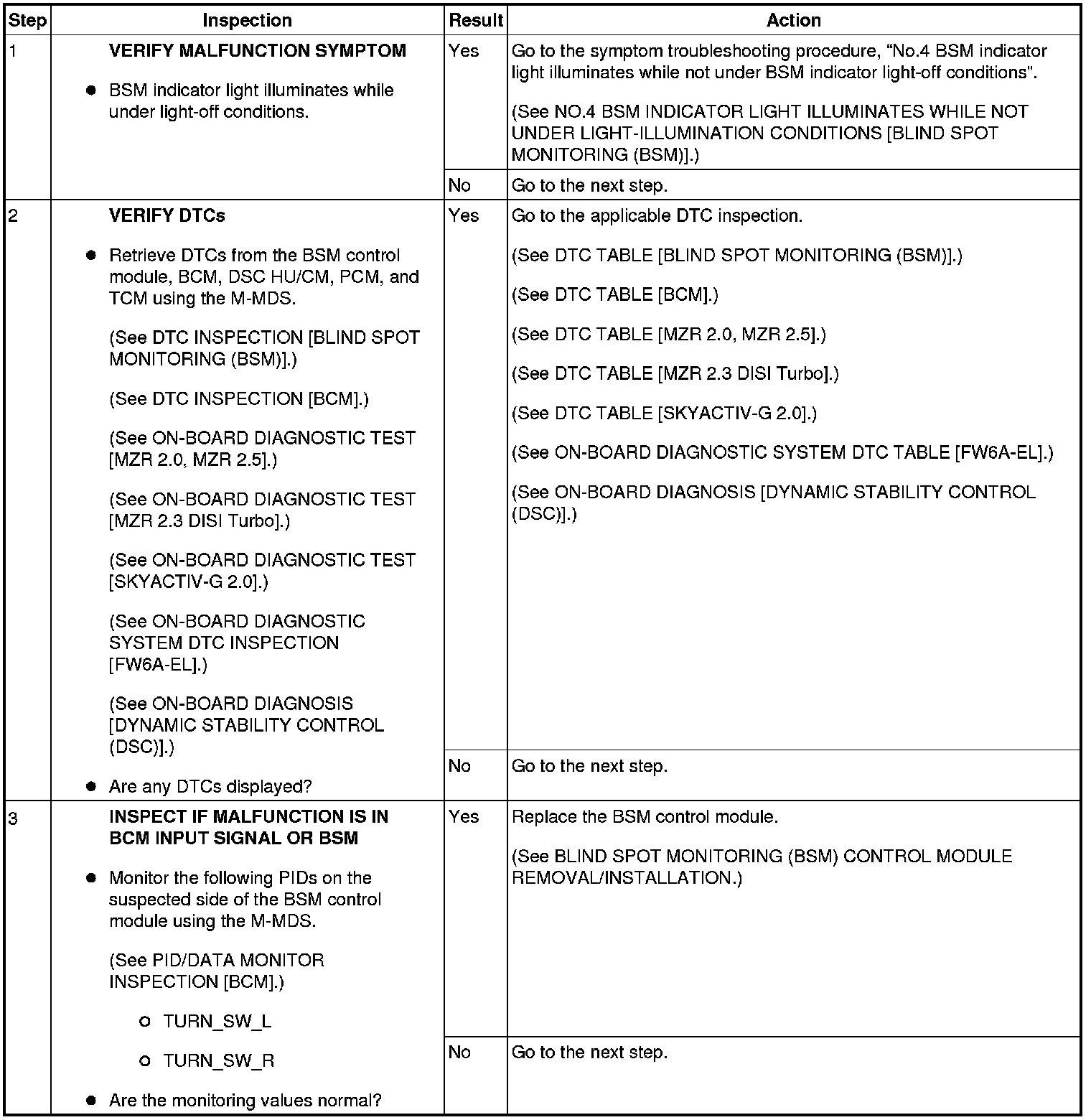

Diagnostic Procedure
