Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 5 BSM Indicator Light Does Not Illuminate While Under BSM Indicator Light-Illumination Conditions

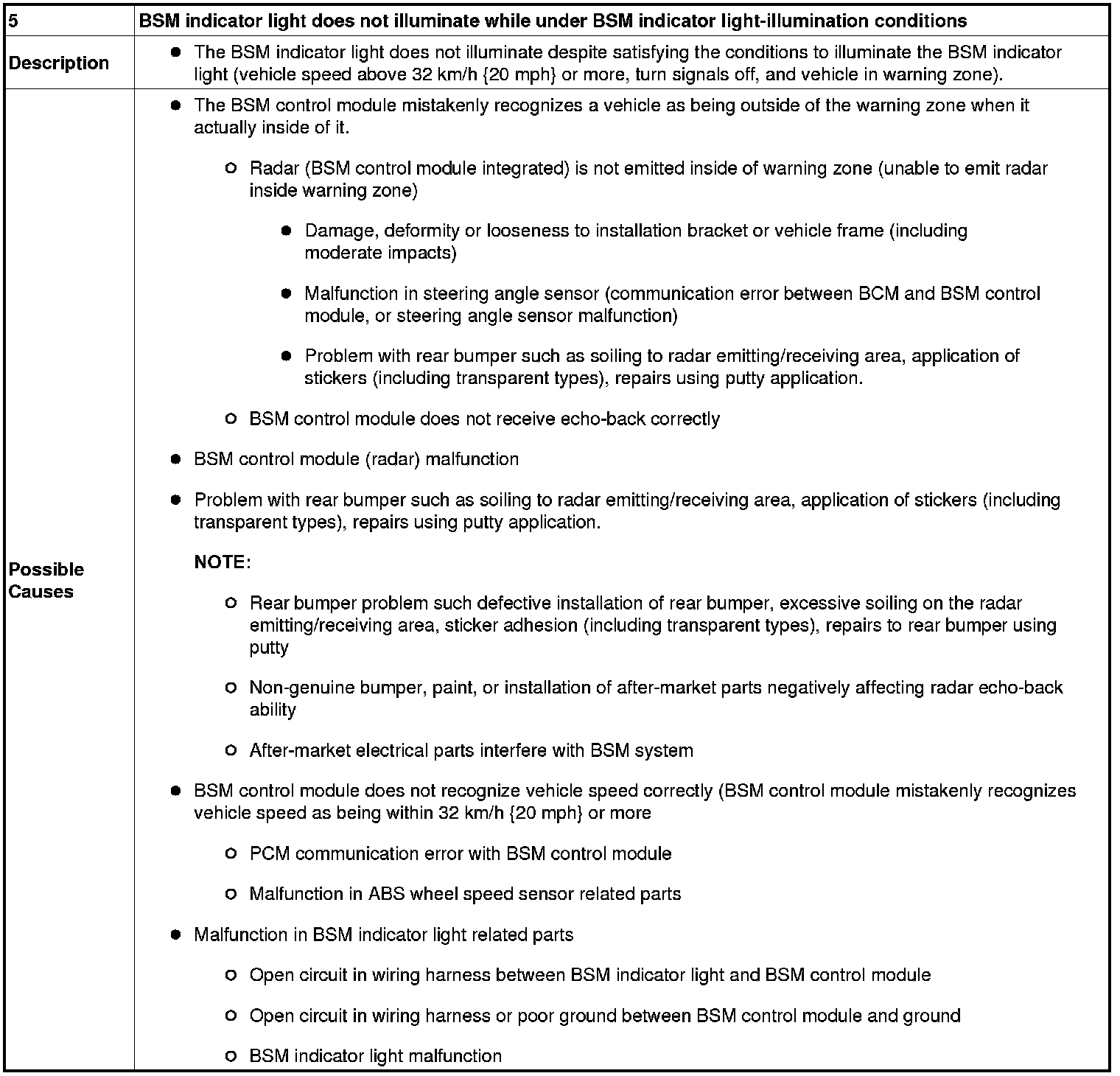

No. 5 BSM Indicator Light Does Not Illuminate While Under BSM Indicator Light-Illumination Conditions





NO.5 BSM INDICATOR LIGHT DOES NOT ILLUMINATE WHILE UNDER BSM INDICATOR LIGHT-ILLUMINATION CONDITIONS [BLIND SPOT MONITORING (BSM)]

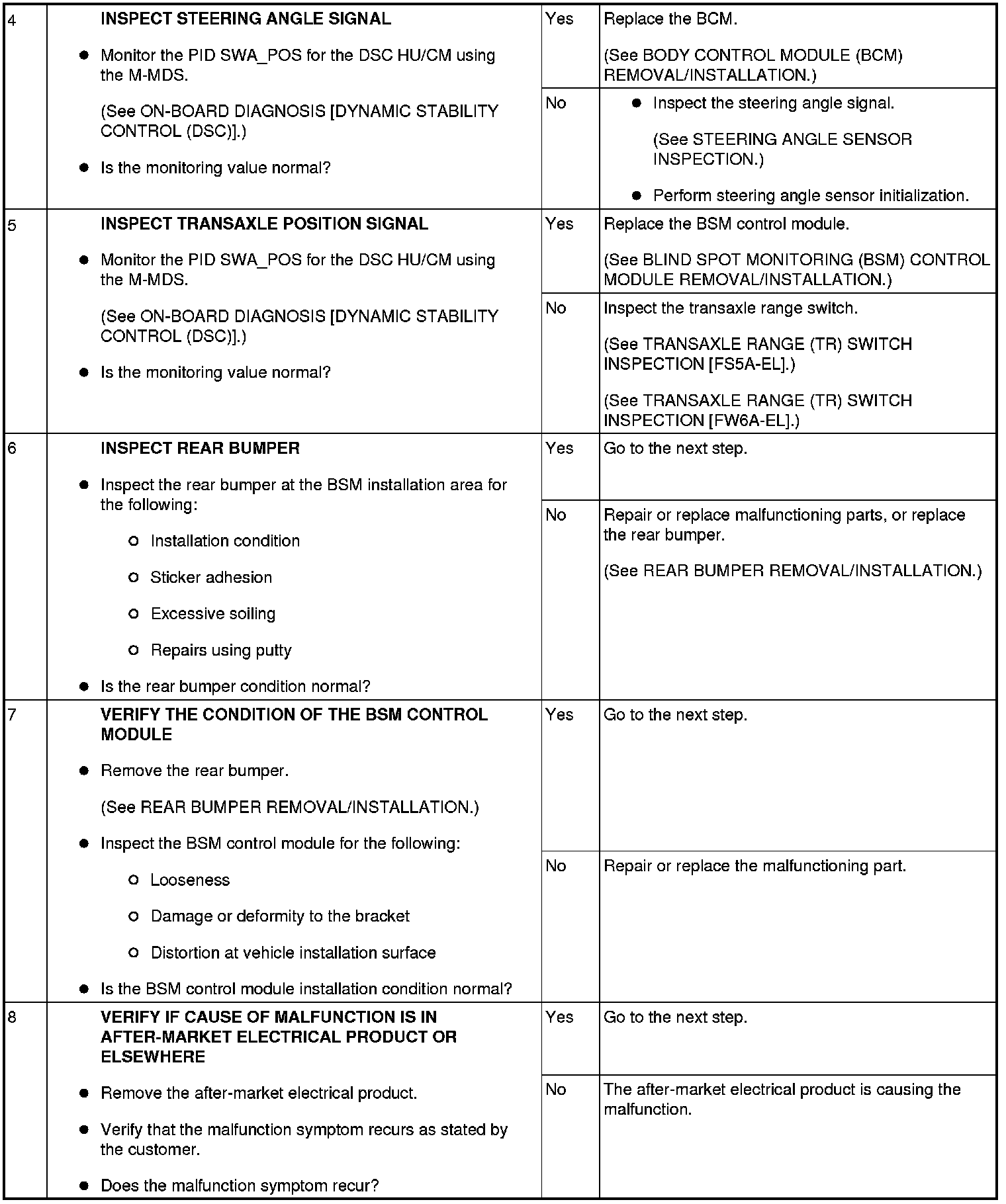

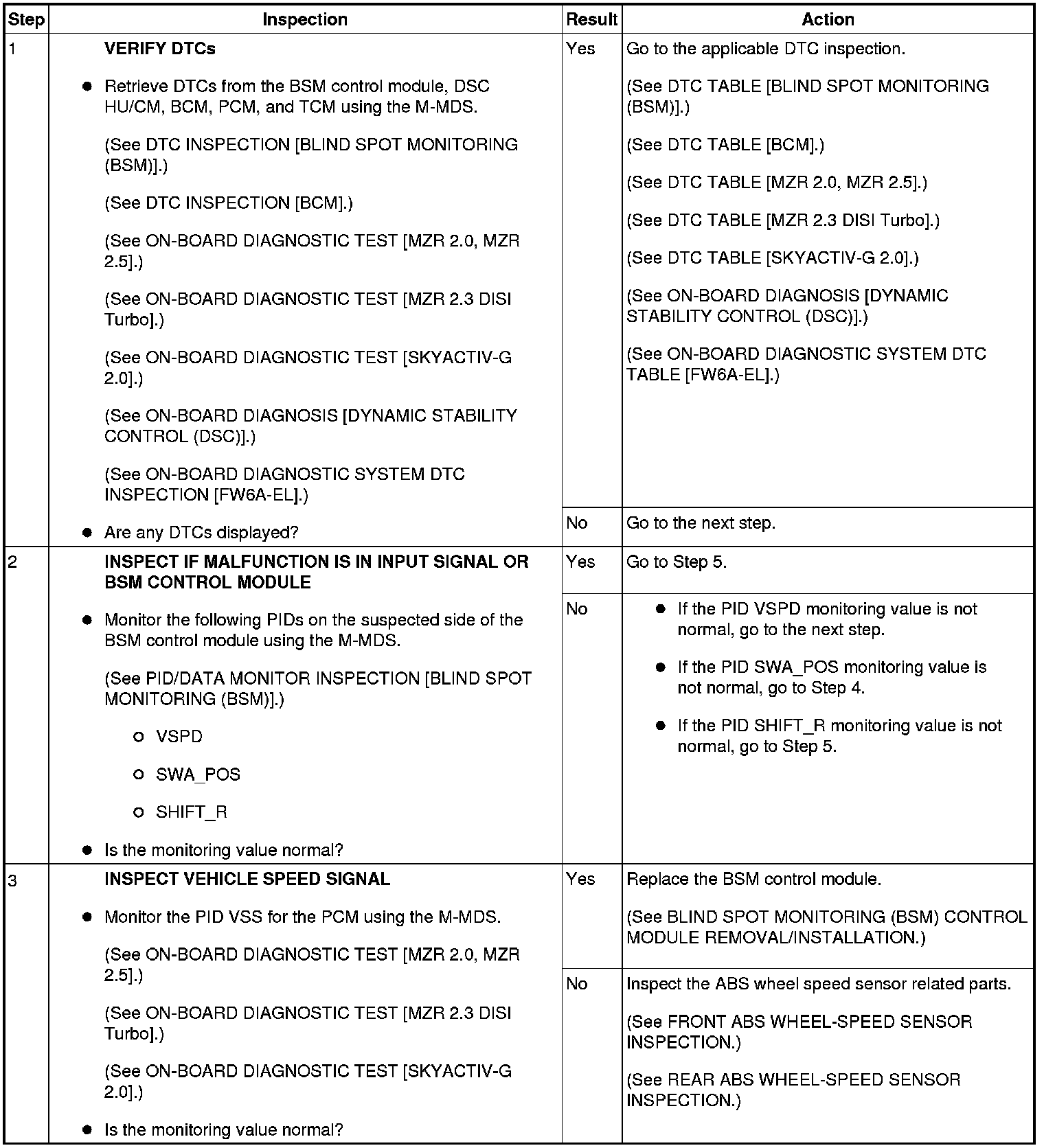

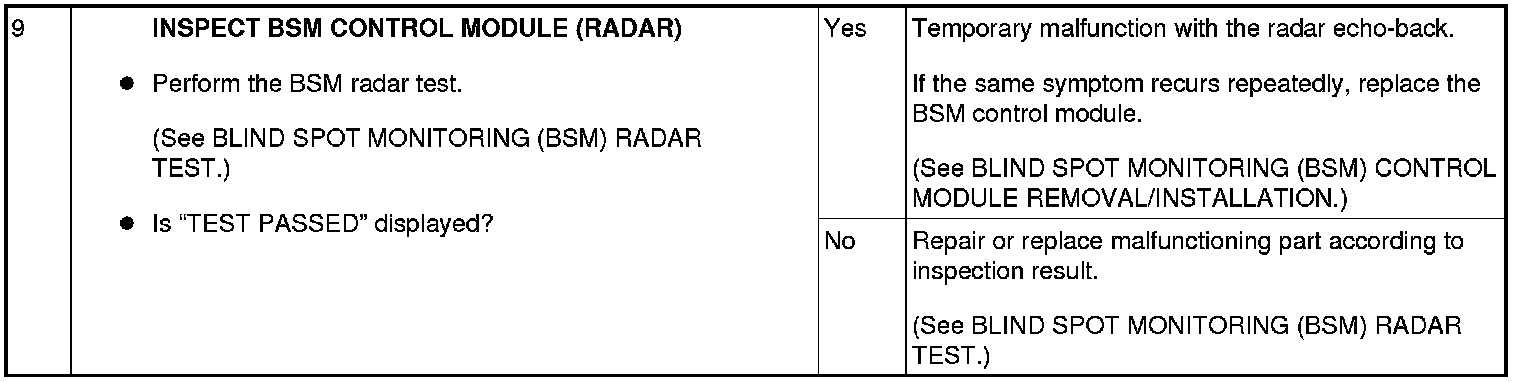

Diagnostic Procedure
