No. 3 BSM OFF Indicator Light Illuminates Continuously

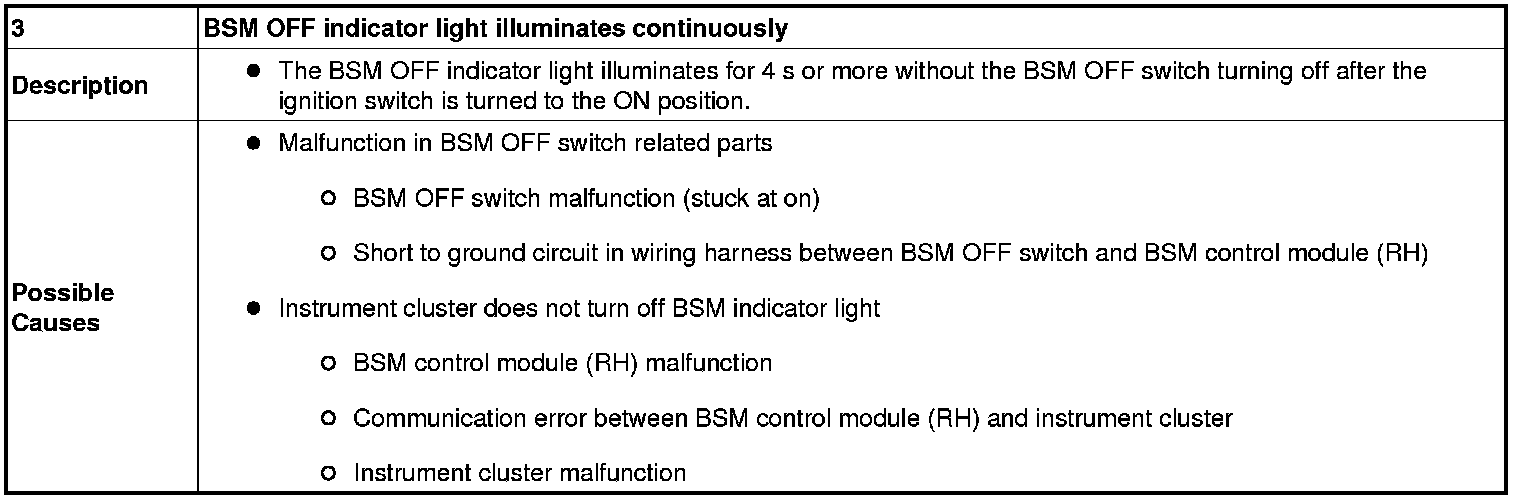

NO.3 BSM OFF INDICATOR LIGHT ILLUMINATES CONTINUOUSLY [BLIND SPOT MONITORING (BSM)]

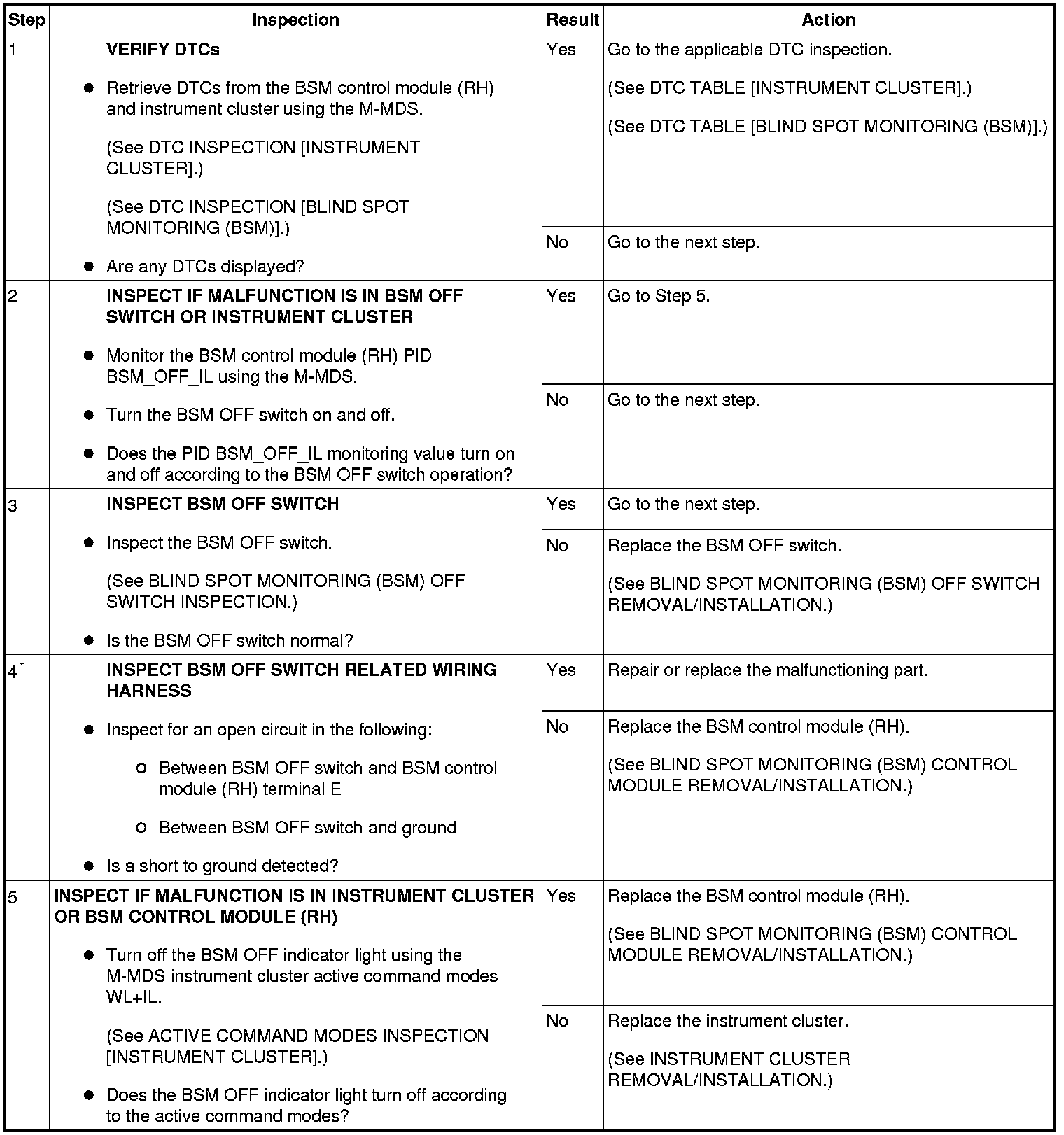

Diagnostic Procedure
