Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 2 BSM OFF Indicator Light Does Not Illuminate While BSM System Is OFF

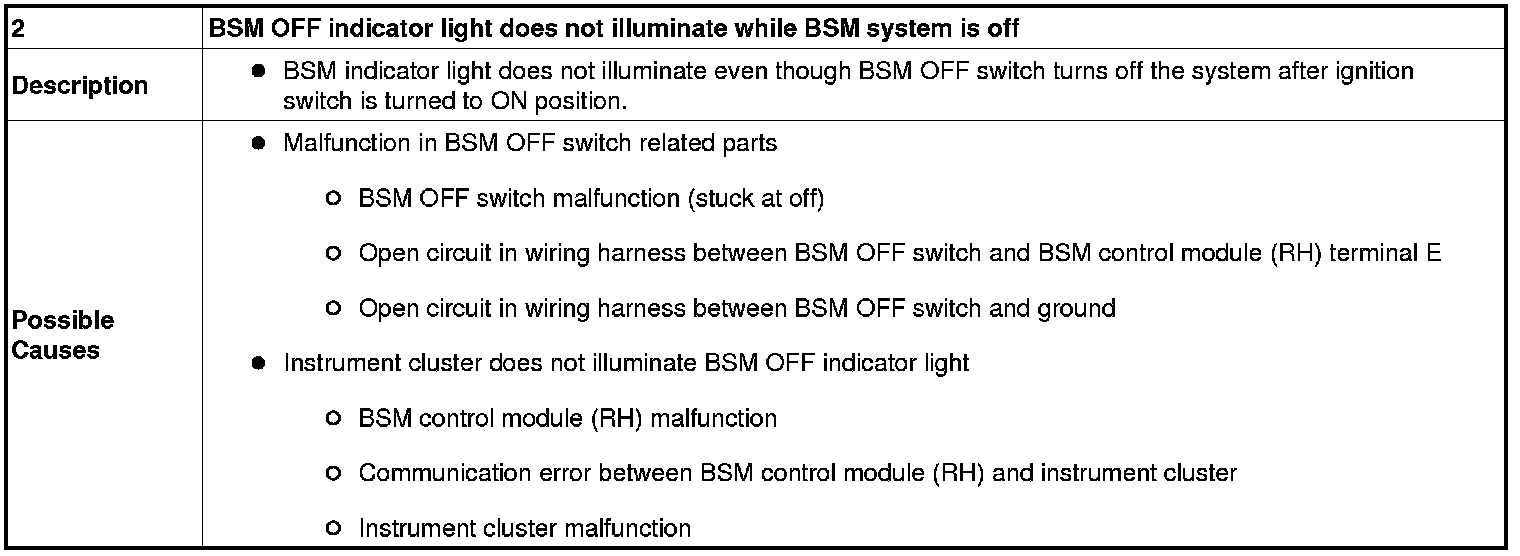

No. 2 BSM OFF Indicator Light Does Not Illuminate While BSM System Is OFF





NO.2 BSM OFF INDICATOR LIGHT DOES NOT ILLUMINATE WHILE BSM SYSTEM IS OFF [BLIND SPOT MONITORING (BSM)]

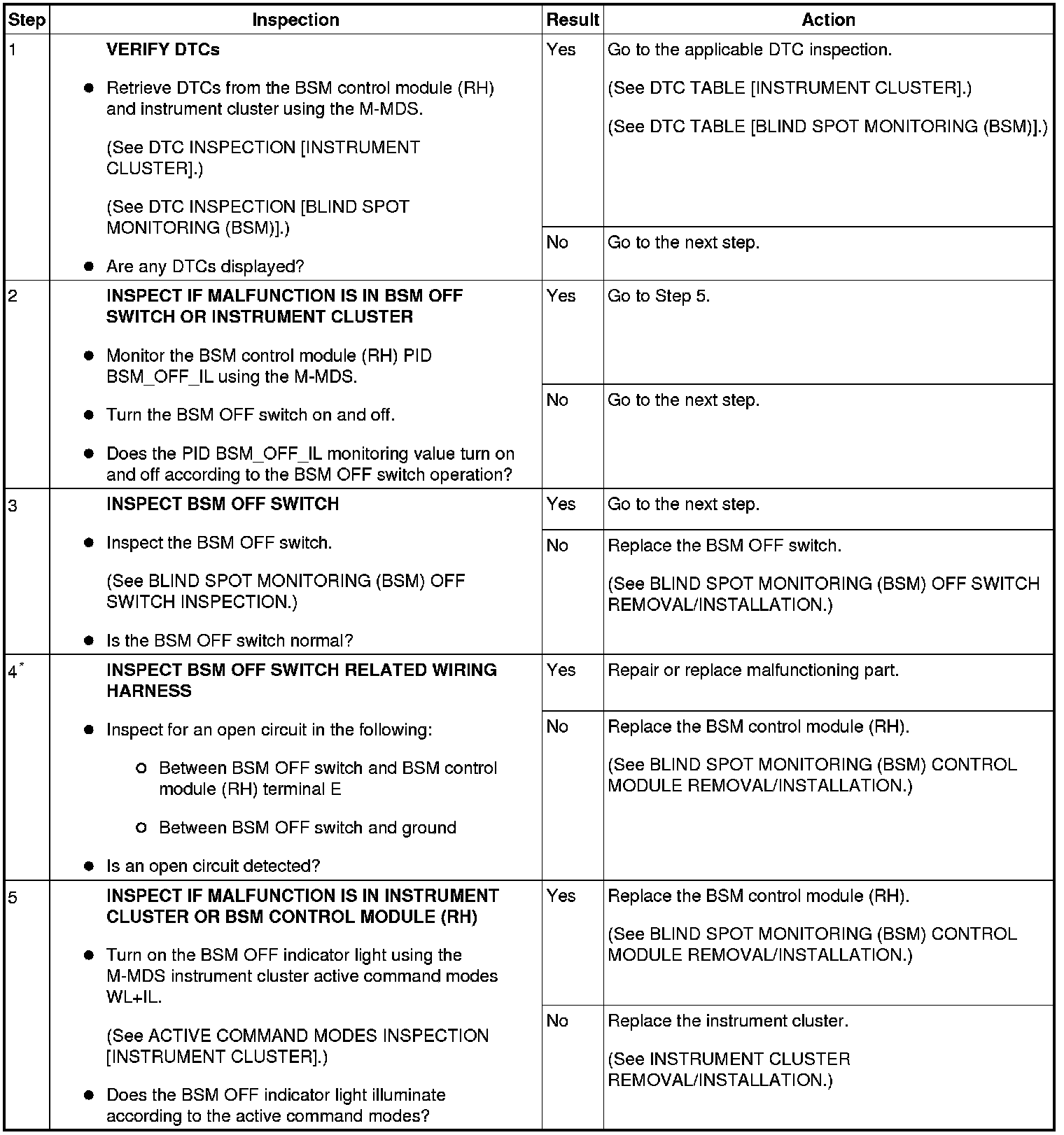

Diagnostic Procedure
