Home >> Mazda >> 2012 >> 3 L4-2.0L (MZR) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 1 BSM OFF Indicator Light Does Not Illuminate When The Ignition Is Switched To ON

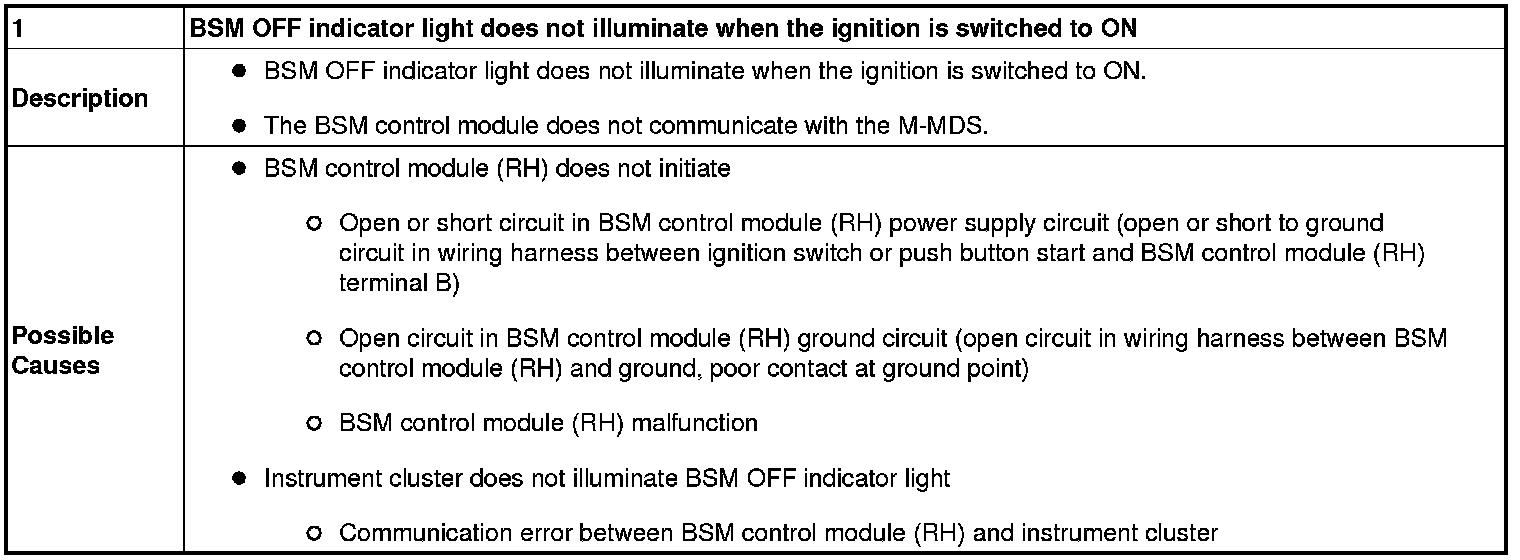

No. 1 BSM OFF Indicator Light Does Not Illuminate When The Ignition Is Switched To ON





NO.1 BSM OFF INDICATOR LIGHT DOES NOT ILLUMINATE WHEN THE IGNITION IS SWITCHED TO ON [BLIND SPOT MONITORING (BSM)]

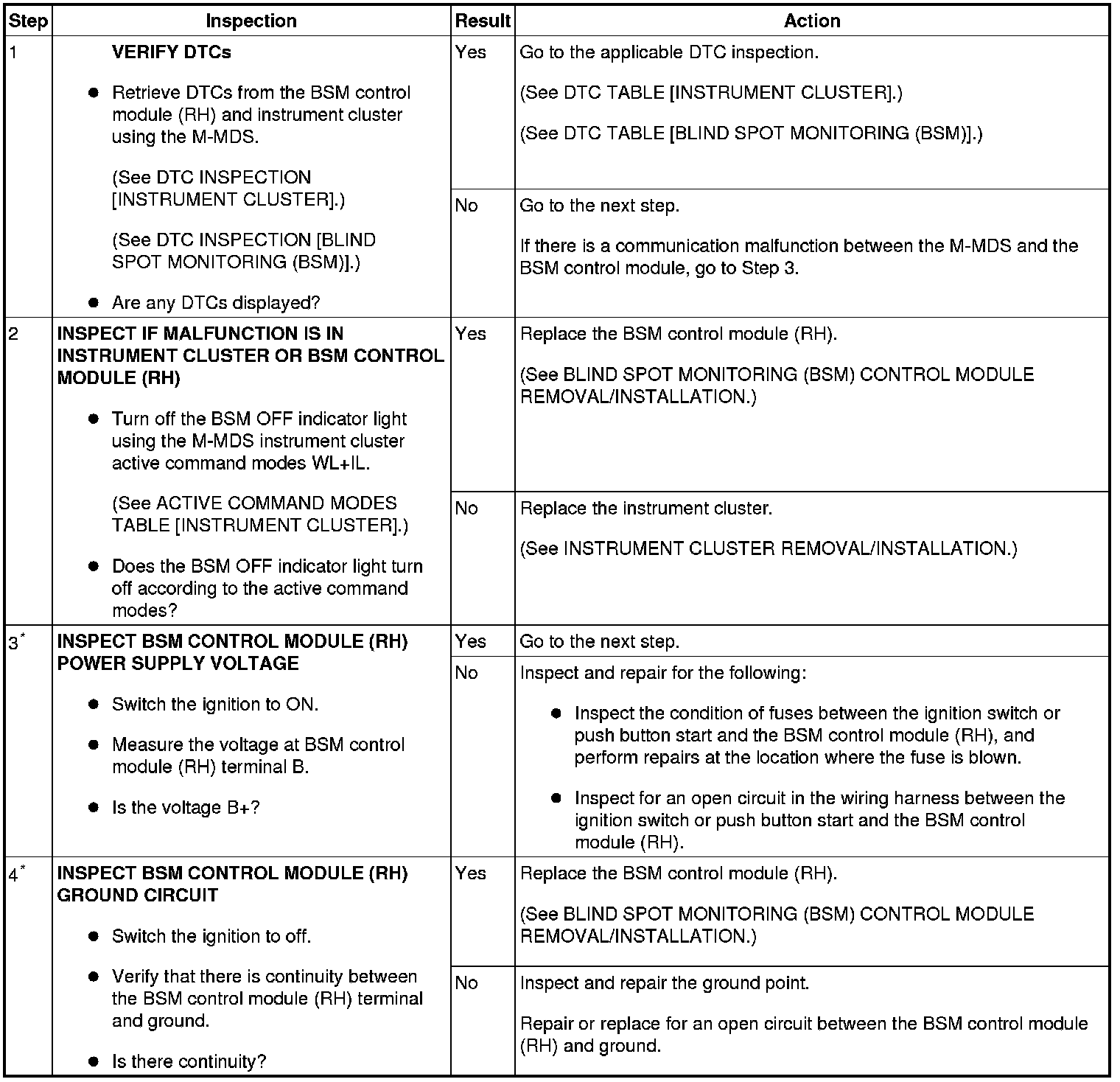

Diagnostic Procedure
