On-Board Diagnostic Wiring Diagram [Blind Spot Monitoring (BSM)]
On-Board Diagnostic Wiring Diagram [Blind Spot Monitoring (BSM)]

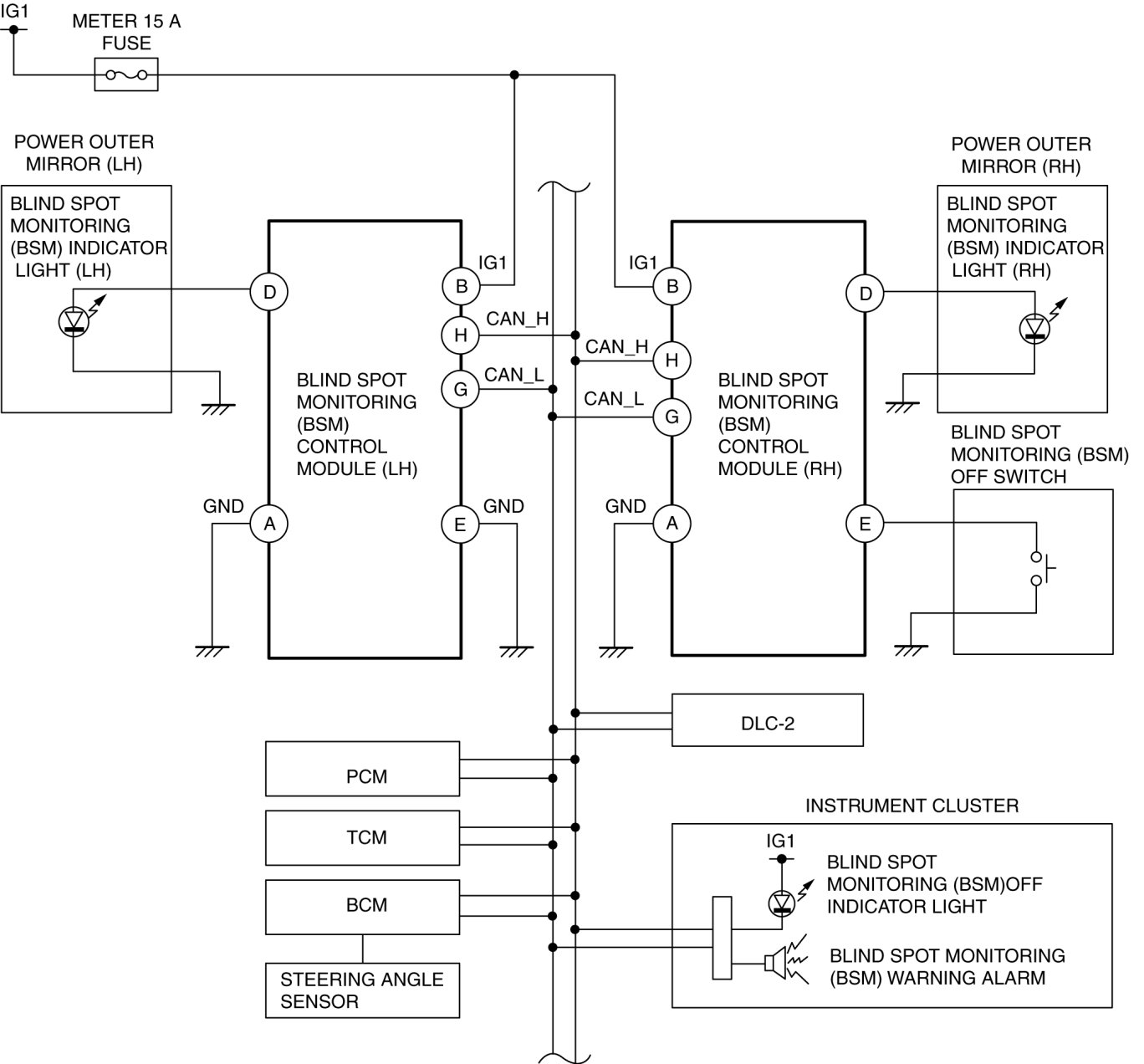

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [BLIND SPOT MONITORING (BSM)]
