Active Command Modes Table - Blind Spot Monitoring (BSM)





ACTIVE COMMAND MODES TABLE [BLIND SPOT MONITORING (BSM)]

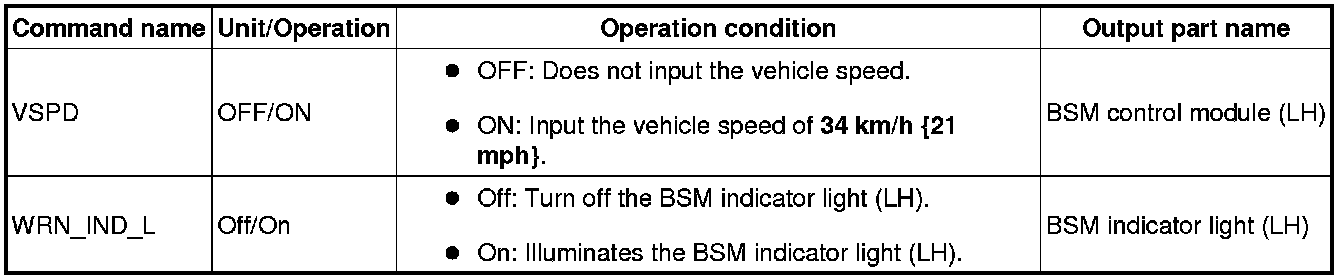

BSM Control Module (LH)

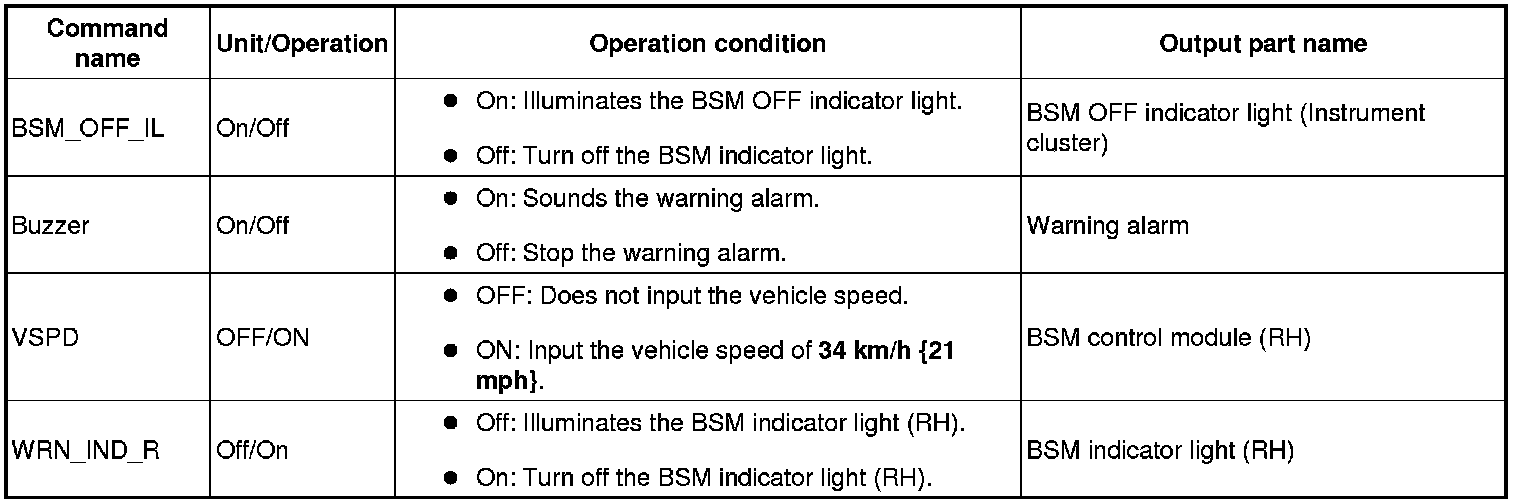

BSM Control Module (RH)
