Pinout Values and Diagnostic Parameters





PID/DATA MONITOR TABLE [BLIND SPOT MONITORING (BSM)]

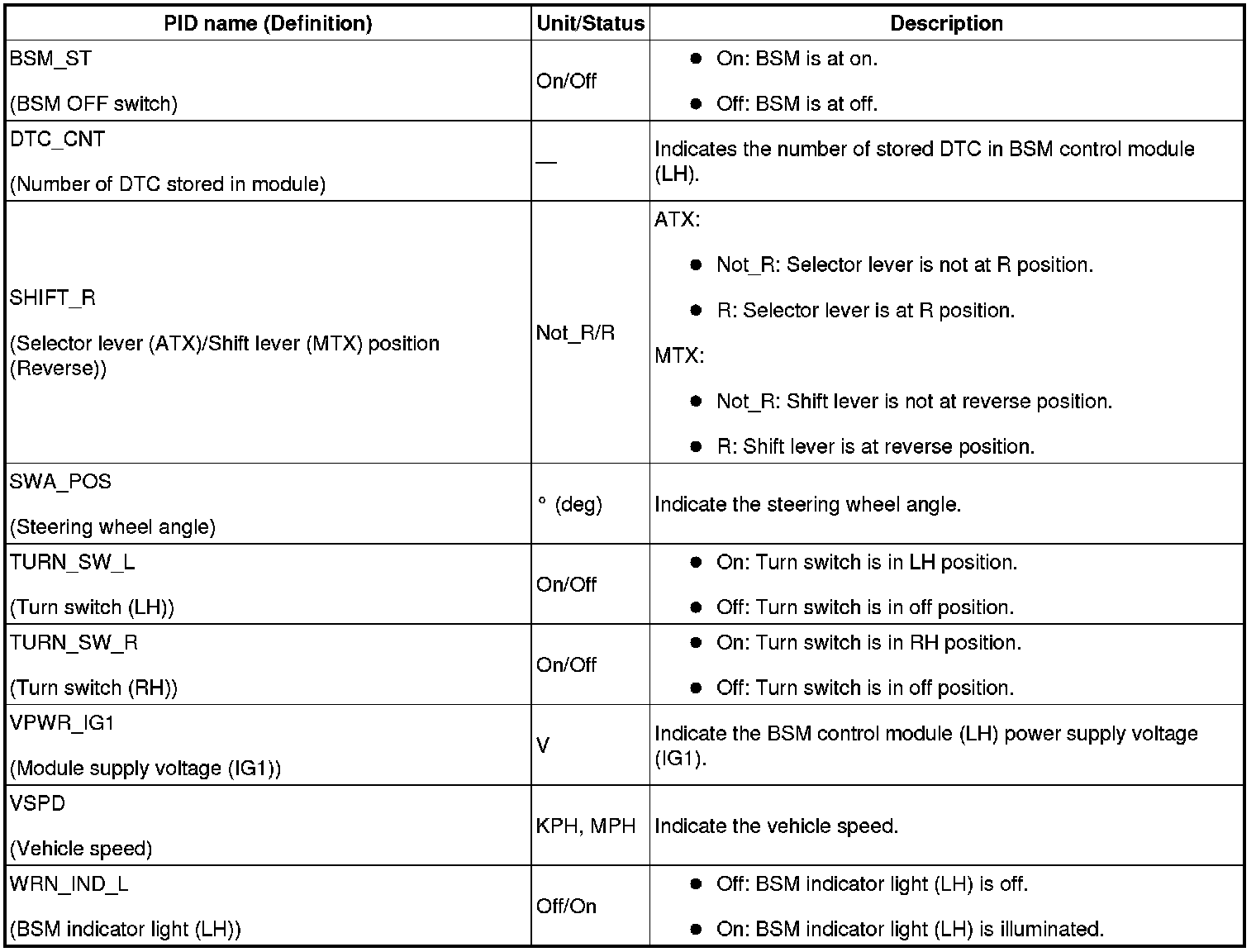

BSM Control Module (LH)
-: Not applicable

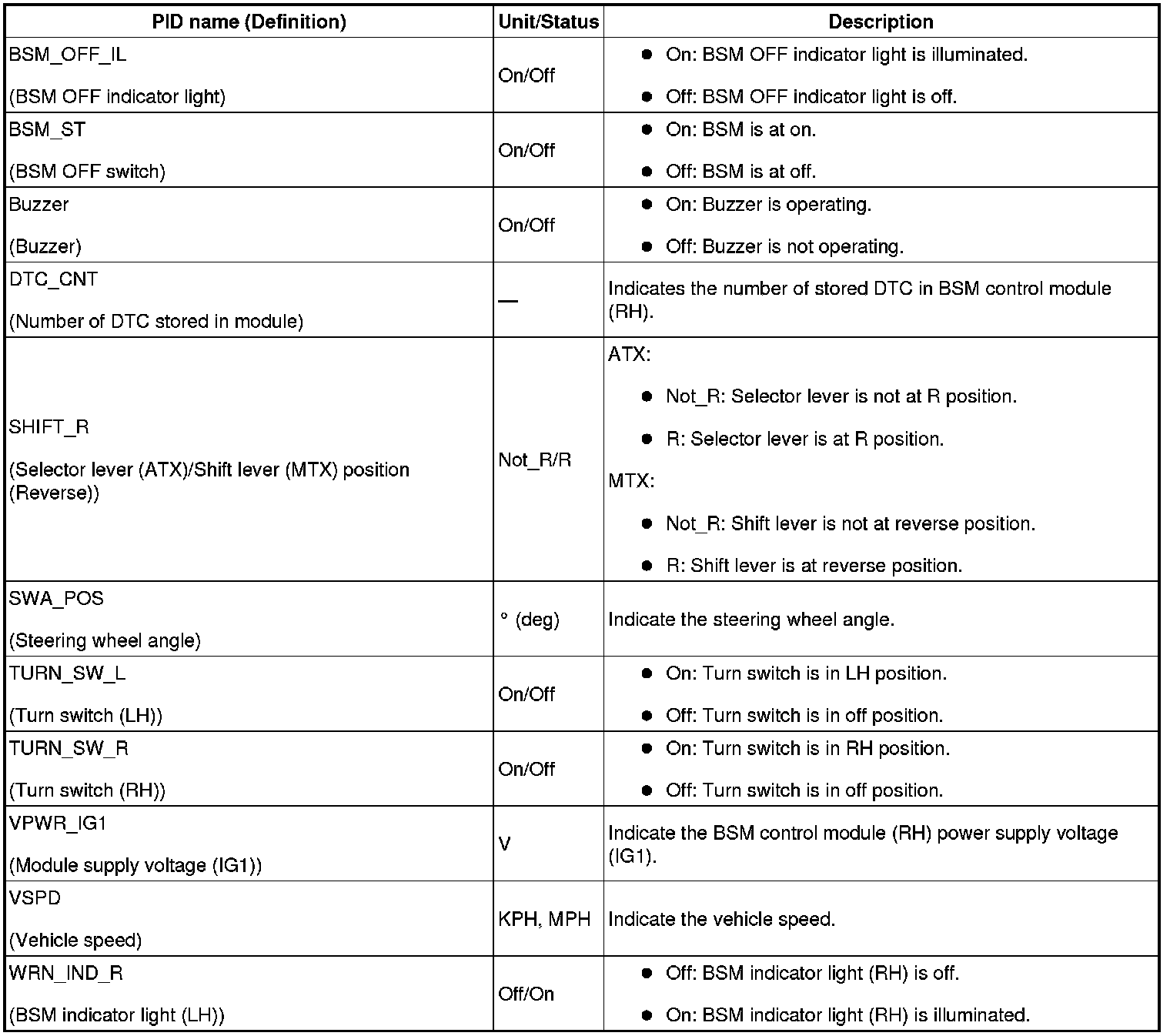

BSM Control Module (RH)
-: Not applicable
