No. 1 Hands-Free Telephone System Does Not Receive/Transmit Calls, Does Not Connect

No.1 HANDS-FREE TELEPHONE SYSTEM DOES NOT RECEIVE/TRANSMIT CALLS, DOES NOT CONNECT [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]

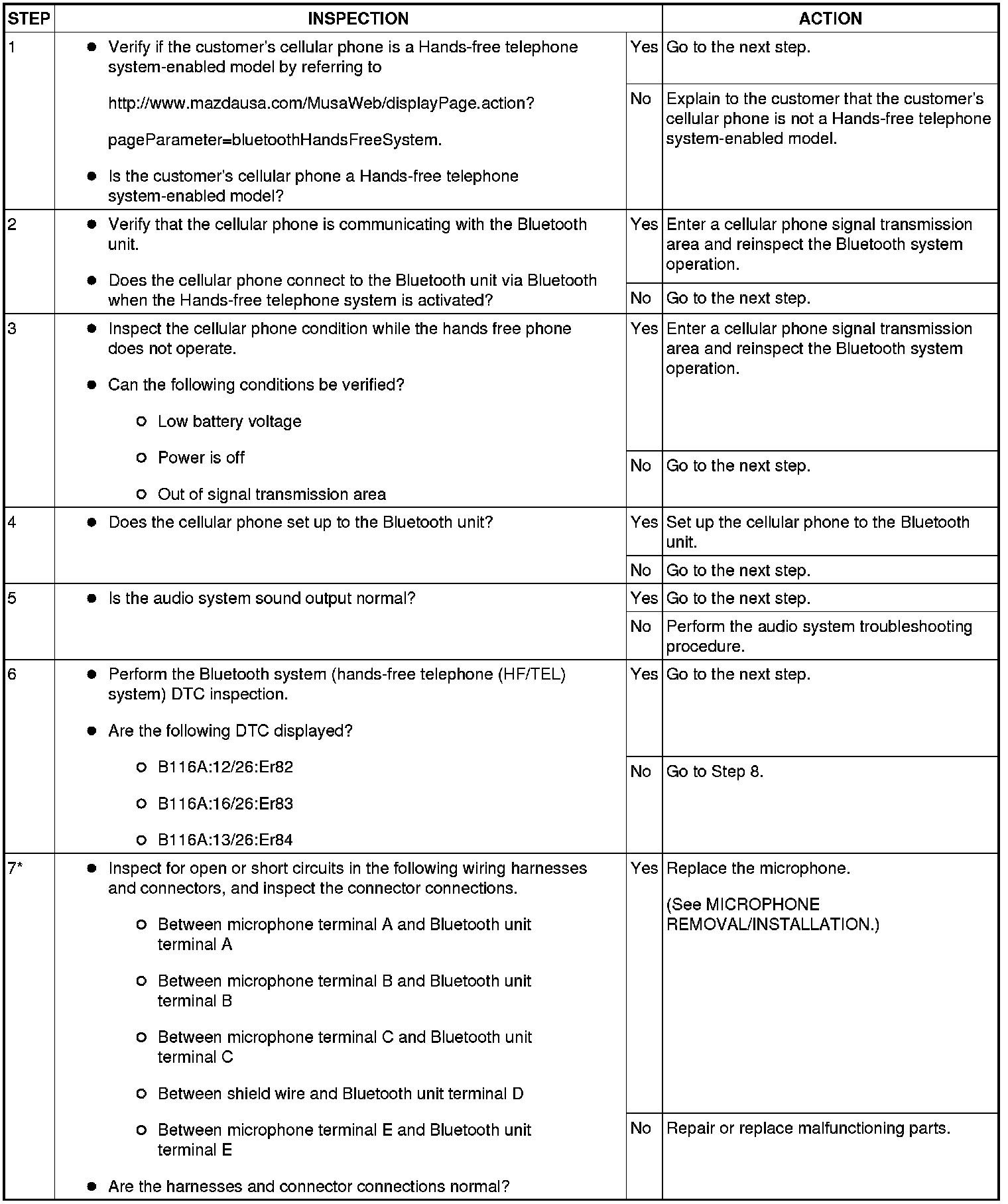

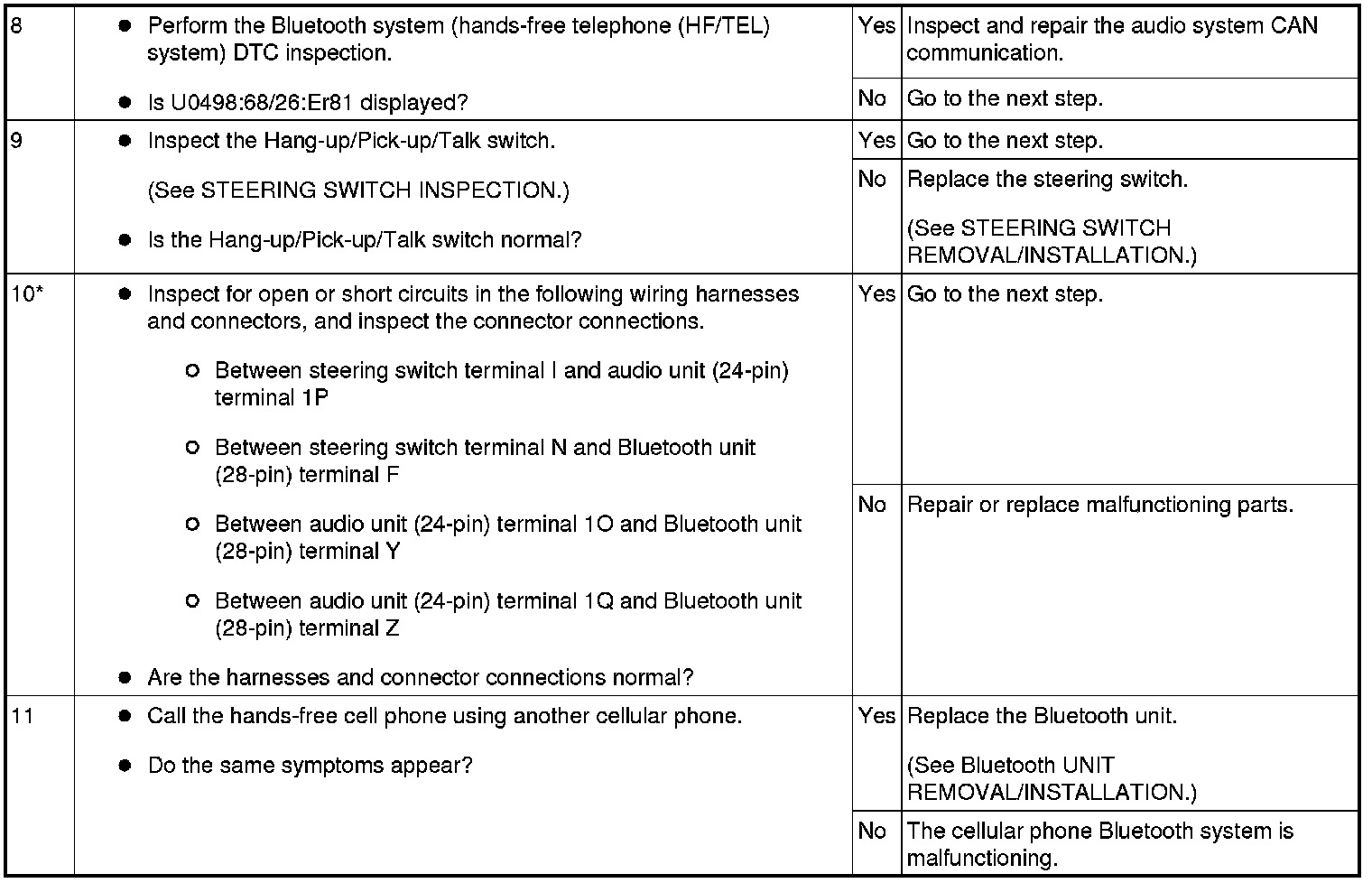

Diagnostic procedure

- When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunction. If there is a problem, verify that the connectors, terminals and wiring harness are connected correctly and undamaged.
