Cellular Phone: Service and Repair

Bluetooth UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Passenger-side front scuff plate Front Scuff Plate Removal/Installation

b. Passenger-side front side trim Front Side Trim Removal/Installation

c. Dashboard under cover Dashboard Under Cover Removal/Installation

d. Grove compartment Service and Repair

e. Passenger-side lower panel Lower Panel Removal/Installation

f. AFS control module (With AFS (adaptive front lighting system)) AFS (Adaptive Front Lighting System) Control Module Removal/Installation

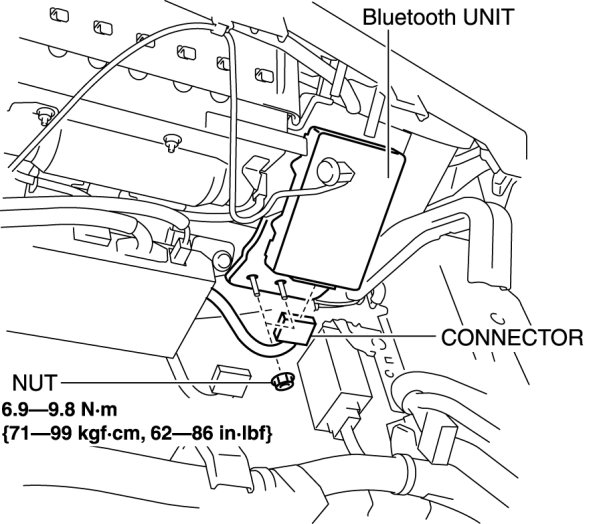

3. Remove the nuts. (Without AFS (adaptive front lighting system))






4. Disconnect the connector.

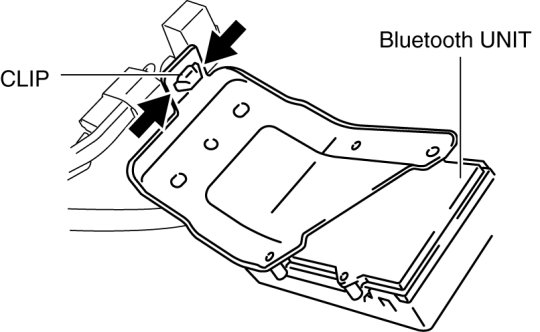

5. Detach the clip and set the wiring harness aside.






6. Remove the Bluetooth unit.

7. Install in the reverse order of removal.
