SIRIUS SATELLITE RADIO ANTENNA FEEDER INSPECTION

SIRIUS Satellite Radio Antenna Feeder No.1

NOTE:
- SIRIUS satellite radio antenna feeder No.1 is integrated with the dashboard wiring harness.

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Passenger-side front scuff plate Front Scuff Plate Removal/Installation

b. Passenger-side front side trim Front Side Trim Removal/Installation

c. Dashboard under cover Dashboard Under Cover Removal/Installation

d. Grove compartment Service and Repair

e. Passenger-side lower panel Lower Panel Removal/Installation

f. A-pillar trim (RH) A-Pillar Trim Removal/Installation

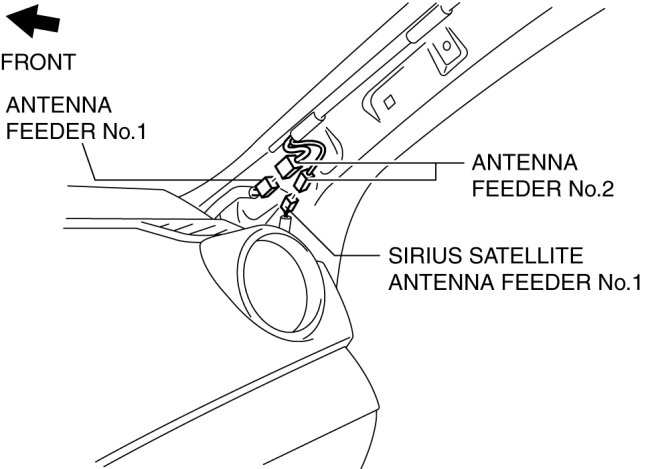

3. Disconnect the SIRIUS satellite radio antenna feeder connector. Service and Repair

4. Disconnect the antenna feeder No.2.

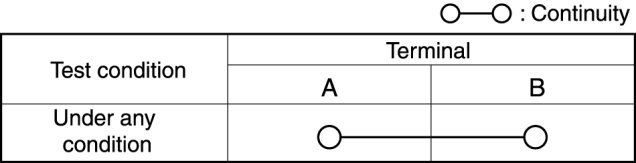

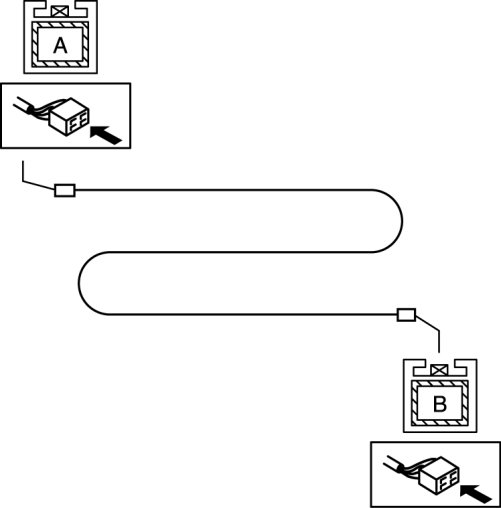

5. Verify that the continuity between SIRIUS satellite radio antenna feeder No.1 terminals is as indicated in the table.






- If not as indicated in the table, replace dashboard wiring harness.





SIRIUS Satellite Radio Antenna Feeder No.2

NOTE:
- SIRIUS satellite radio antenna feeder No.2 is integrated with the antenna feeder No.2.

1. Refer to Antenna Feeder No. 2 Inspection.

SIRIUS Satellite Radio Antenna Feeder No.3 (5HB)

NOTE:
- SIRIUS satellite radio antenna feeder No.3 is integrated with the antenna feeder No.3.

1. Refer to Antenna Feeder No. 3 Inspection.
