Antenna Feeder No. 1 Inspection

ANTENNA FEEDER NO.1 INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Center panel Center Panel Removal/Installation

b. Audio unit Audio Unit Removal/Installation

c. A-pillar trim (RH) A-Pillar Trim Removal/Installation

3. Disconnect antenna feeder No.2.

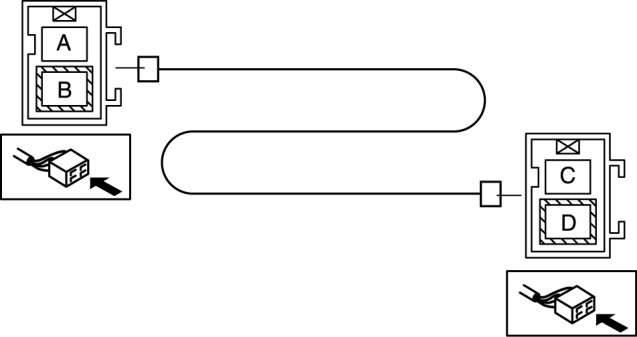

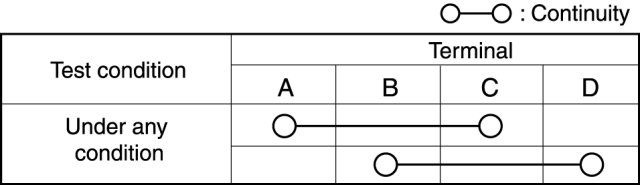

4. Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.






- If not as indicated in the table, replace antenna feeder No.1.
