Antenna Feeder No. 1 Removal/Installation

ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the following parts:
a. Front scuff plate Front Scuff Plate Removal/Installation

b. Front side trim Front Side Trim Removal/Installation

c. Upper panel Upper Panel Removal/Installation

d. Shift lever knob (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G35M-R] Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

e. Selector lever knob (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

f. Shift panel Shift Panel Removal/Installation

g. Side wall Side Wall Removal/Installation

h. Console Console Removal/Installation

i. Shift lever component (MTX) Manual Transaxle Shift Mechanism Removal/Installation [G35M-R] Manual Transaxle Shift Mechanism Removal/Installation [G66M-R]

j. Selector lever component (ATX) Automatic Transaxle Shift Mechanism Removal/Installation

k. Dashboard under cover Dashboard Under Cover Removal/Installation

l. Glove compartment Service and Repair

m. Hood release lever Service and Repair

n. Lower panel Lower Panel Removal/Installation

o. Center panel Center Panel Removal/Installation

p. Audio unit Audio Unit Removal/Installation

q. Climate control unit Full-Auto Air Conditioner Manual Air Conditioner

r. A-pillar trim (RH) A-Pillar Trim Removal/Installation

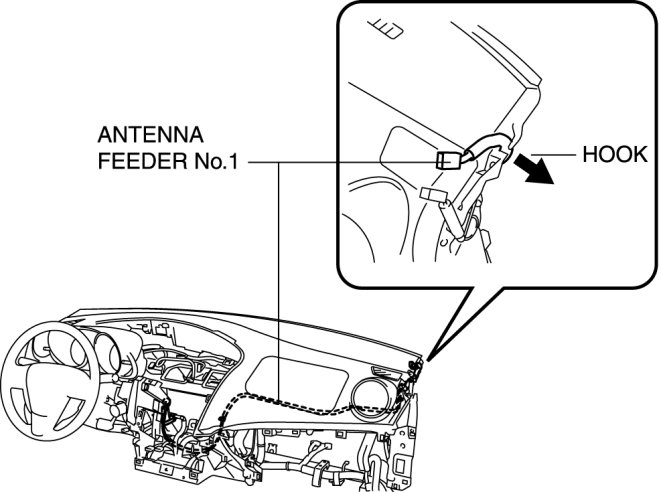

3. Partially peel back the hook.

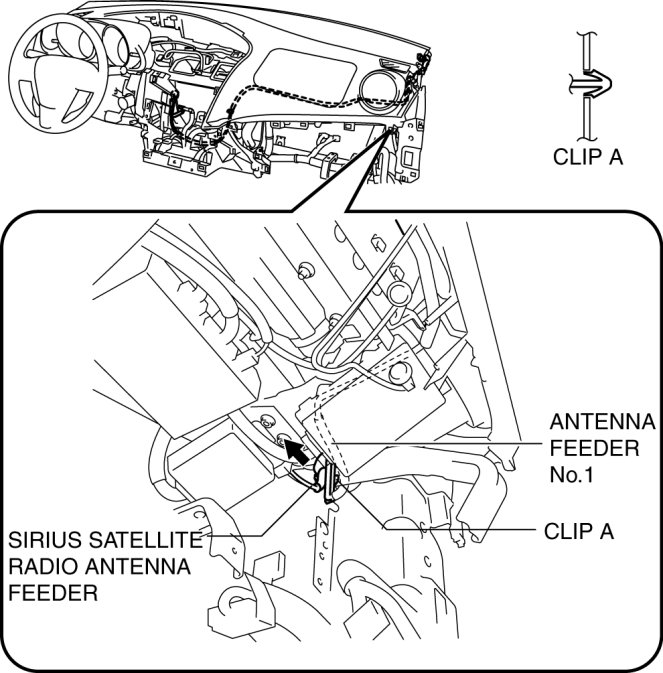

4. Partially peel back the SIRIUS satellite radio antenna feeder.






5. Remove the clip A.

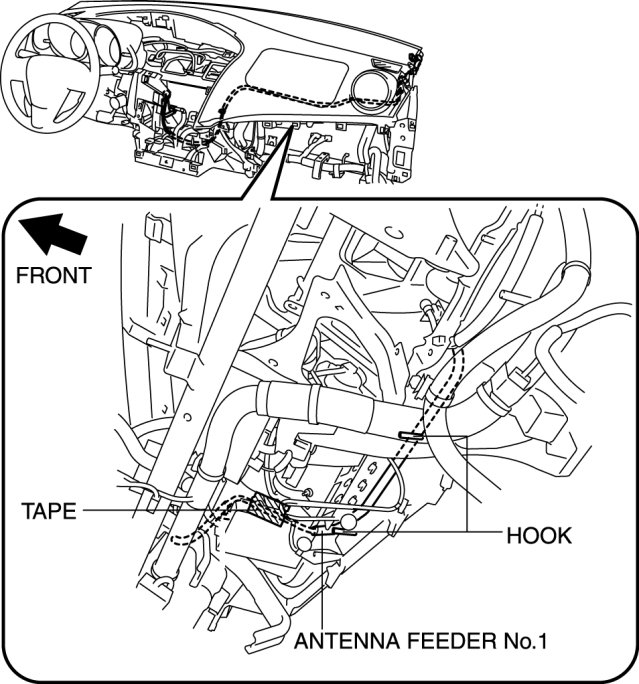

6. Peel off the tape.






7. Partially peel back the hook.

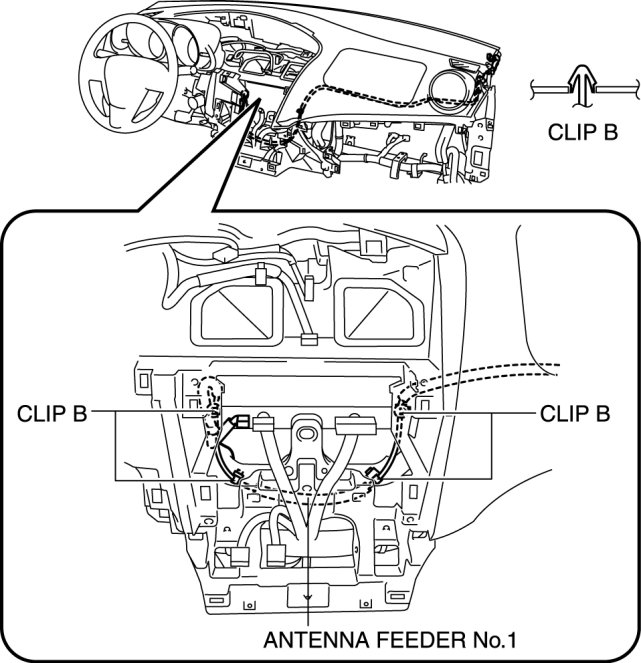

8. Remove the clips B.






9. Remove the antenna feeder No.1.

10. Install in the reverse order of removal.
