Instrument Cluster





DTC U3003:16 [INSTRUMENT CLUSTER]

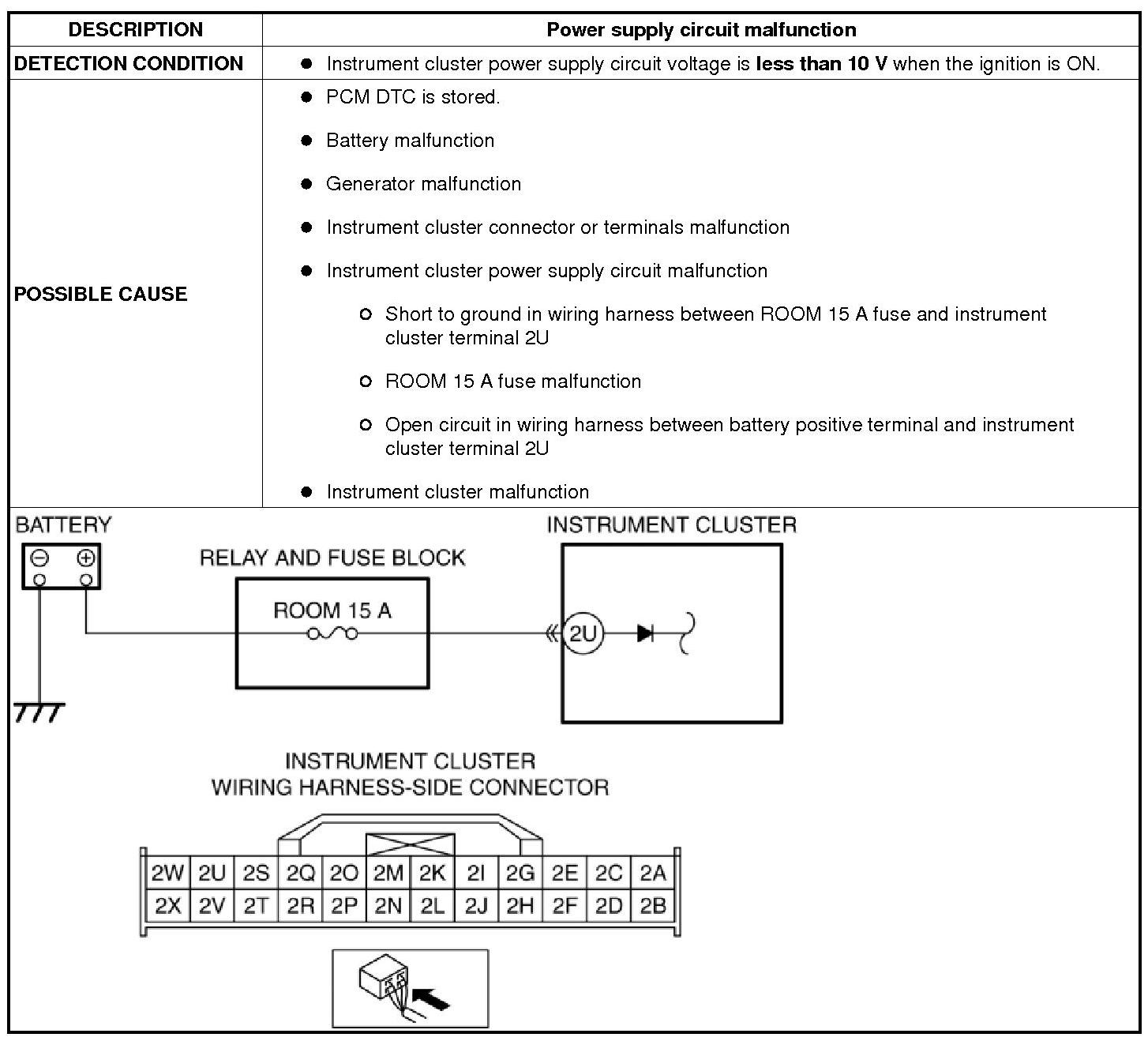

MZR 2.0, MZR 2.5, MZR 2.3 DISI Turbo

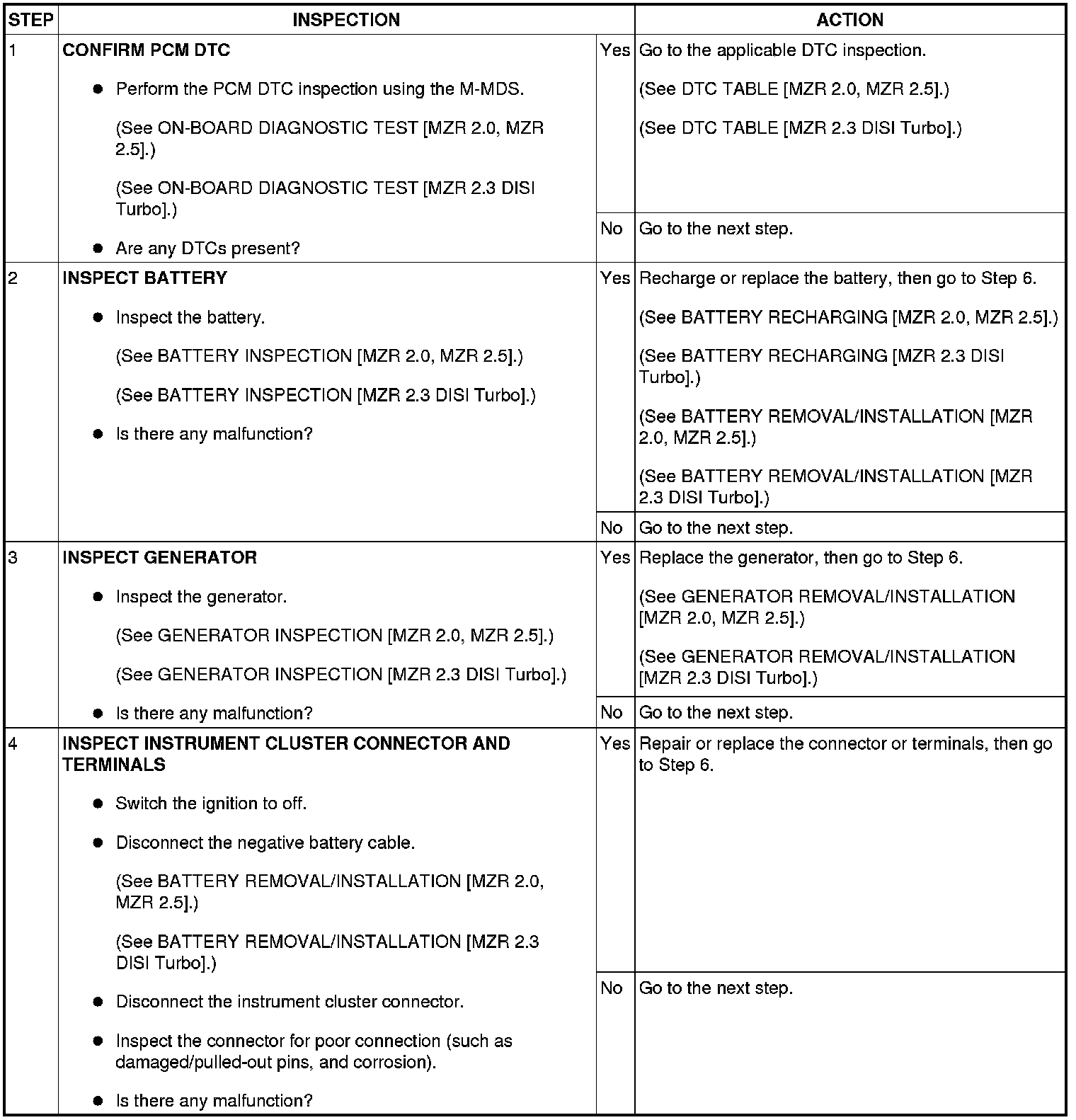

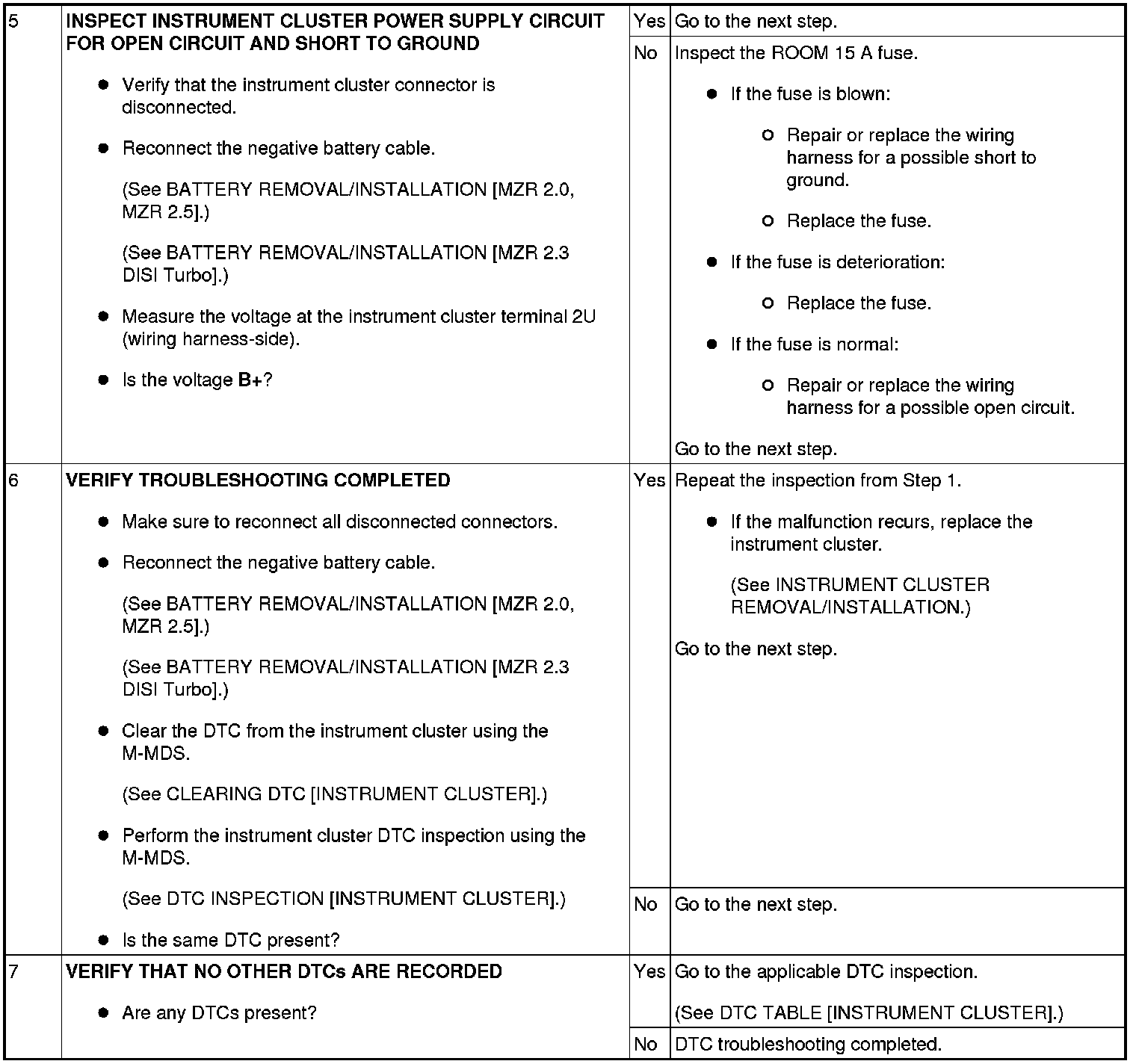

Diagnostic Procedure

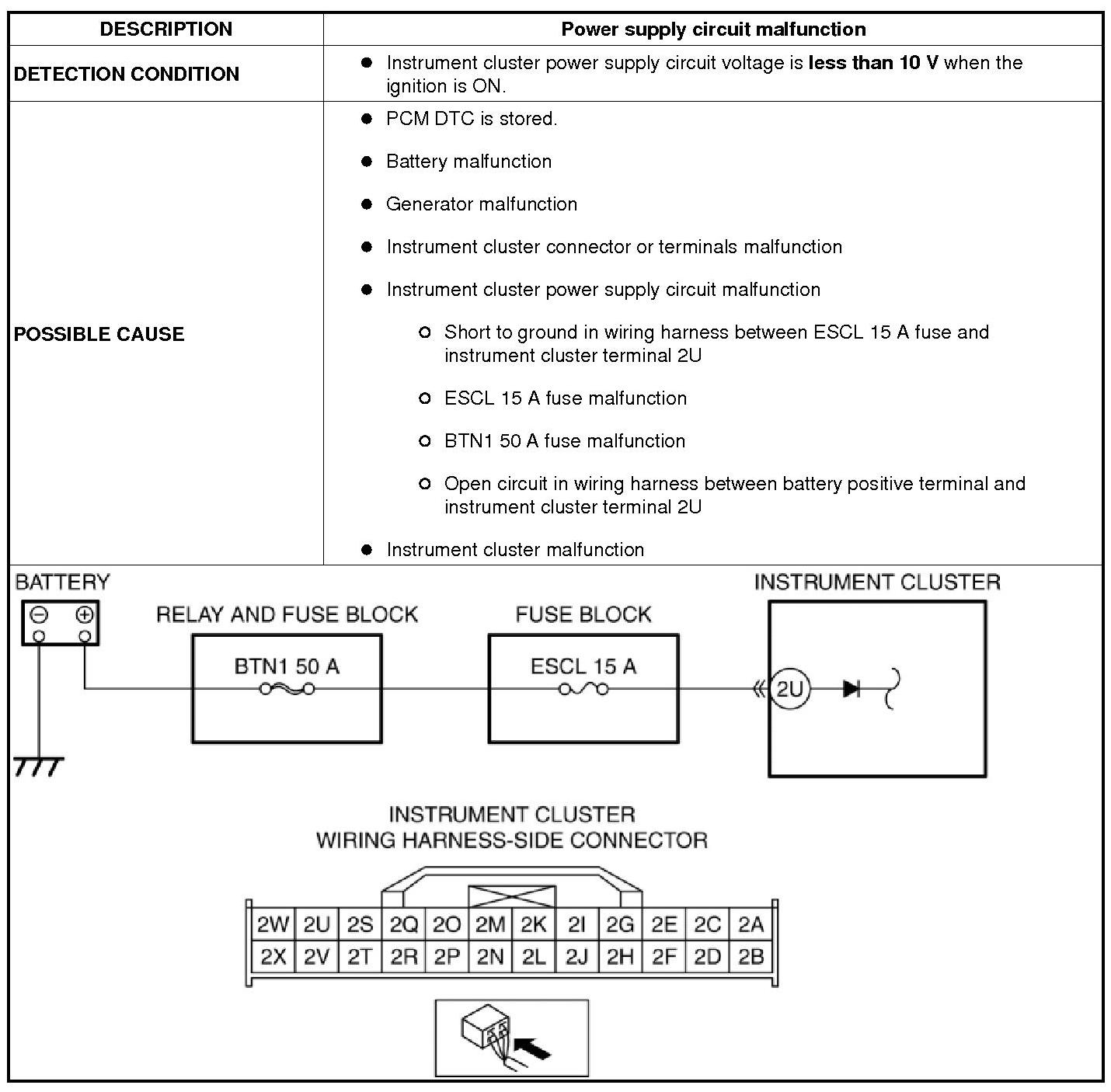

SKYACTIV-G 2.0

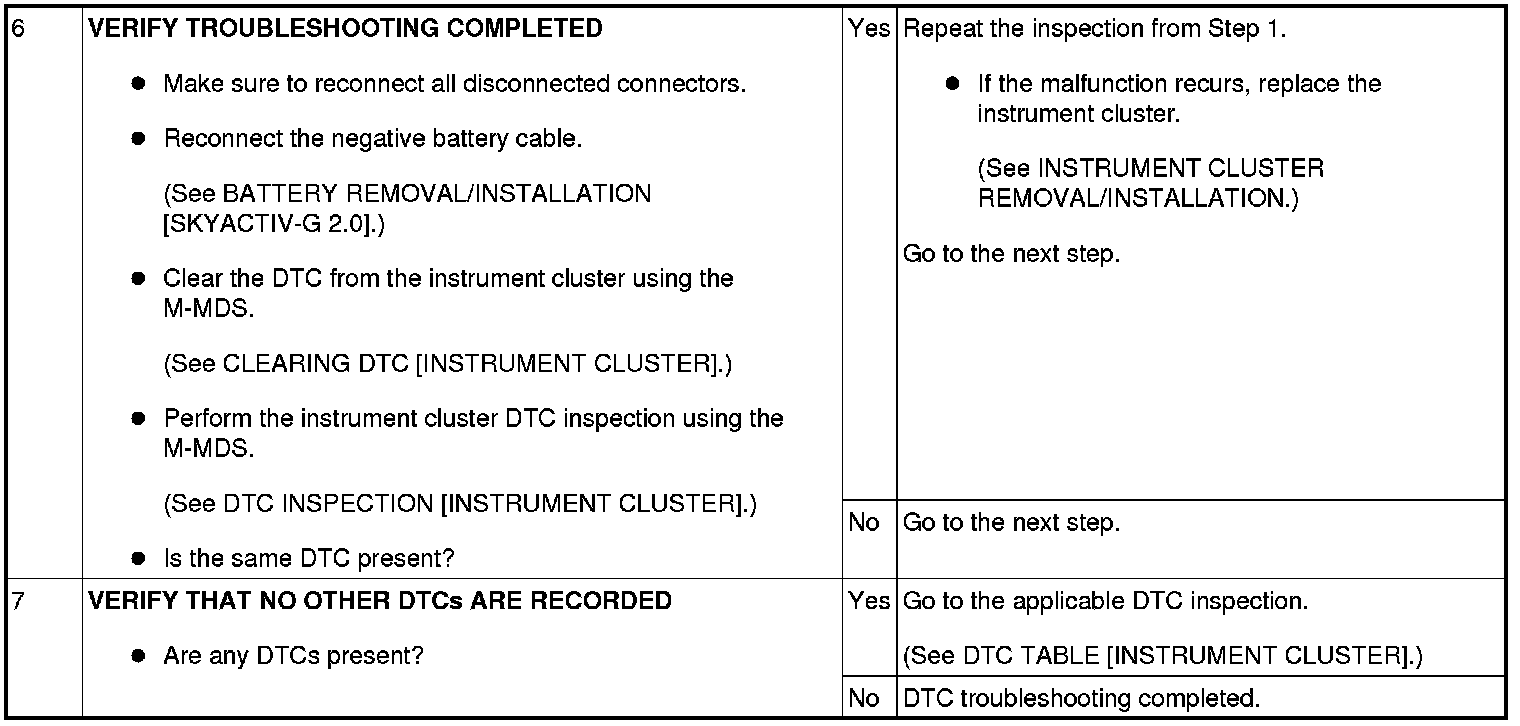

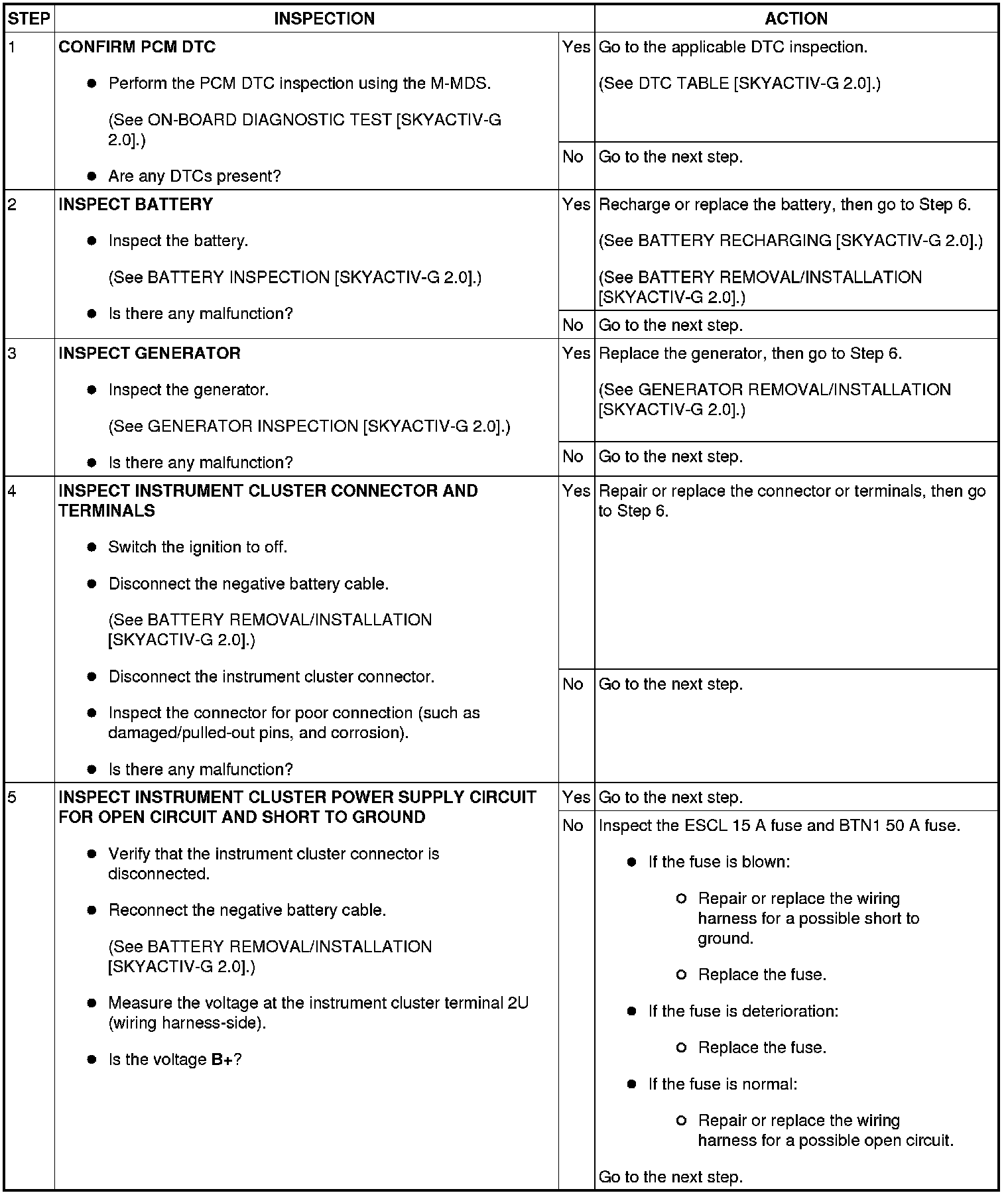

Diagnostic Procedure
